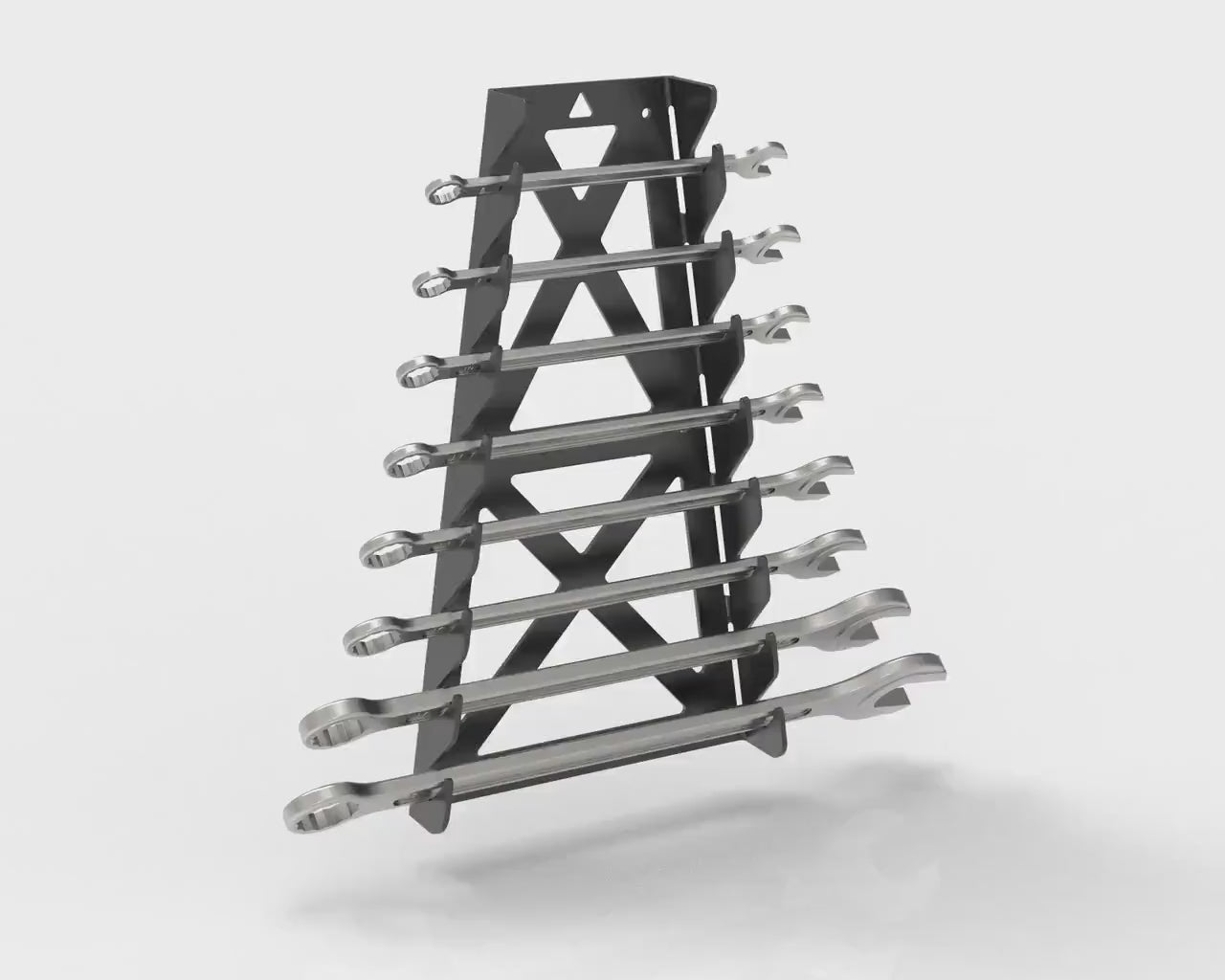

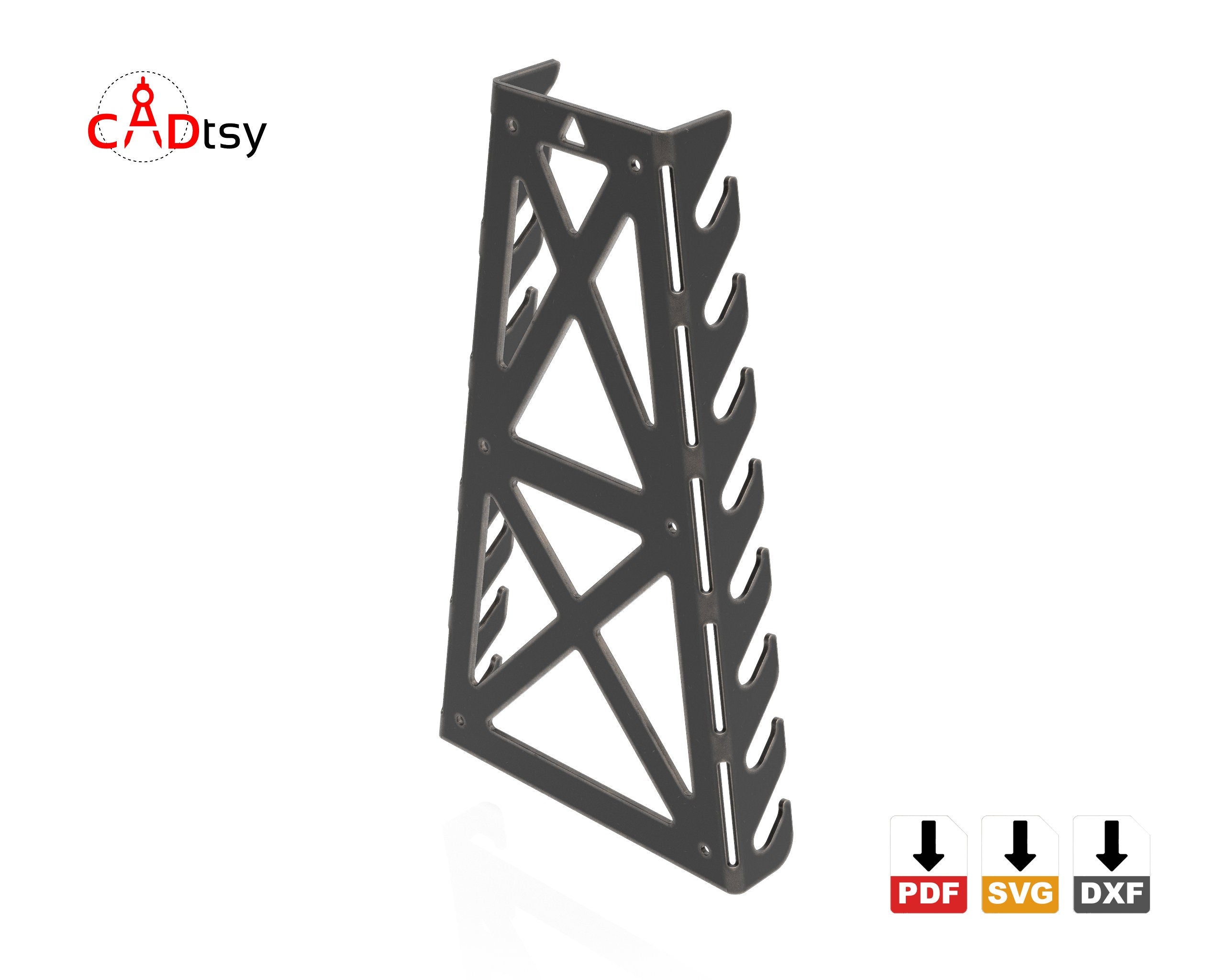

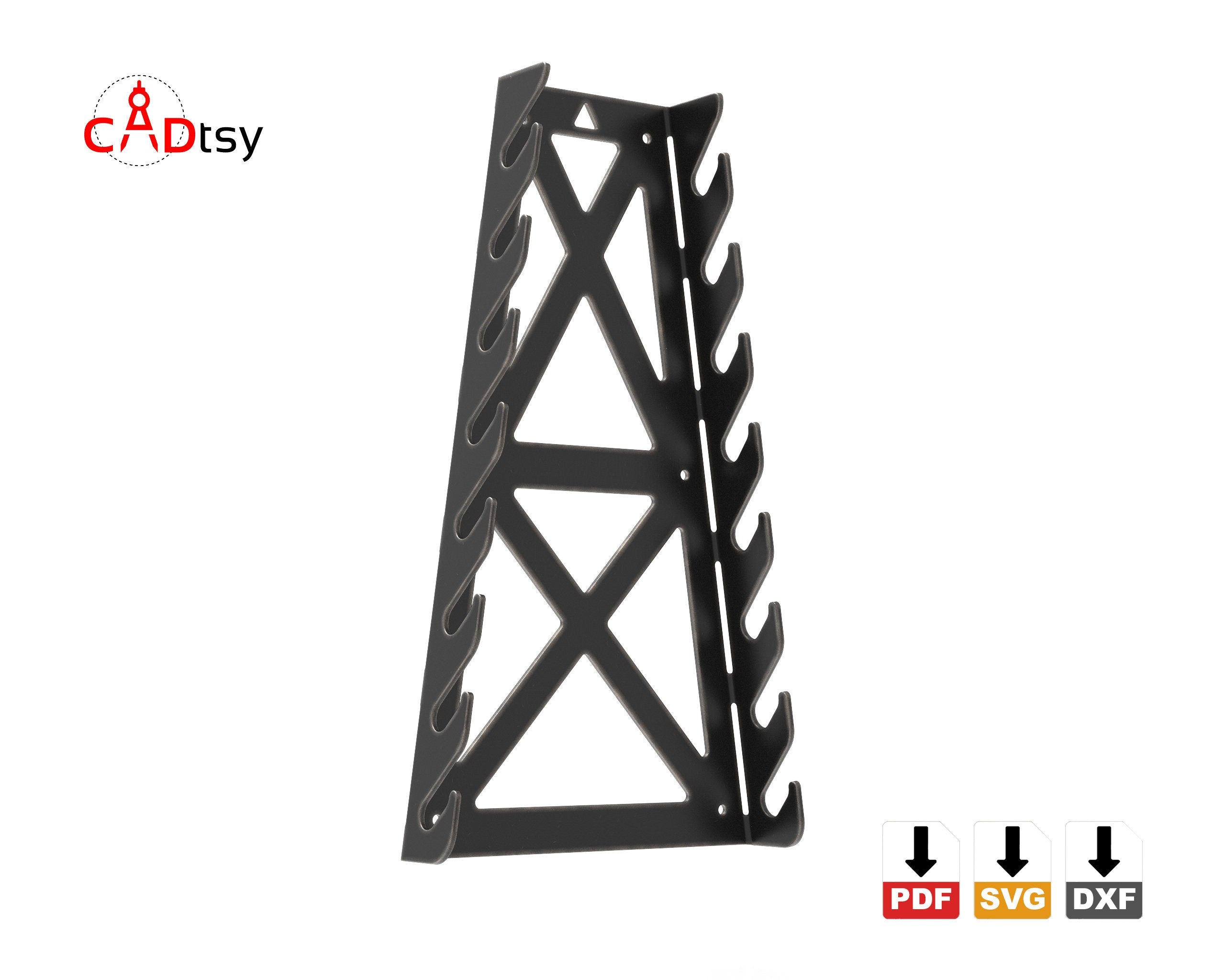

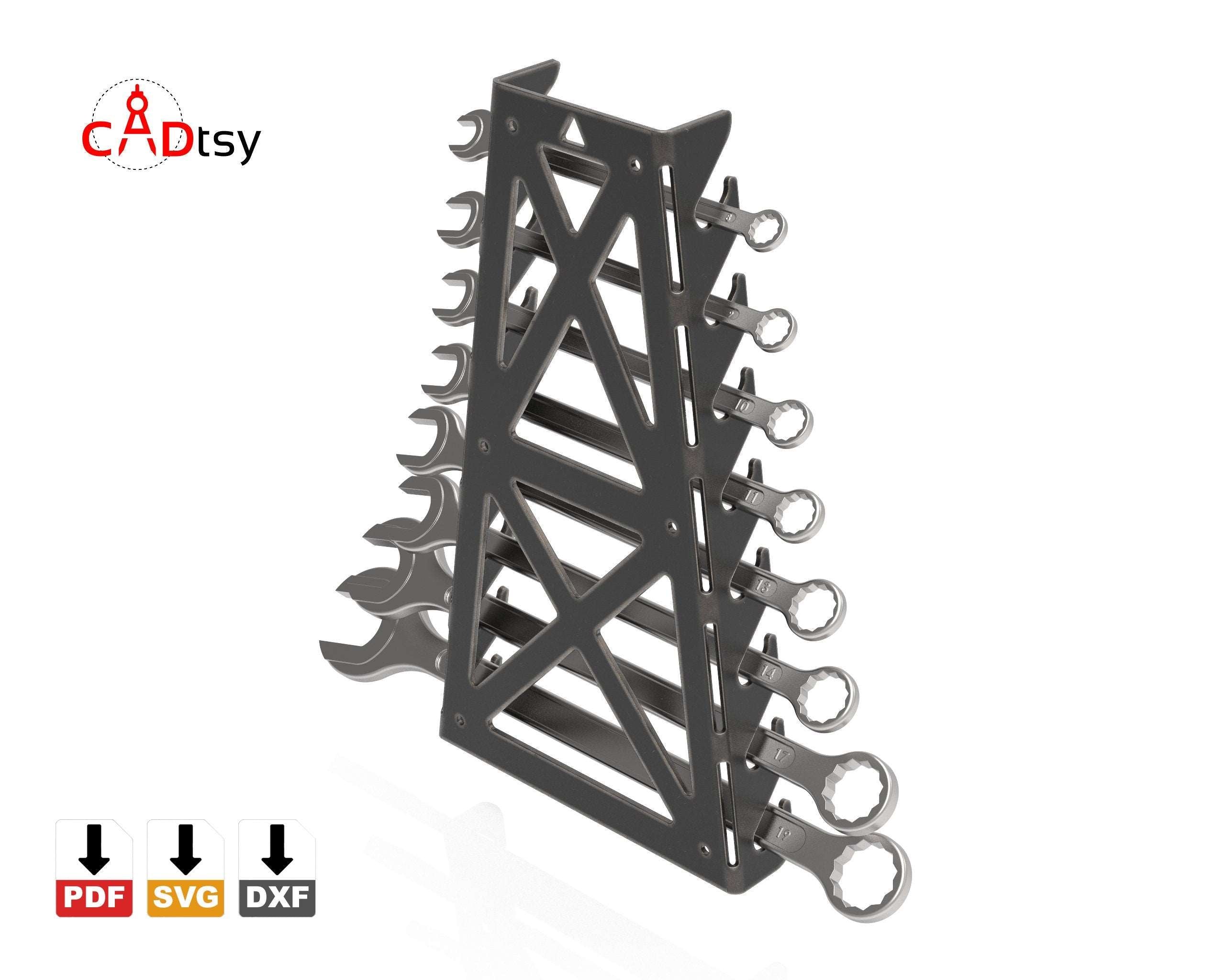

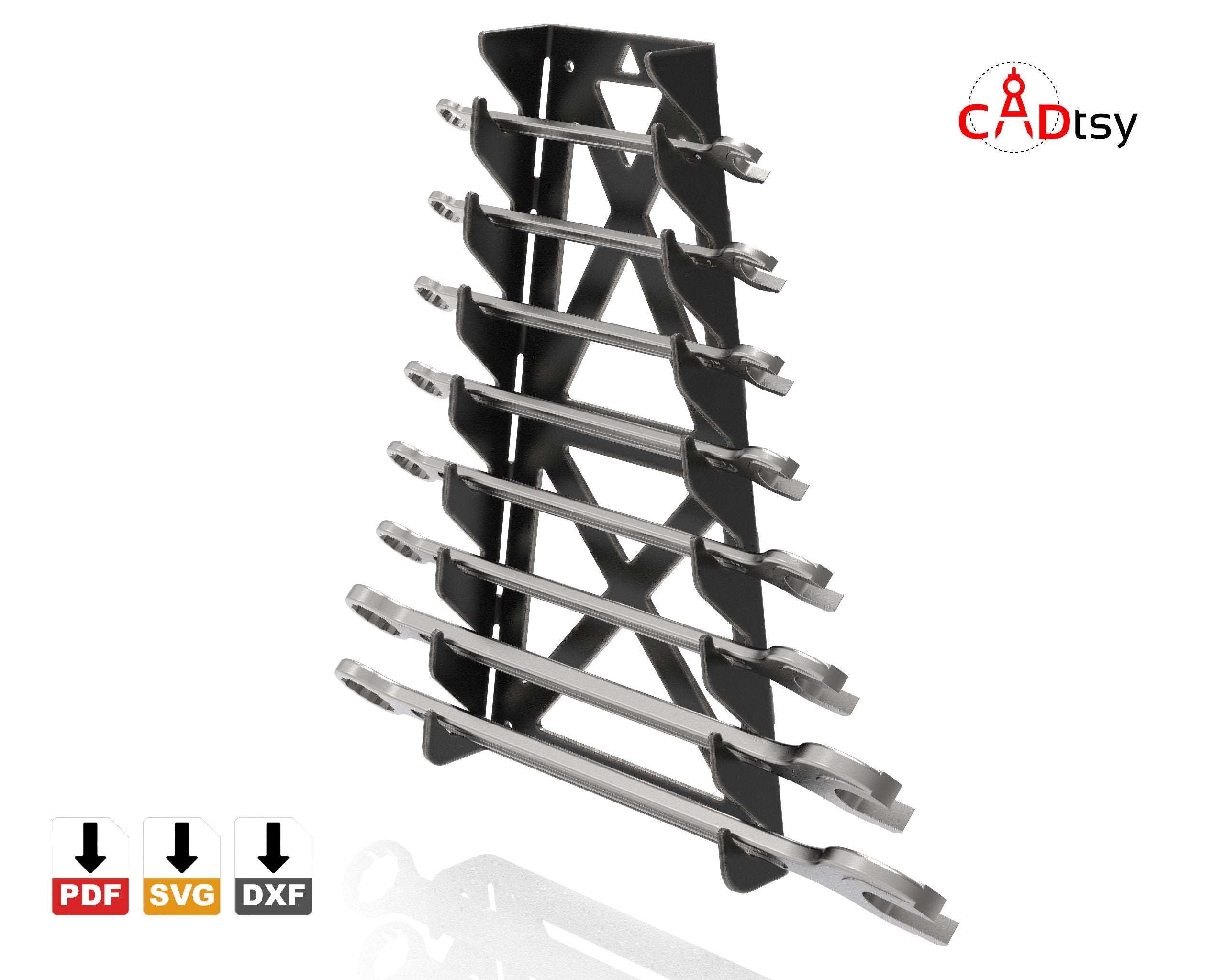

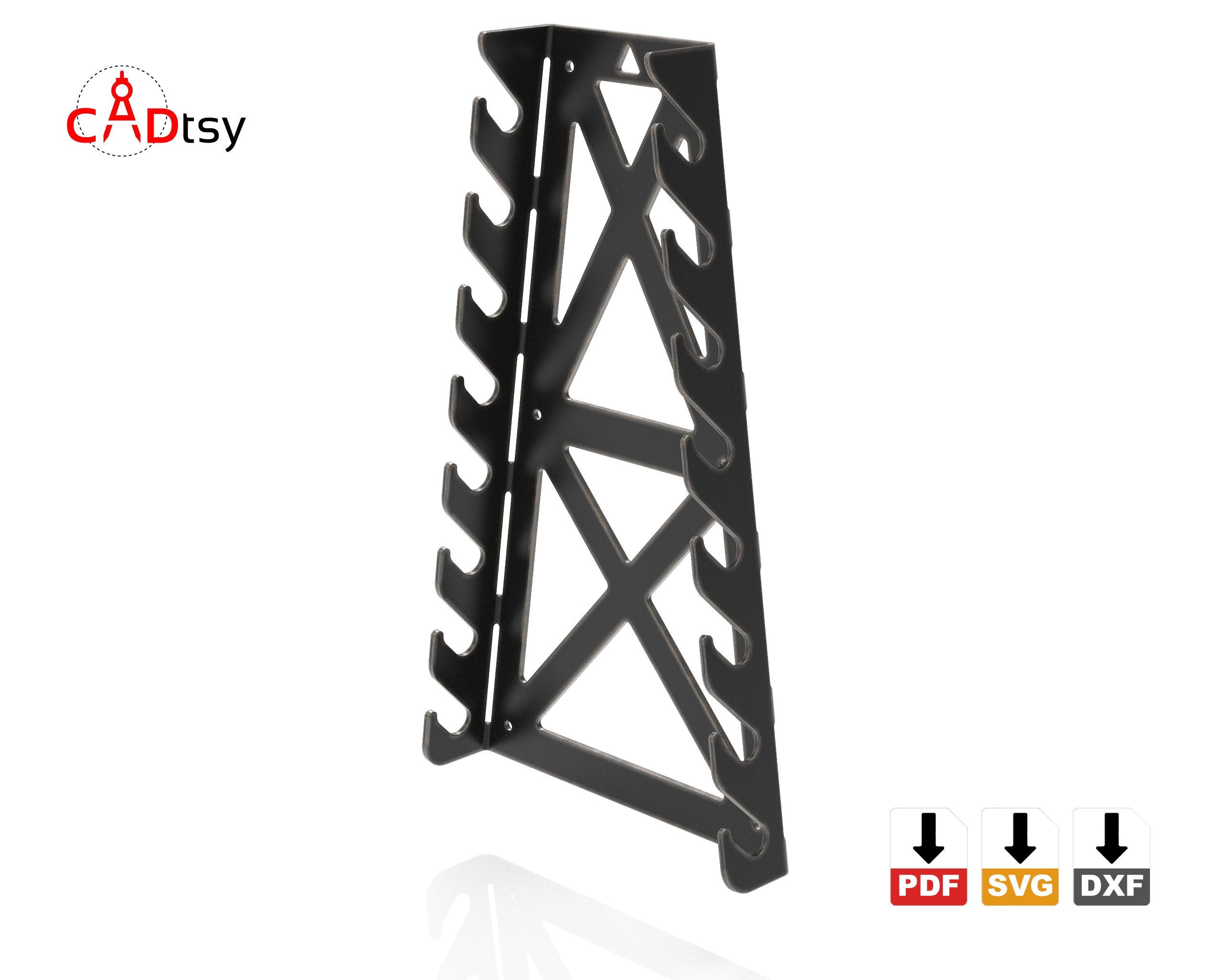

Wrench Holder DXF for CNC Plasma Cutting
Streamline your tool storage with our premium wrench holder DXF file. This digital product provides the precise, ready-to-use plans you need to craft a durable wall spanner rack for your garage, workshop, or toolbox.
Stop wasting time searching for the right size wrench. An organized set of tools improves your workflow and protects your investment. Therefore, this CNC wrench organizer is an essential project. It keeps your tools instantly accessible and neatly displayed. Consequently, you can work more efficiently and maintain a professional workspace.
We designed this plan for maximum space utilization and easy access to your tools. In other words, it combines practicality with durability, making it a must-have for any serious fabricator or DIY enthusiast.
We have engineered every aspect of this wrench holder DXF file for a flawless result from your CNC machine.
Final Assembled Dimensions: Height: 9.8" (250 mm), Width: 5.6" (141 mm), Depth: 1.2" (30 mm).
Recommended Materials: This project is ideal for 13 Gauge (2.5 mm), 14 Gauge (2.0 mm), or 16 Gauge (1.6 mm) sheet metal.
Required Operations: In addition, this project requires CNC cutting (Plasma or Laser) and simple sheet metal bending using the pre-cut slots.
Included File Formats: Finally, your download includes DXF, SVG, and PDF files for maximum software compatibility.
Download your wrench holder DXF file today. Start creating the high-quality, custom workshop organizer your tools deserve with CADtsy.
• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.
Commercial Use: These DXF plans are for personal projects or small business ventures (physical items only).
Intellectual Property: Modifying, reselling, or distributing the digital plasma dxf files is strictly prohibited. All media is protected by copyright. Unauthorized digital resale or redistribution is illegal and may result in legal action.
• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
