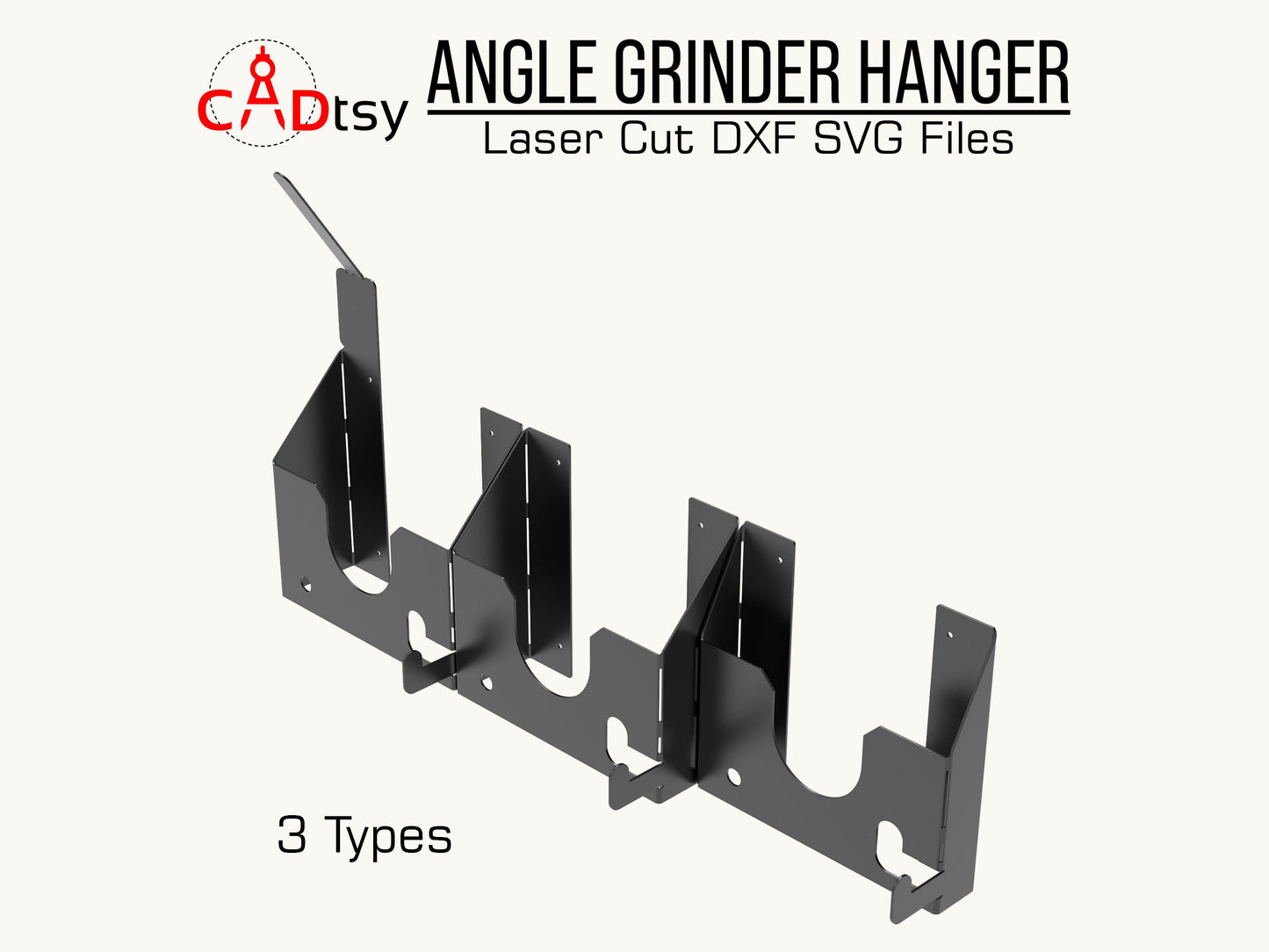

Three angle grinder hanger designs shown together

Angle Grinder Hanger DXF Files (3 Designs)

$7.08 USD
$7.08 USD $11.47 USD
Skip to product information
Three angle grinder hanger designs shown together
Angle Grinder Hanger DXF Files (3 Designs)

Angle Grinder Hanger DXF Files (3 Designs)

$7.08 USD
$7.08 USD $11.47 USD
Taxes included. Shipping calculated at checkout.

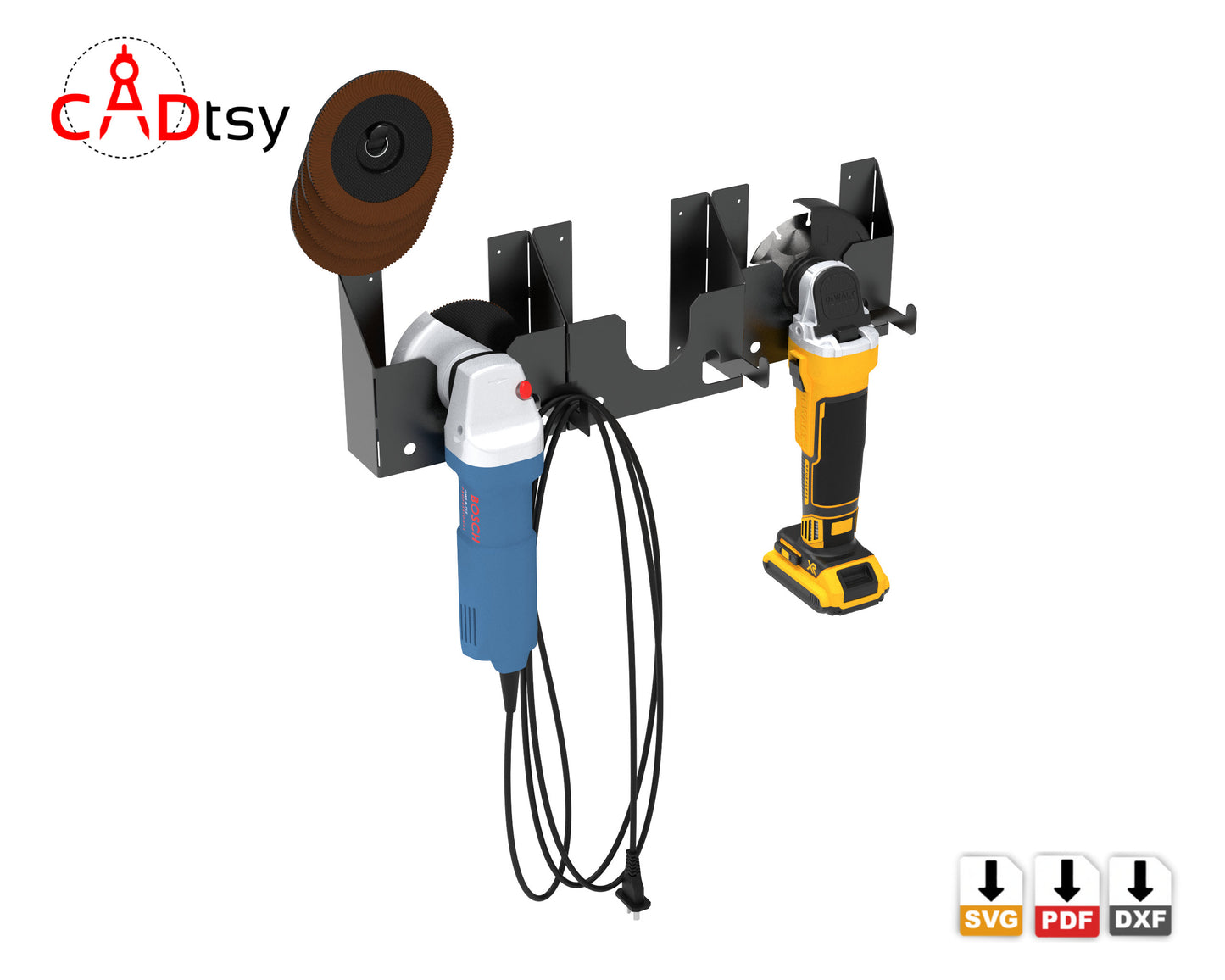

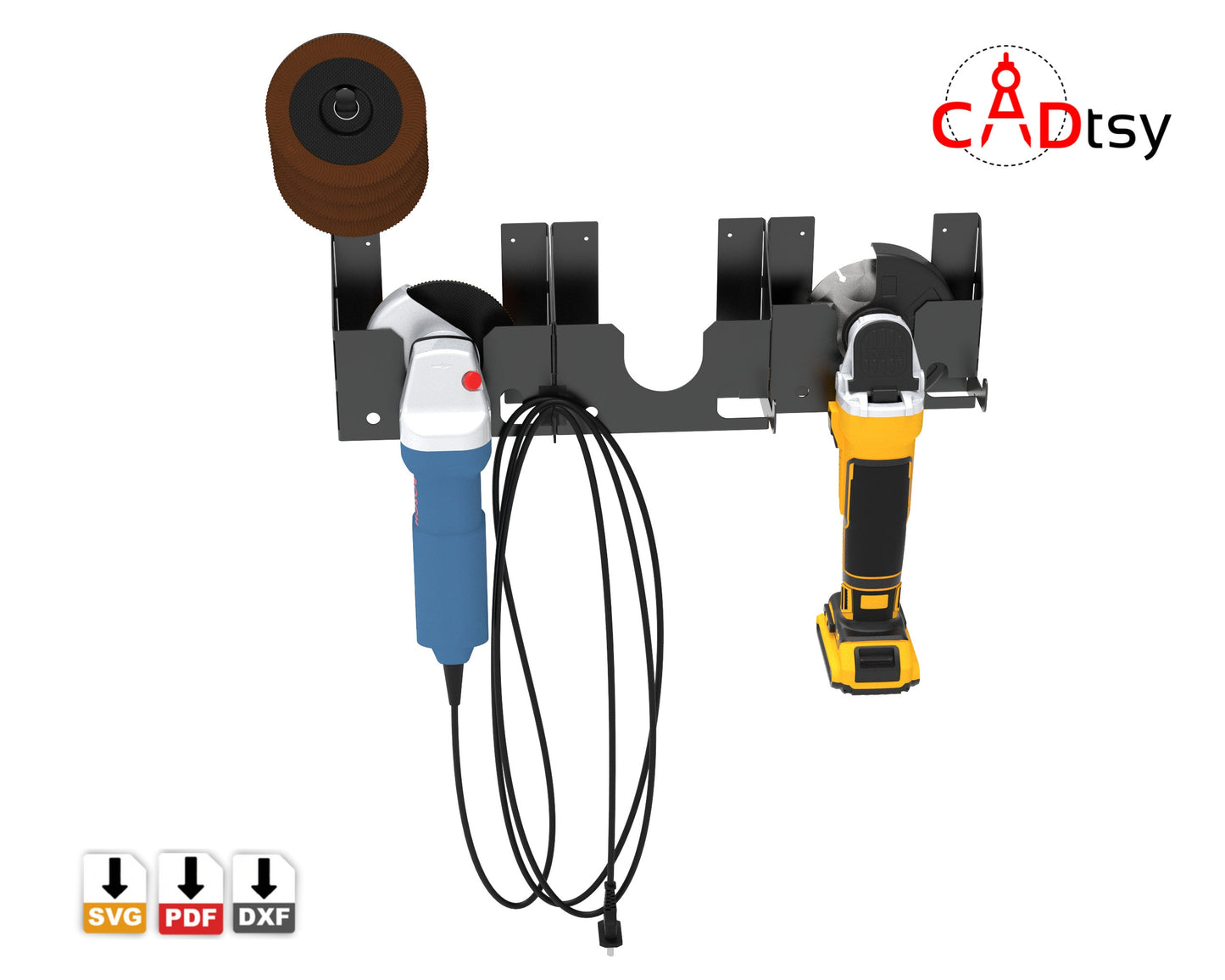

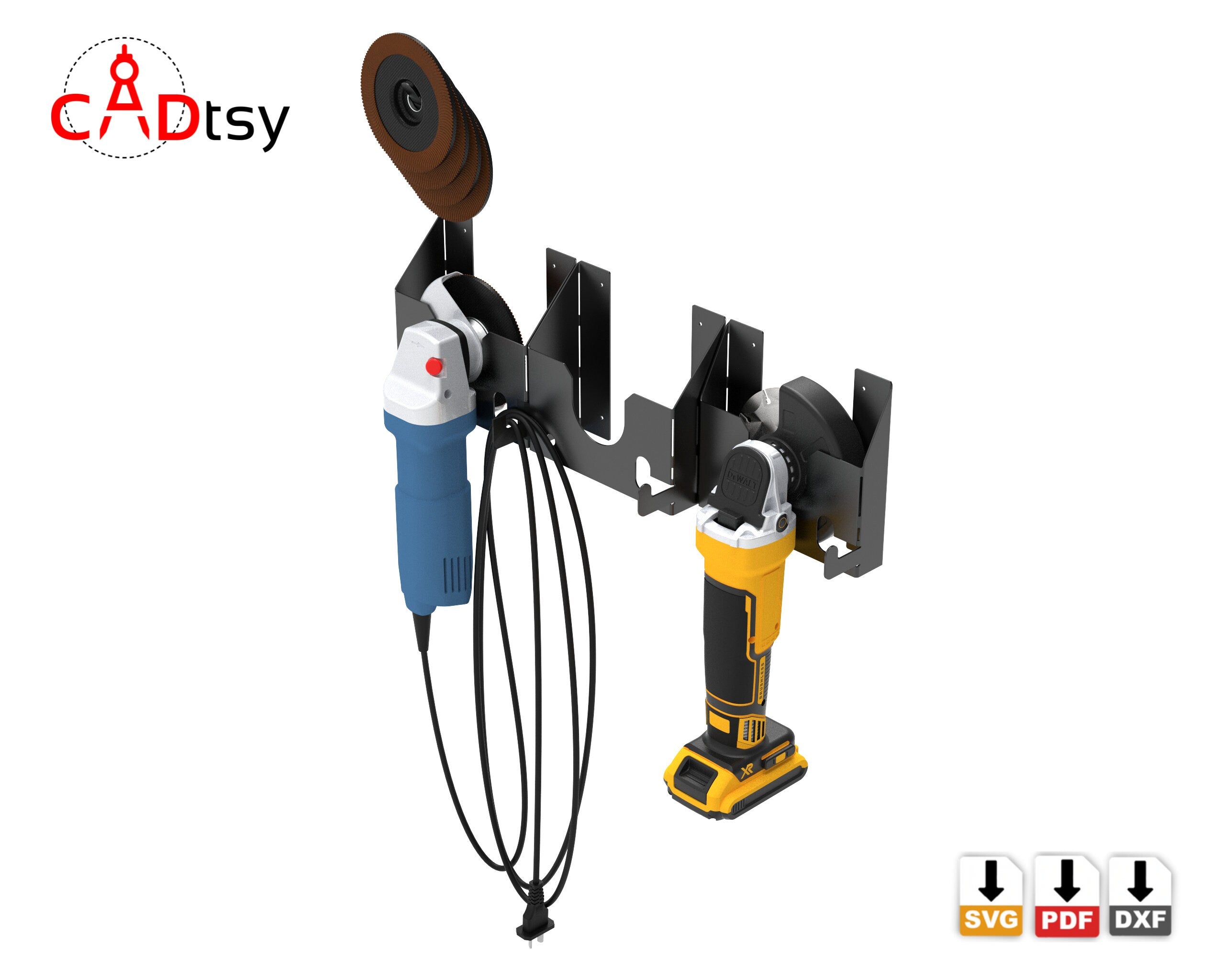

Angle Grinder Holder DXF files is a downloadable CNC-ready file package for building wall-mounted angle grinder holders for workshop and garage tool storage. The package includes three holder configurations, and the assembled holder is approximately 6.5 in high, 7.1 in wide, and 4.1 in deep.

What You Get

  • DXF, SVG, and PDF files for the angle grinder holder design.

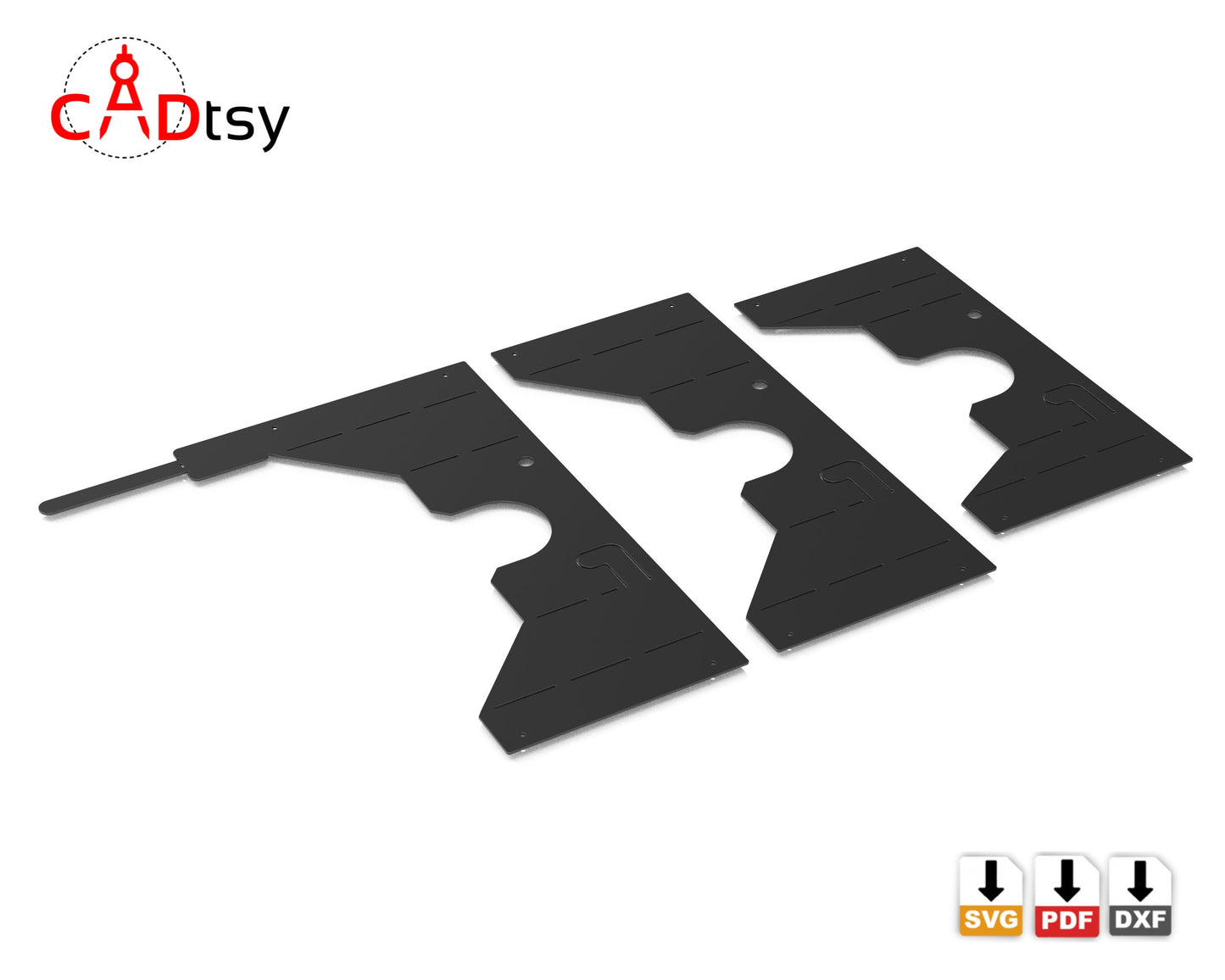

  • CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
  • PDF drawings for sheet metal bending instructions.

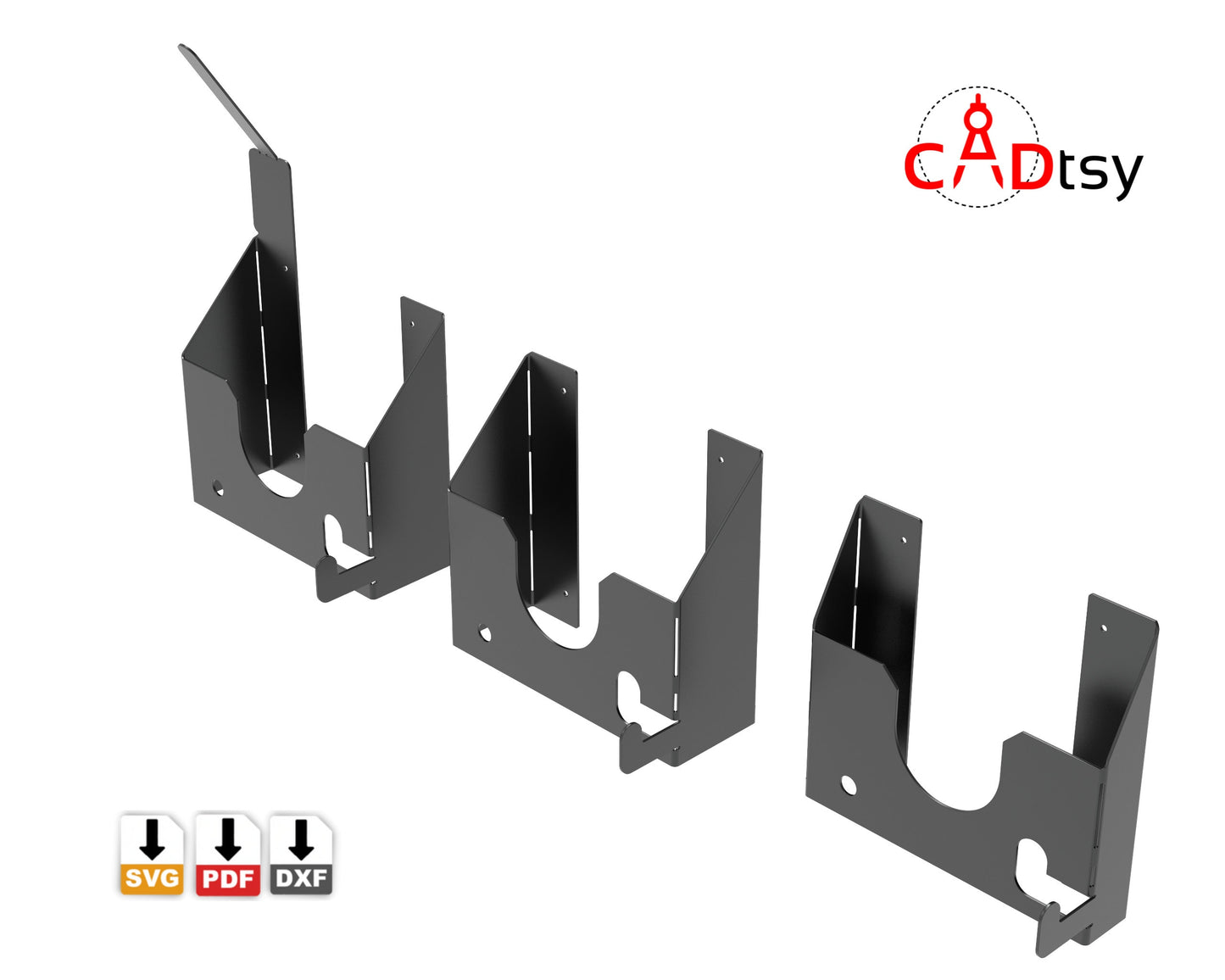

  • Three holder configurations for different grinder and disc storage setups.
  • No physical organizer, steel, hardware, fasteners, tools, or finished shop item is shipped.

Project Features

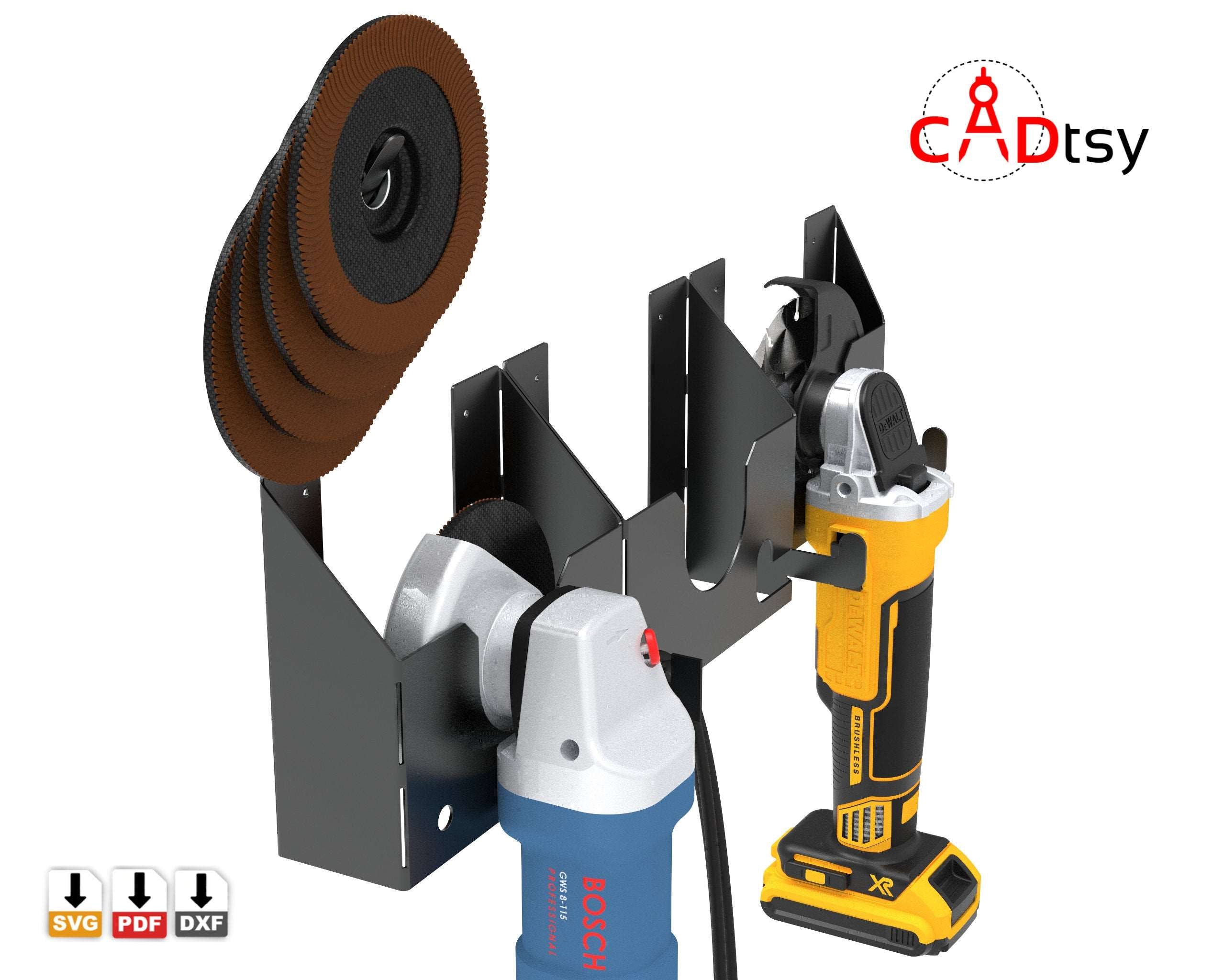

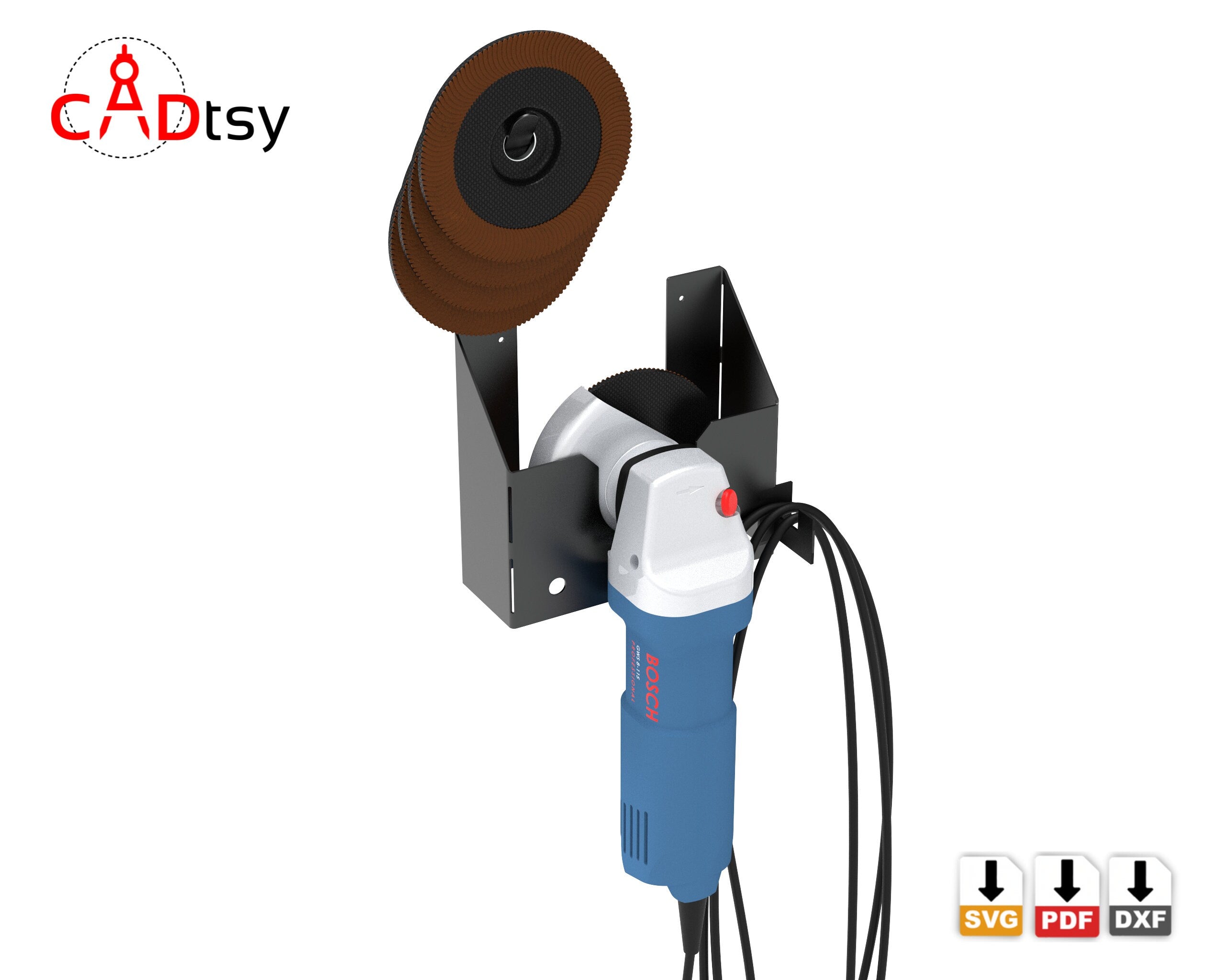

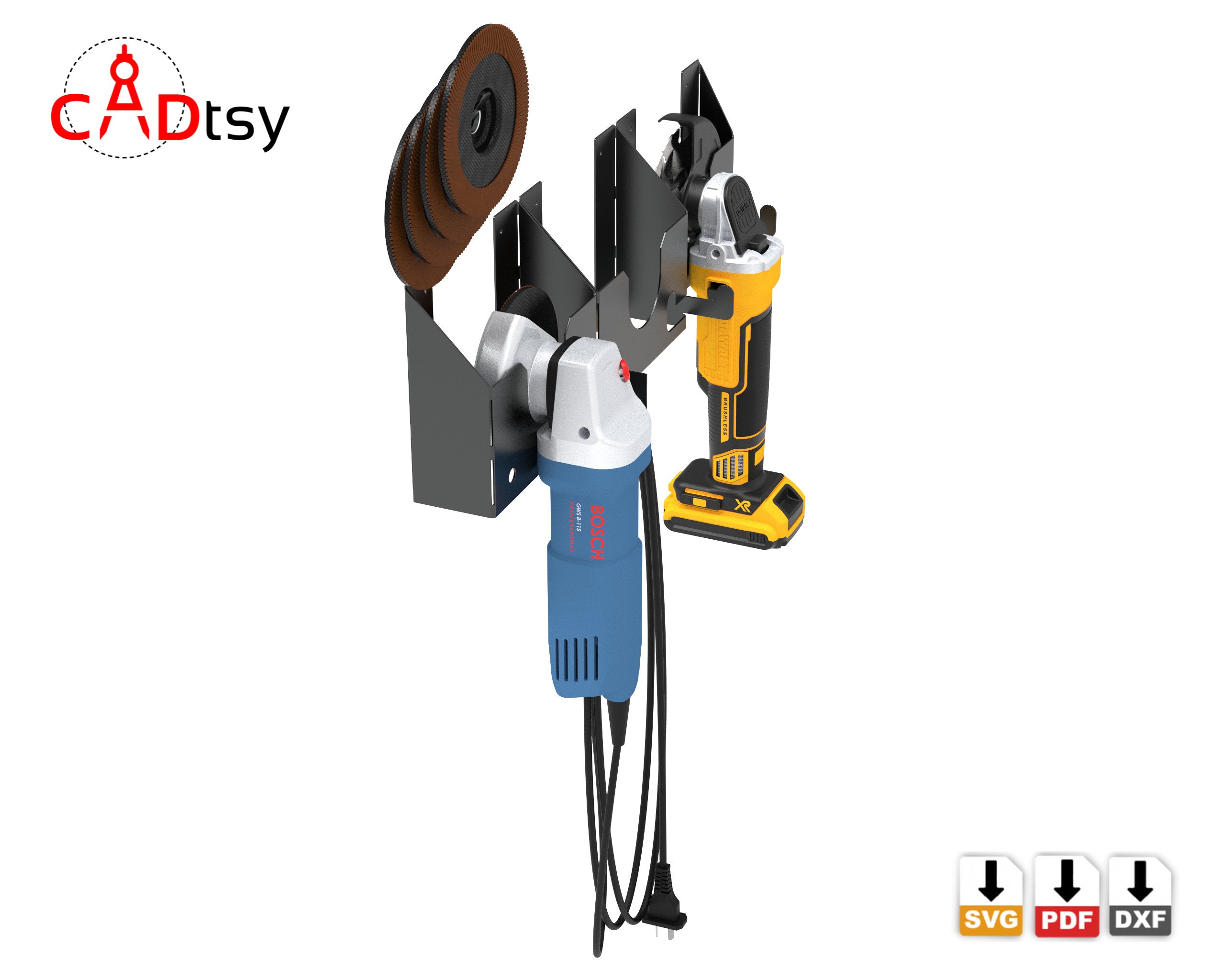

  • Wall-mounted angle grinder hanger layouts for thin discs, thicker discs or brushes, and a lower grinding-wheel storage hanger.
  • Slot-cut bend features help guide manual bending without requiring heavy industrial press equipment for suitable material thicknesses.

Finished Size

  • Approximate assembled height: 6.5 in / 165 mm.
  • Approximate assembled width: 7.1 in / 180 mm.
  • Approximate assembled depth: 4.1 in / 105 mm.

Recommended Materials

  • 13 gauge / 2.4-2.5 mm steel.
  • 14 gauge / 2.0 mm steel.
  • 16 gauge / 1.5-1.6 mm steel.

Before Cutting

  • CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
  • Verify kerf, grinder fit, disc clearance, mounting hole fit, material thickness, bend approach, and machine settings before fabrication.
  • Confirm wall fasteners, mounting surface, edge finishing, and safe tool storage before use.

Related CADtsy Files

Browse related workshop tool organizer DXF files, explore tool storage DXF organizers, CADtsy CNC cut files, or review how CADtsy digital CNC files work before purchase.
⚠️ Important Information

• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.
⚠️ Legal Information

CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.

Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.

Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.
⚠️ Technical Support & Scaling

• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
