Finally, you can keep your most-used pneumatic tools organized and within arm's reach. This downloadable plan provides you with the air tool wall rack DXF and SVG files needed to create a durable, space-saving organizer for your workshop.

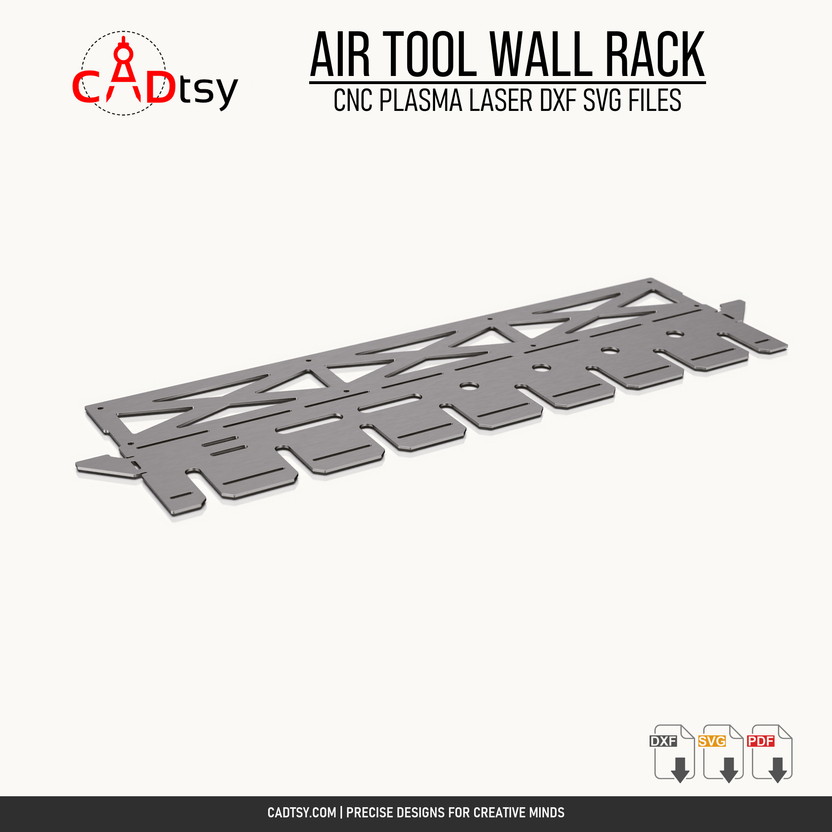

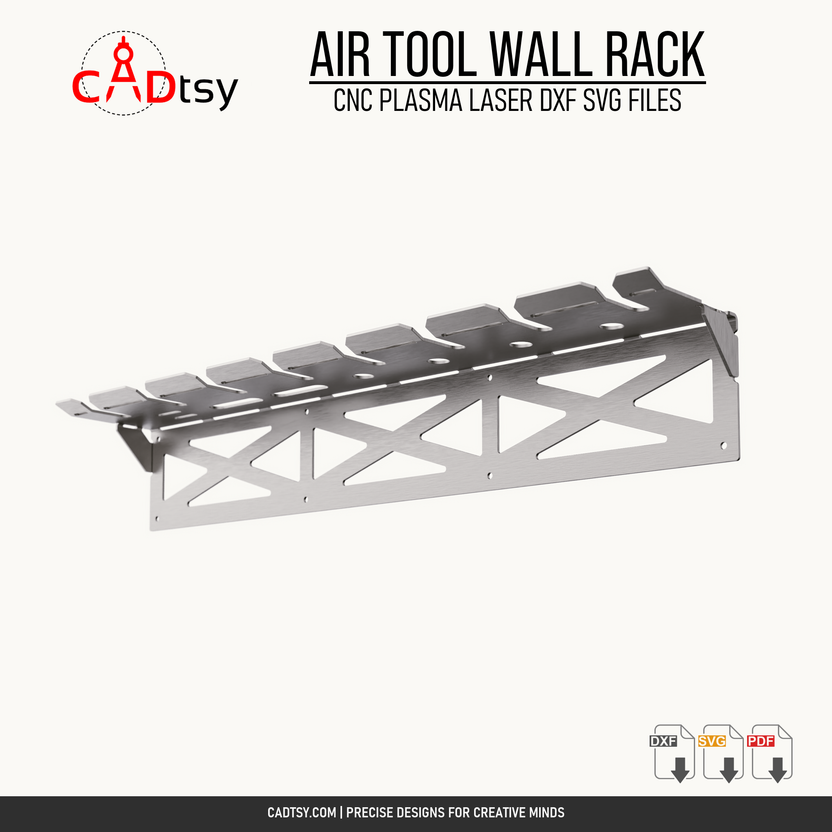

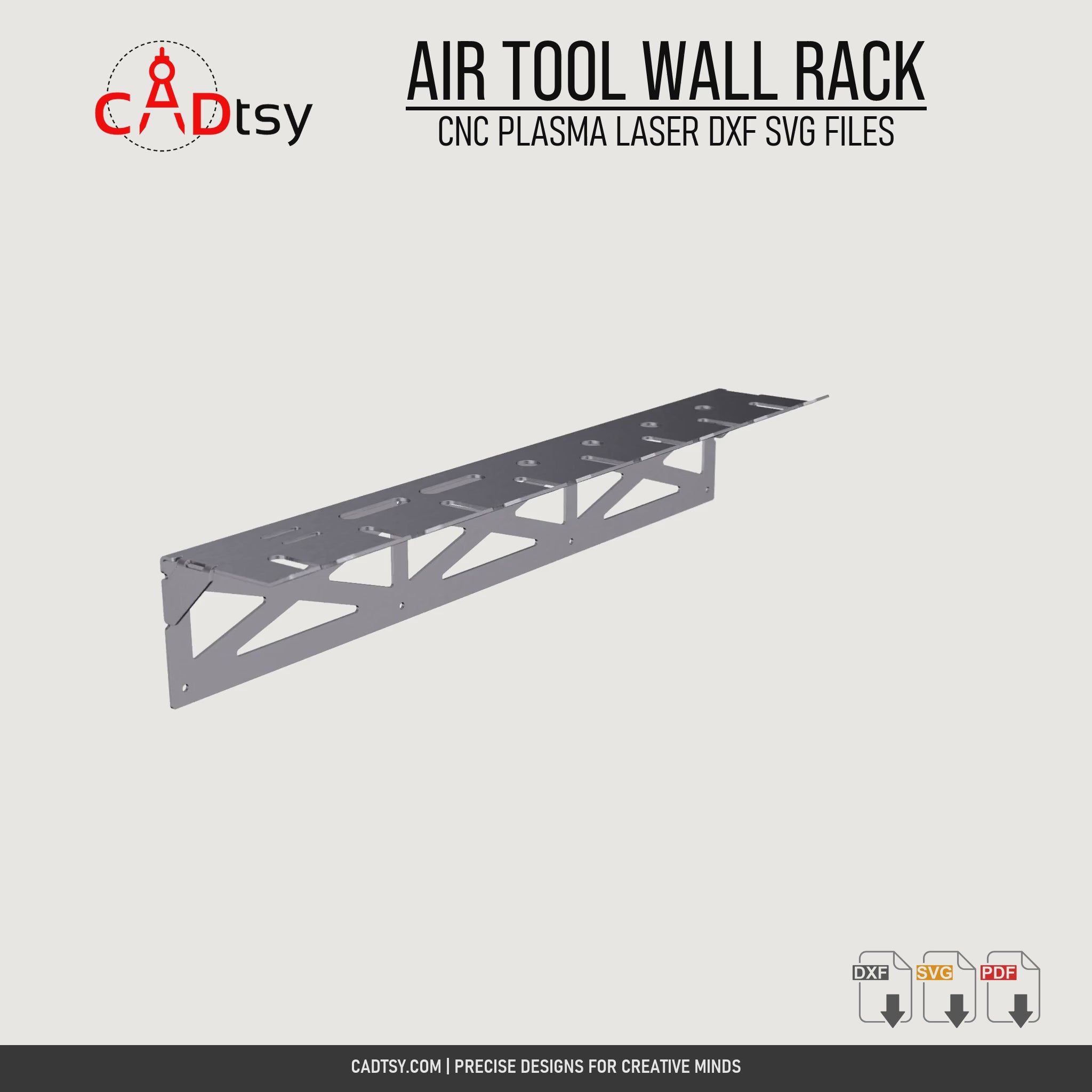

This design is specifically for CNC plasma, laser, or waterjet cutting. Therefore, our plans make it easy to turn simple sheet metal into a professional-quality, plasma-cut tool rack. The design includes precut slots for simple bending and assembly. As a result, this ensures a perfect fit and a sturdy final product. It is a fantastic way to add both efficiency and a clean look to your workspace.

Your Air Tool Wall Rack DXF Plan Details

We have optimized every aspect of this pneumatic tool organizer SVG and DXF plan for ease of use. In other words, you will receive high-quality files that are ready for your machine. This section details the specifications for your project.

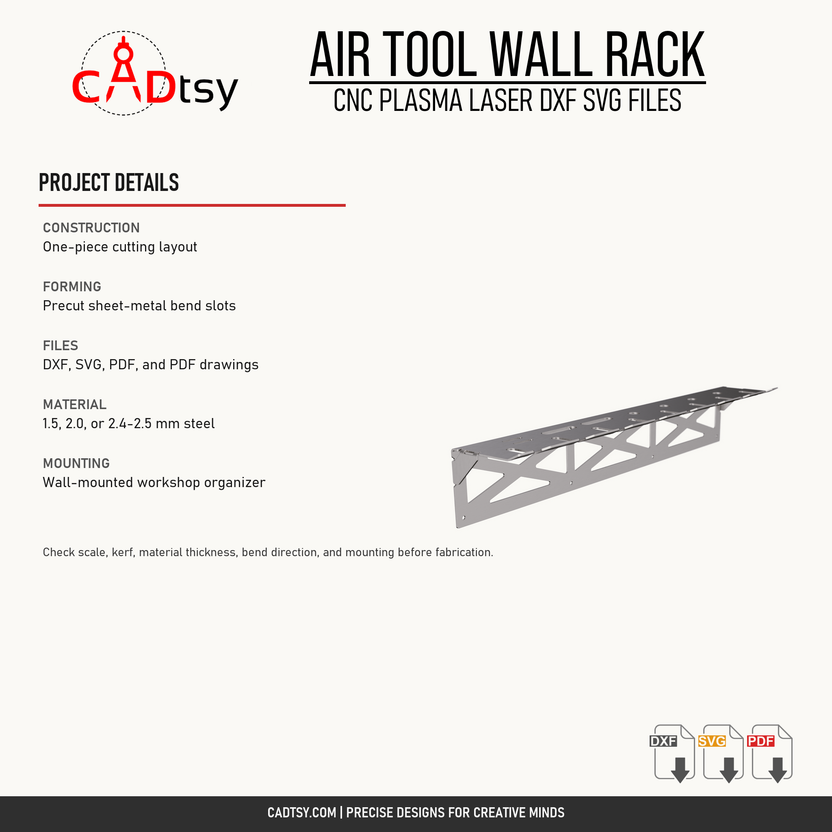

First, this plan is optimized for several common steel thicknesses, for example, 13, 14, or 16 Gauge (1.5 - 2.5 mm).
In addition, we designed this CNC tool holder plan with precut slots for simple sheet metal bending right after cutting.

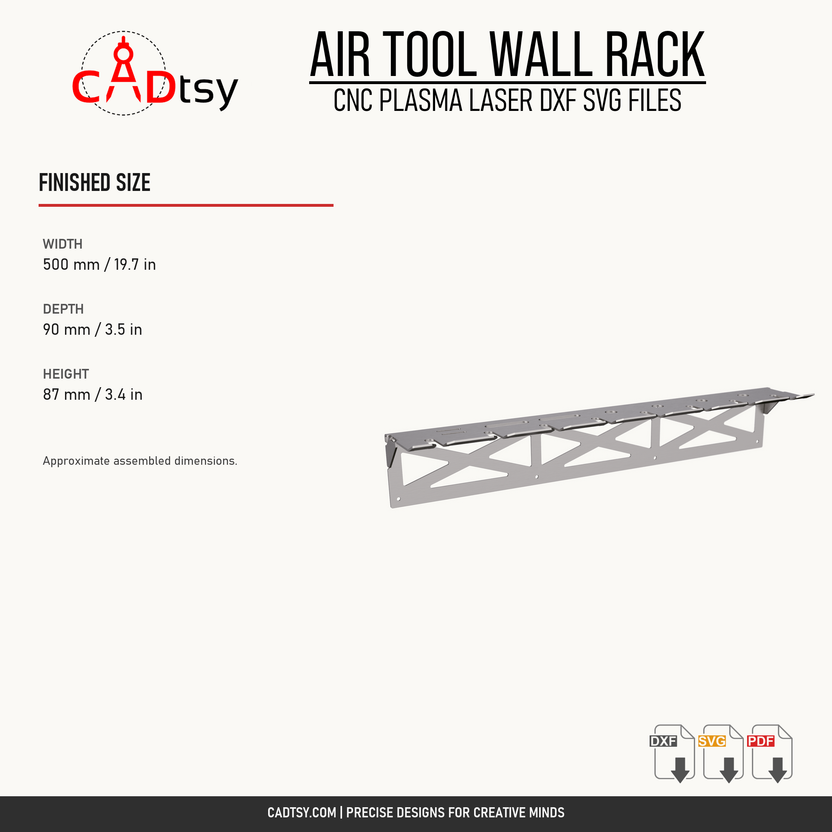

Furthermore, the final assembled plasma cut tool rack has a compact and useful size: 19.7" wide, 3.4" high, and 3.5" deep (500 x 87 x 90 mm).
Finally, your download includes DXF, SVG, and PDF files, so that you have maximum compatibility with your software.

Ready to organize your workshop this Saturday evening? Download your air tool wall rack DXF file now and create the perfect storage solution with CADtsy!

• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.

Commercial Use: These DXF plans are for personal projects or small business ventures (physical items only).

Intellectual Property: Modifying, reselling, or distributing the digital plasma dxf files is strictly prohibited. All media is protected by copyright. Unauthorized digital resale or redistribution is illegal and may result in legal action.

• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
