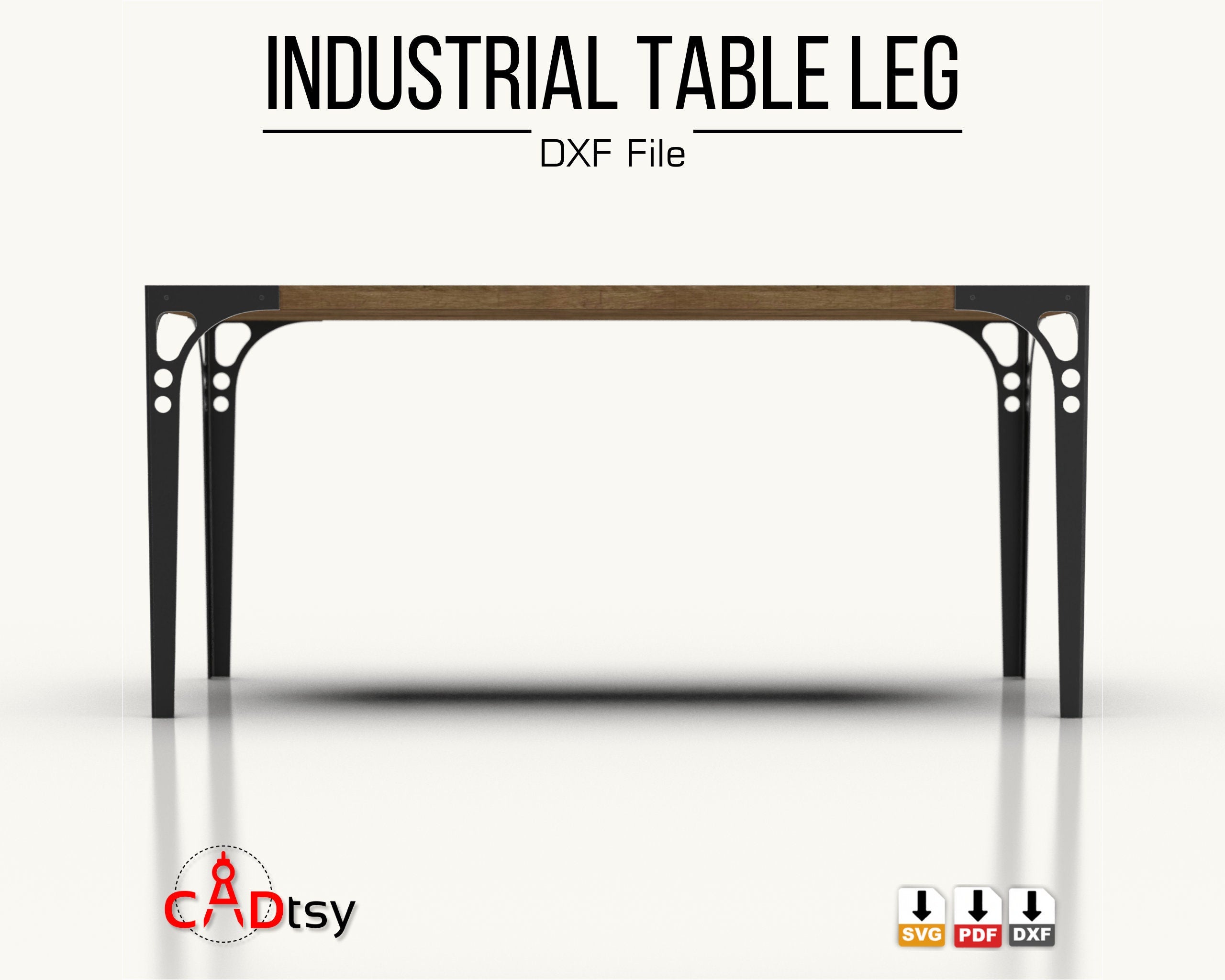

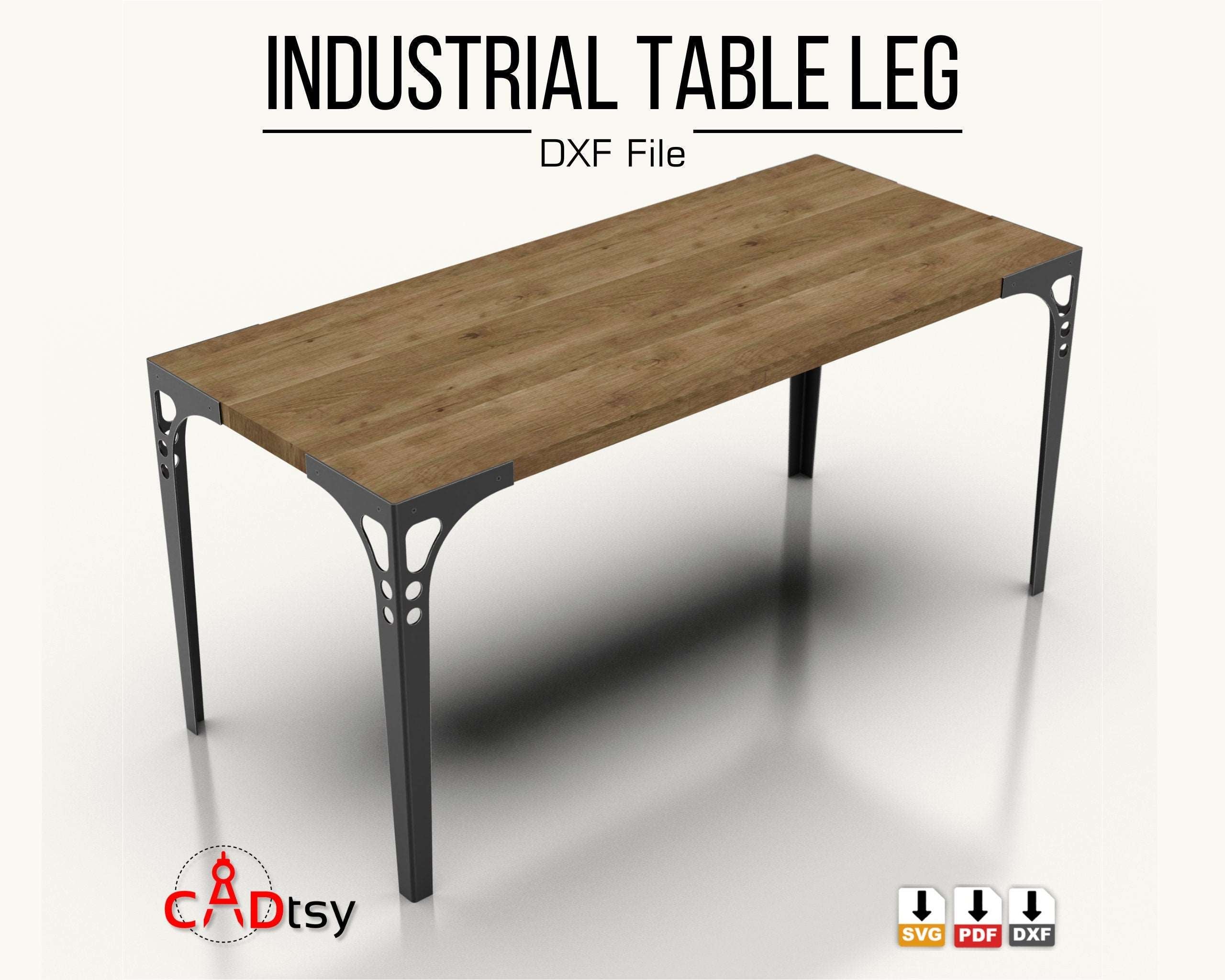

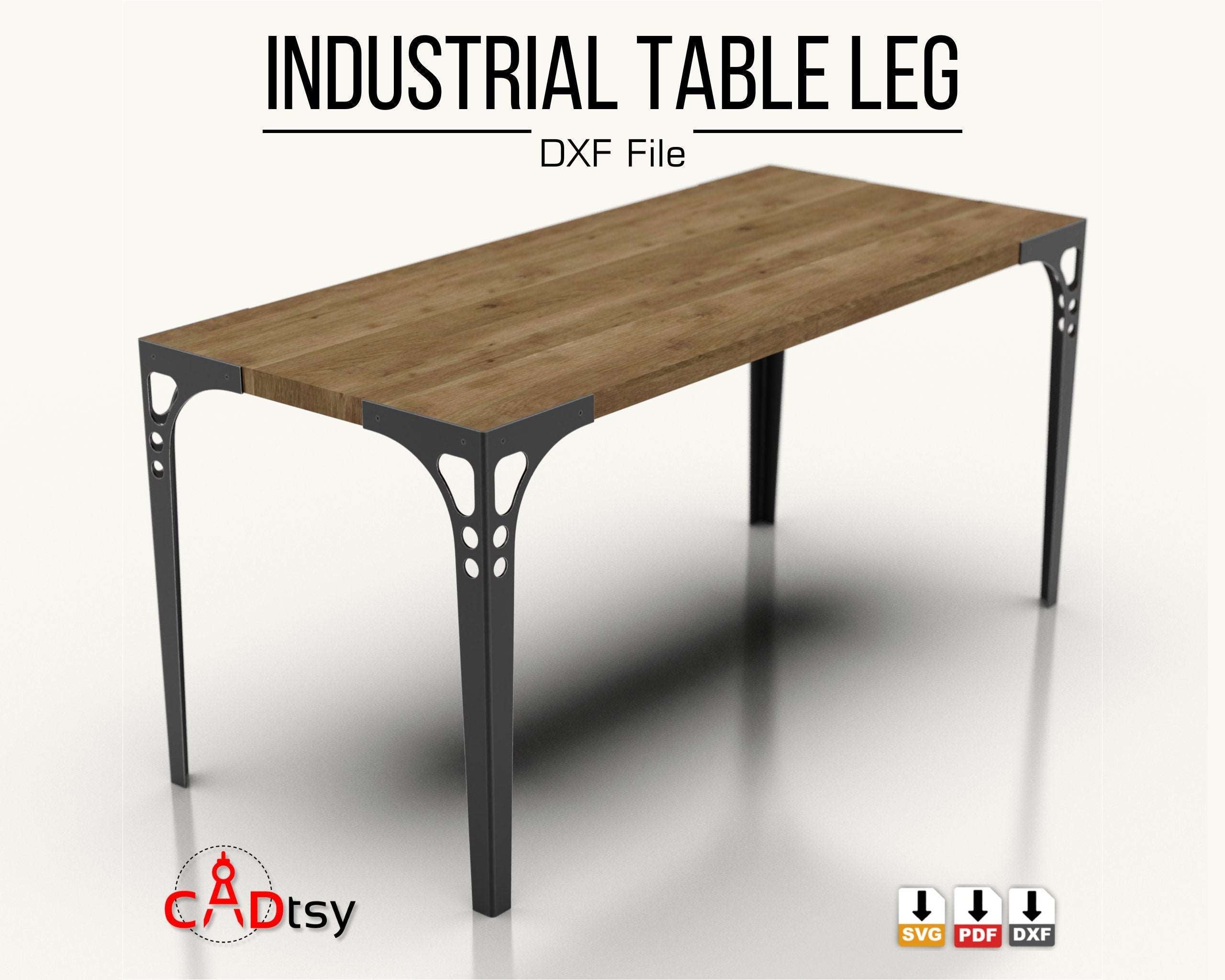

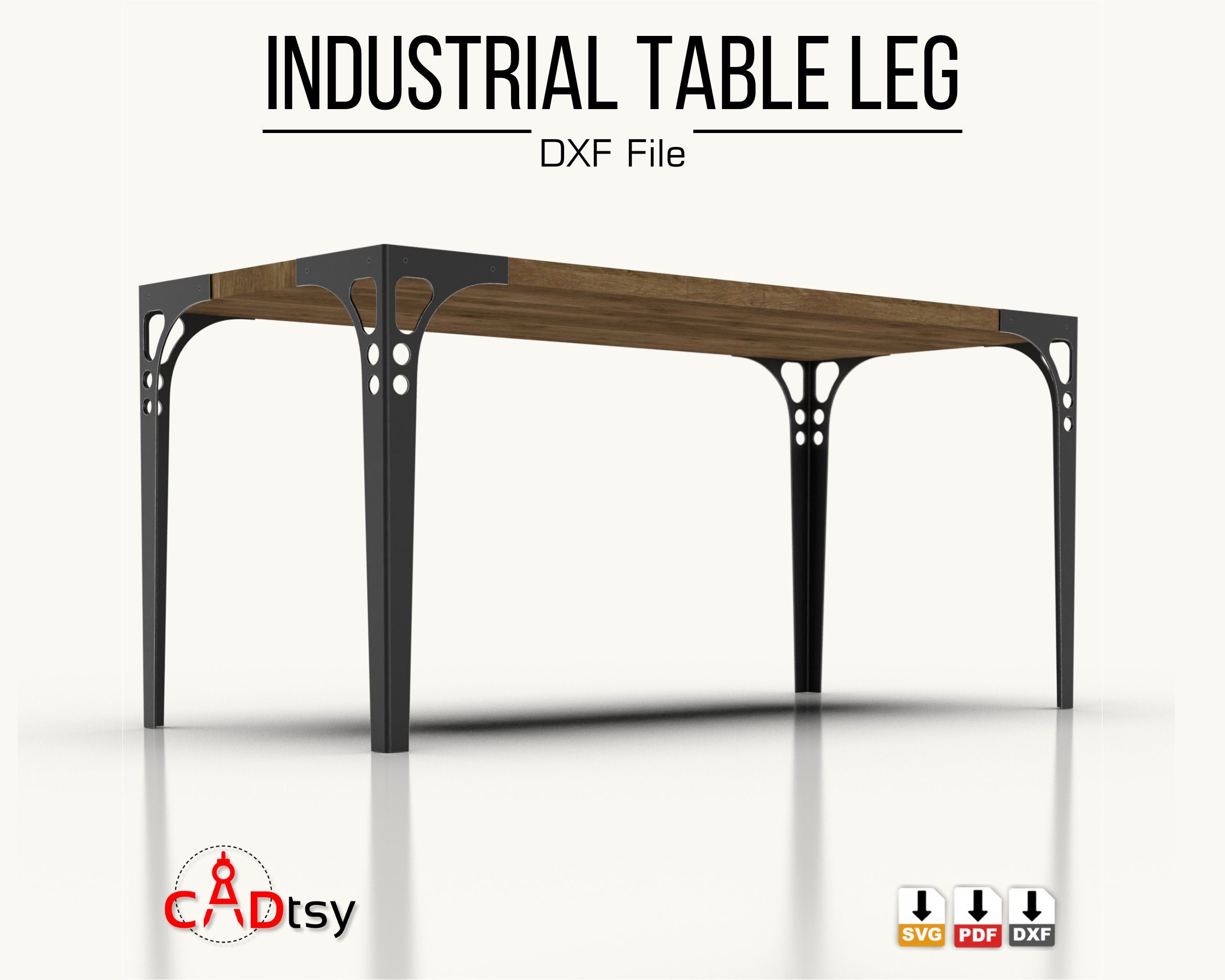

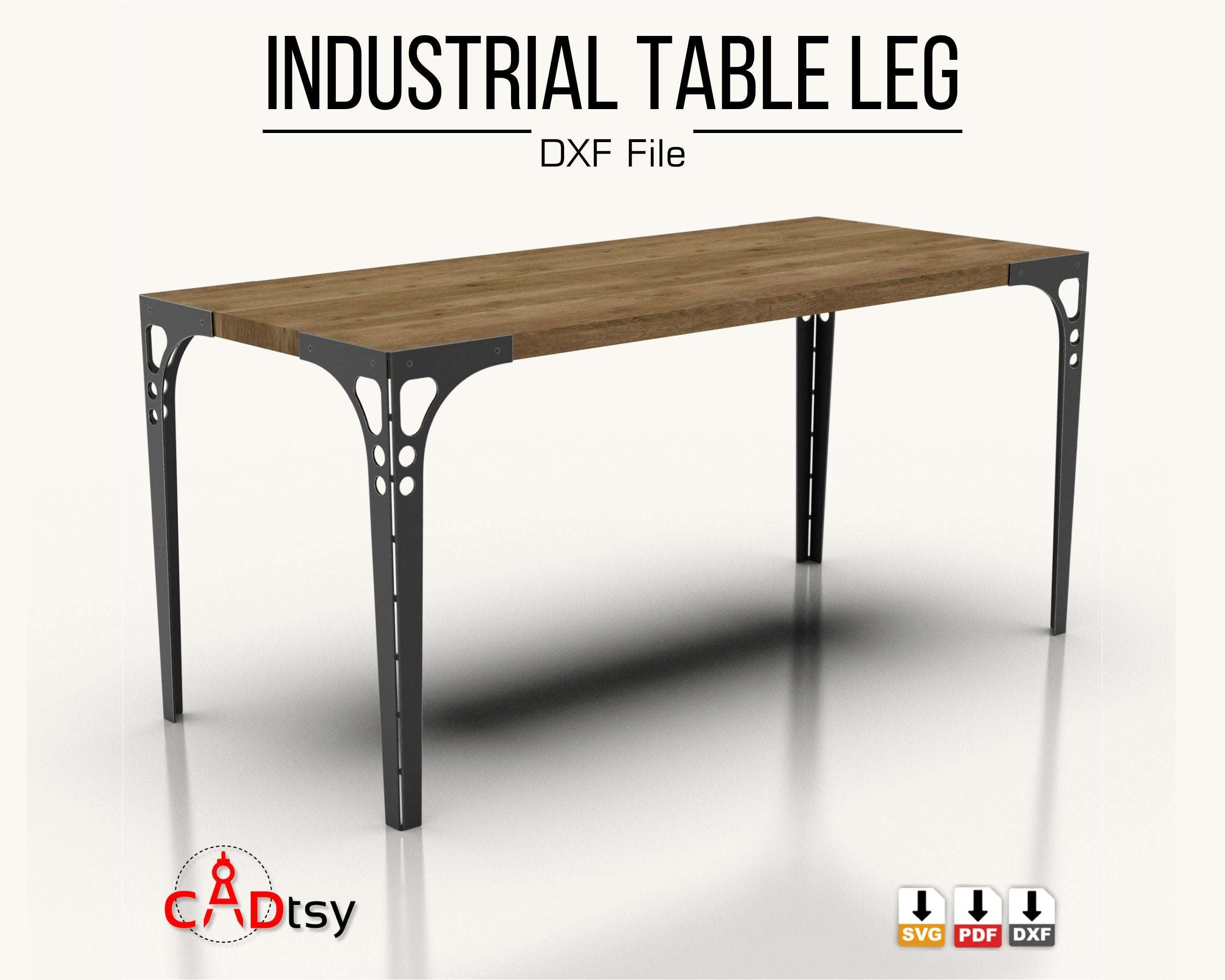

Construct a high-end, industrial-style table with our industrial table leg DXF and SVG files. We meticulously tailored this digital plan for CNC laser or plasma cutting. It allows you to fabricate a sturdy, 29-inch tall metal leg for your custom furniture projects.
Above all, this standard-height leg is the perfect foundation for a variety of builds. For example, you can create a stunning dining table, a modern office desk, or a sleek console table. This metal table leg SVG plan is ideal for artisans and DIY enthusiasts. Consequently, you can bring a modern industrial touch to any interior space with precision and minimal effort.
A Modern DIY Dining Table Leg
Specifically, we designed these files to facilitate precise fabrication and a hassle-free assembly process. The clean lines and robust structure are the gateway to producing stylish, durable tables. In short, it’s the perfect way to elevate your furniture projects.
Your Industrial Table Leg DXF Plan Details
In other words, we have engineered every aspect of this plan for a flawless result from your CNC machine.
-
Final Assembled Dimensions: Height: 29" (740 mm), Width: 9" (230 mm), Depth: 9" (230 mm).
-
Recommended Materials: This CNC plasma leg plan is designed for 8 Gauge (4.0 mm) sheet metal for maximum stability.
-
Required Operations: In addition, this project requires CNC cutting (Plasma or Laser) and simple sheet metal bending using the pre-cut slots.
-
Included File Formats: Finally, your download includes DXF, SVG, and PDF files for maximum software compatibility.
Download your industrial table leg DXF file today. Start building a standout piece of custom furniture that combines your craftsmanship with bold industrial design, thanks to CADtsy.
⚠️ Important Information
• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.
⚠️ Legal Information
Commercial Use: These DXF plans are for personal projects or small business ventures (physical items only).
Intellectual Property: Modifying, reselling, or distributing the digital plasma dxf files is strictly prohibited. All media is protected by copyright. Unauthorized digital resale or redistribution is illegal and may result in legal action.
⚠️ Technical Support & Scaling
• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
