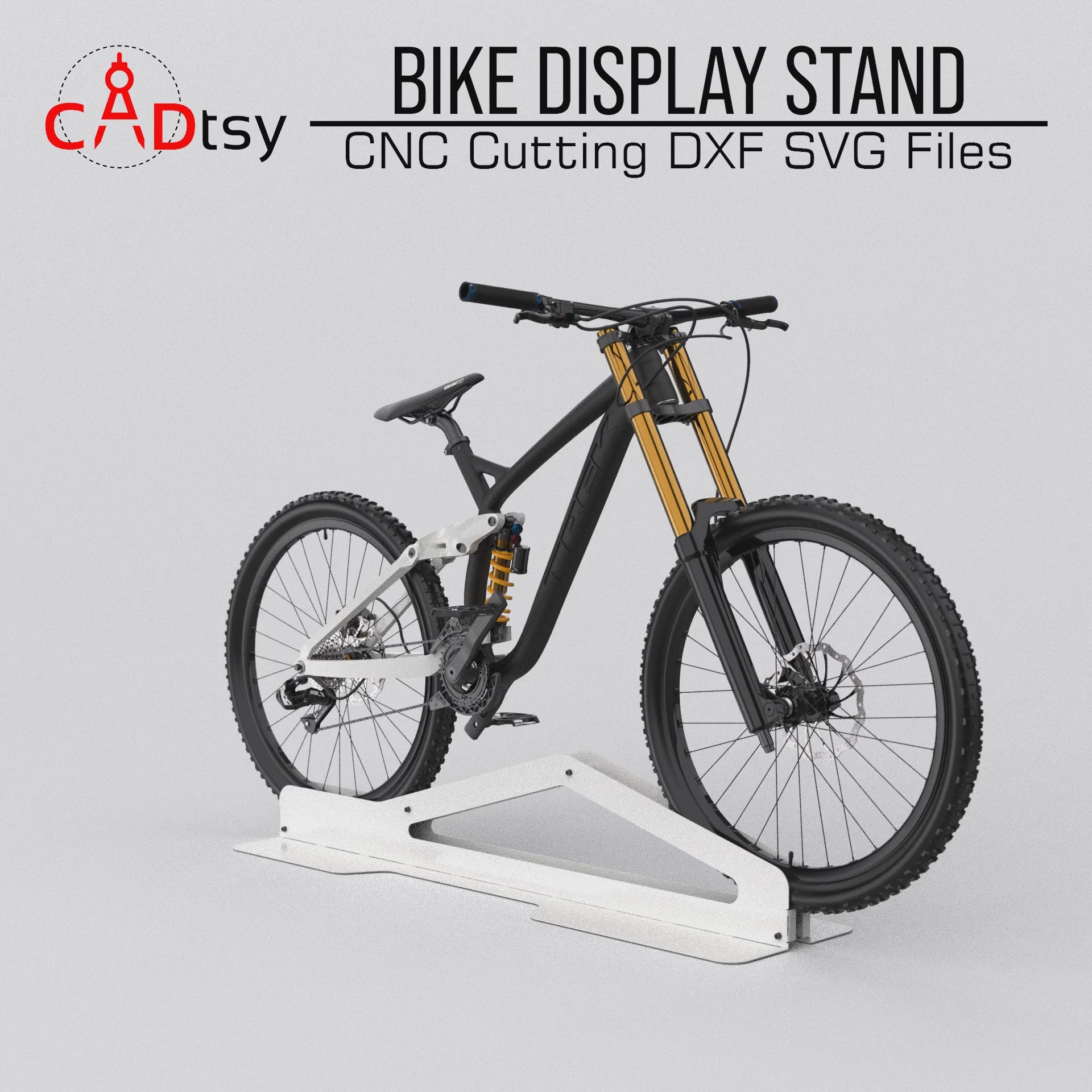

A sleek metal bike stand, made from a DXF file, securely holding a mountain bike in a stylish display.

Metal Bike Stand DXF Files

$8.00 USD
$8.00 USD $12.00 USD
Skip to product information
A sleek metal bike stand, made from a DXF file, securely holding a mountain bike in a stylish display.
Metal Bike Stand DXF Files

Metal Bike Stand DXF Files

1 reviews

$8.00 USD
$8.00 USD $12.00 USD
Taxes included.

Display your bike like a work of art with our metal bike stand DXF and SVG files. This digital plan allows you to create a sleek, modern, and incredibly durable floor rack using your CNC plasma or laser cutter.

Your bike deserves better than leaning against a wall. A dedicated stand protects your bike's frame and keeps it securely stored. Therefore, this project is perfect for any cycling enthusiast who values both form and function. This mountain bike rack DXF plan is especially suited for heavier bikes. Consequently, it provides a stable and stylish storage solution for your garage, apartment, or retail space.

A Modern Bike Display Stand Design

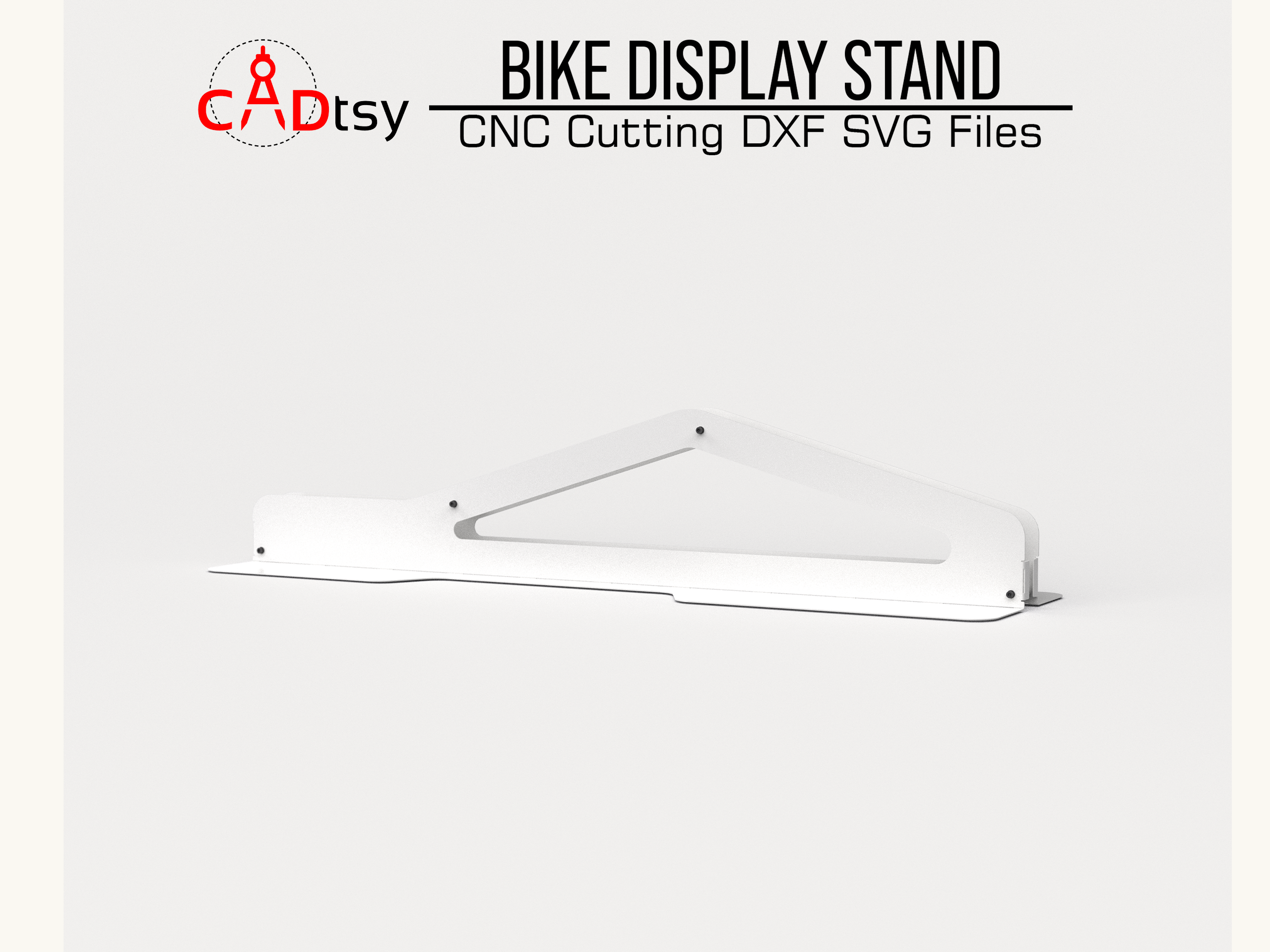

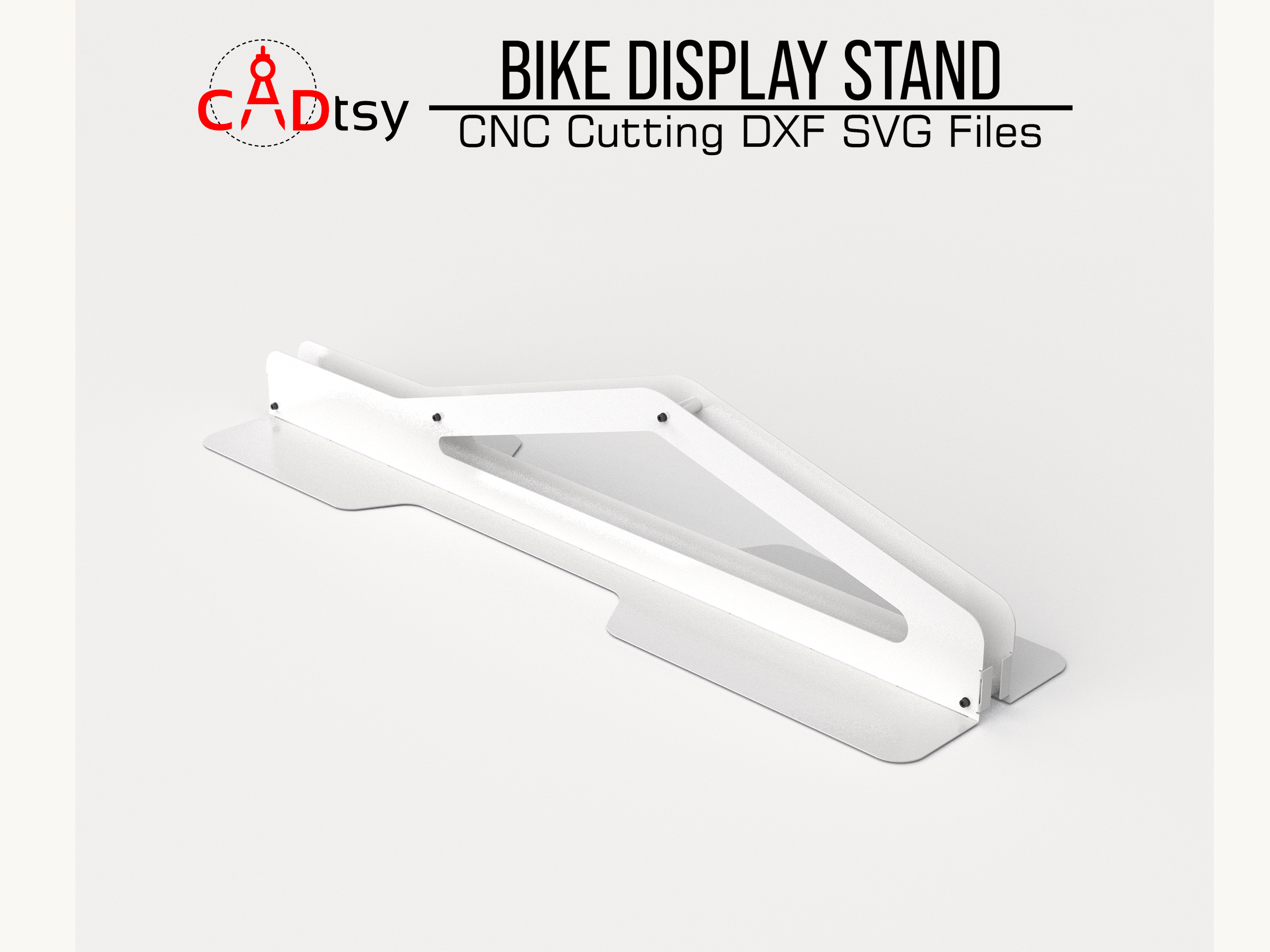

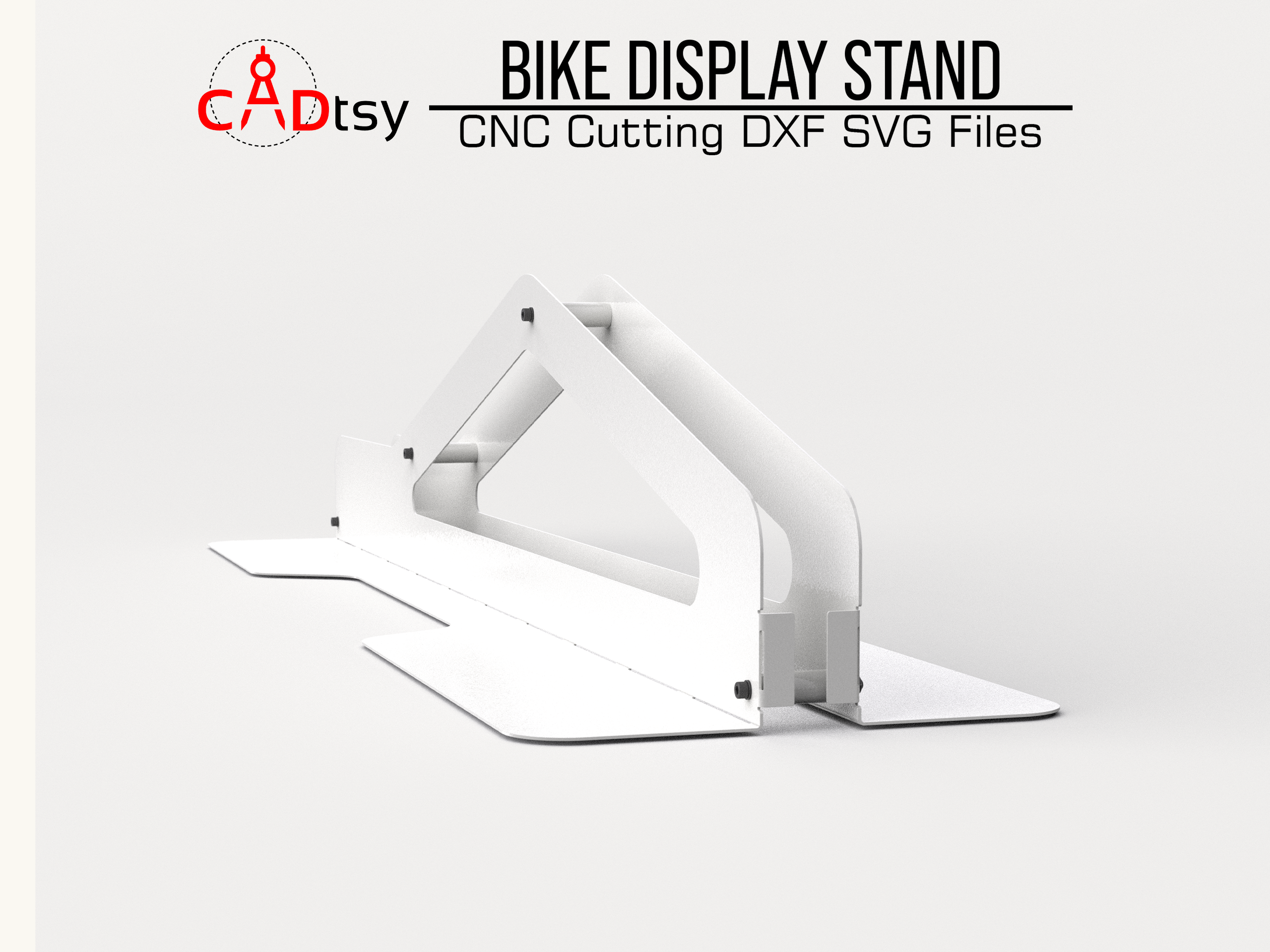

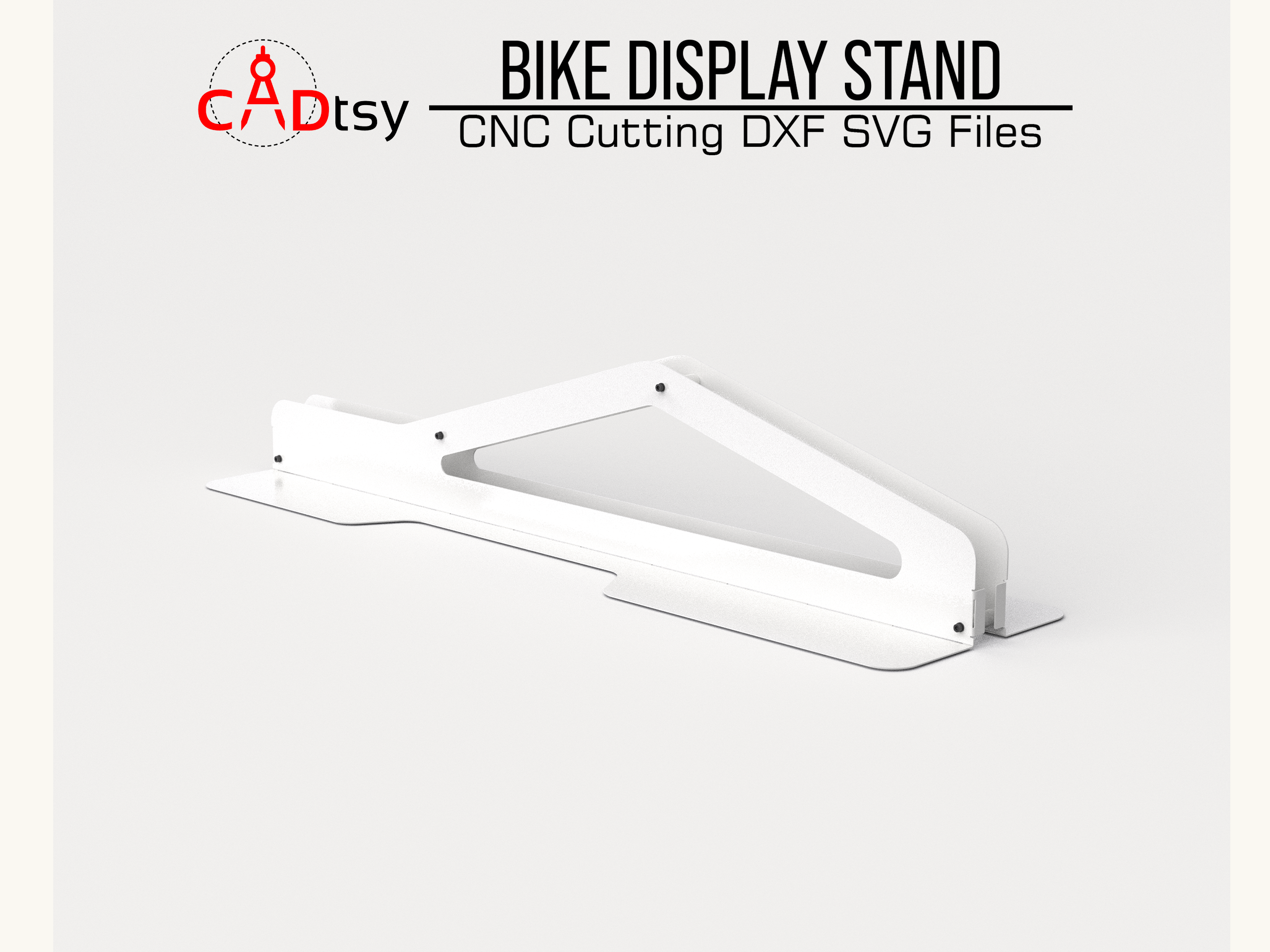

We designed this CNC plasma bike holder for a minimalist aesthetic that complements any high-end bicycle. The precision-cut metal pieces assemble into a sturdy and visually striking stand. In short, it’s a functional piece of art for your bike.

Your Metal Bike Stand DXF Plan Details

We have engineered every aspect of this plan for a flawless result from your CNC machine.

  • Final Assembled Dimensions: Height: 11.1" (282 mm), Width: ~14.2" (361 mm), Length: 55.1" (1400 mm).

  • Recommended Materials: This metal bike stand DXF project is designed for 13 Gauge (2.5 mm) or 14 Gauge (2.0 mm) sheet metal.

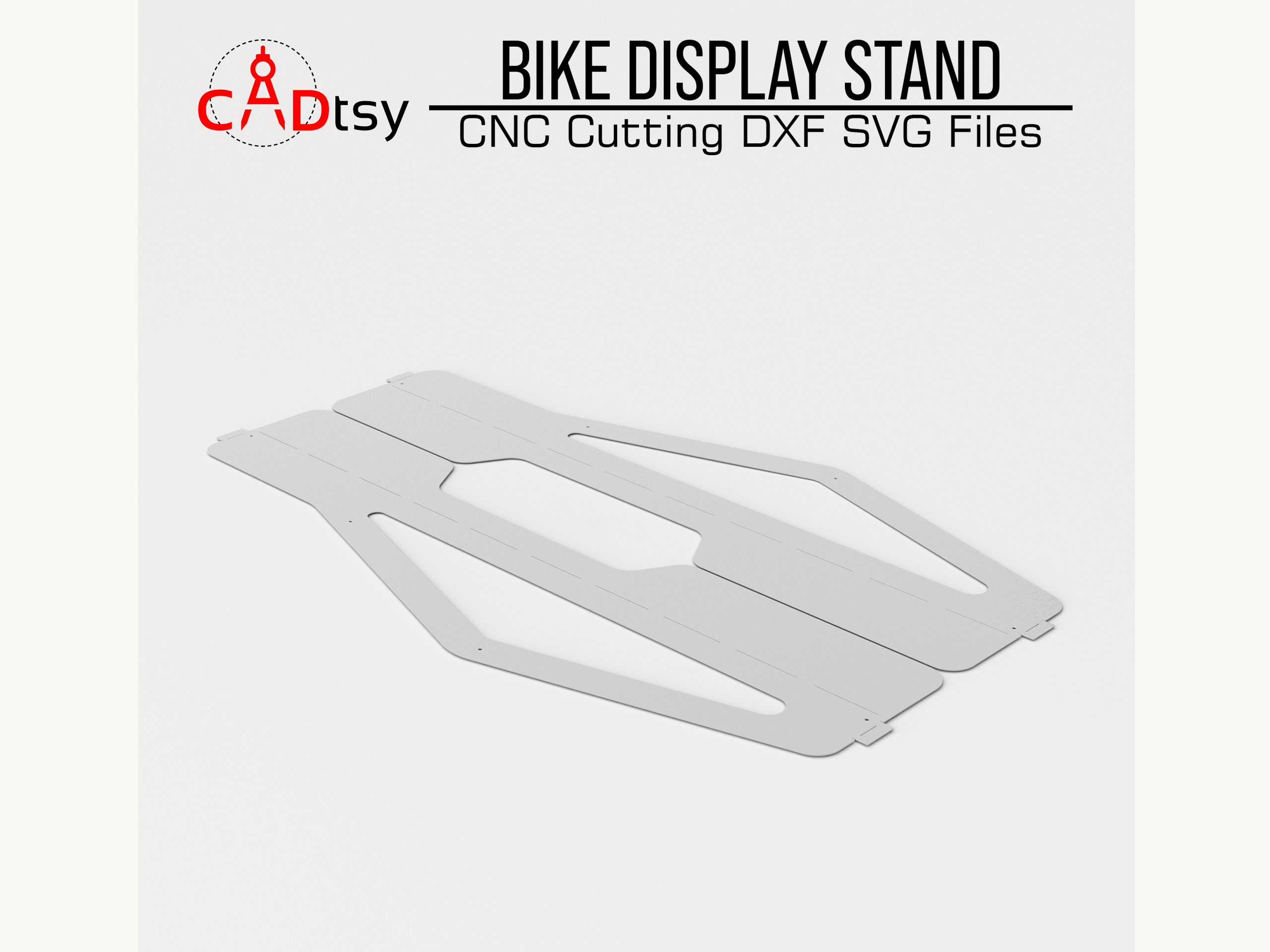

  • Required Operations: In addition, this project requires CNC cutting (Plasma or Laser) and sheet metal bending using the pre-cut slots.

  • Included File Formats: Finally, your download includes DXF, SVG, and PDF files for maximum software compatibility.

Download your metal bike stand DXF file today. Start creating a premium, custom display for your prized bicycle with CADtsy.
⚠️ Important Information

• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.
⚠️ Legal Information

Commercial Use: These DXF plans are for personal projects or small business ventures (physical items only).

Intellectual Property: Modifying, reselling, or distributing the digital plasma dxf files is strictly prohibited. All media is protected by copyright. Unauthorized digital resale or redistribution is illegal and may result in legal action.
⚠️ Technical Support & Scaling

• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
