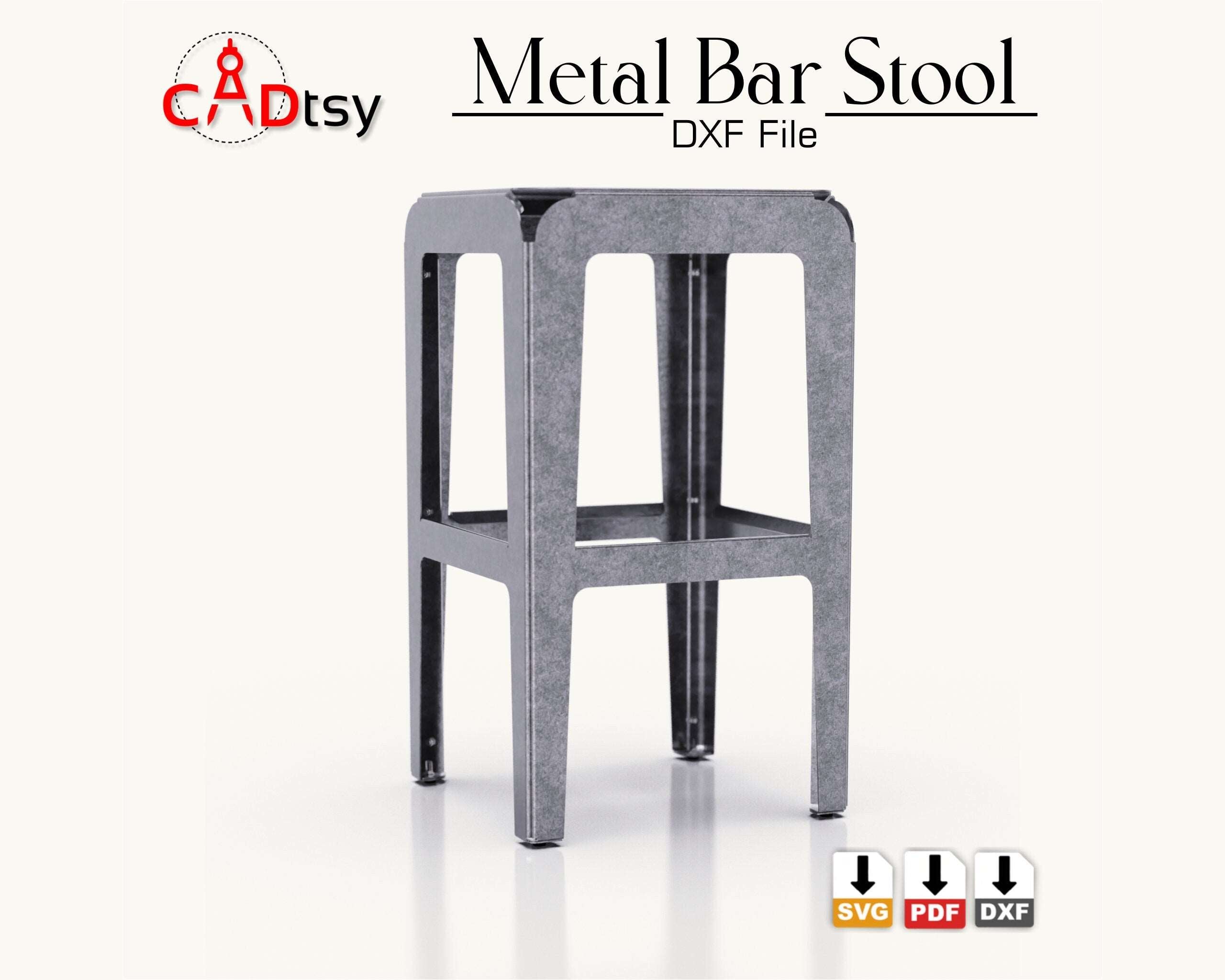

A 29.5-inch high industrial metal bar stool, made from a DXF file, shown fully assembled in a workshop setting.

Metal Bar Stool. Plasma DXF Files for CNC Cutting. Industrial Style. Height 750mm (29.5")

$10.00 USD
$10.00 USD $15.38 USD
Skip to product information
A 29.5-inch high industrial metal bar stool, made from a DXF file, shown fully assembled in a workshop setting.
Metal Bar Stool. Plasma DXF Files for CNC Cutting. Industrial Style. Height 750mm (29.5")

Metal Bar Stool. Plasma DXF Files for CNC Cutting. Industrial Style. Height 750mm (29.5")

$10.00 USD
$10.00 USD $15.38 USD
Taxes included.

Craft a sleek, 29.5-inch high stool with our metal bar stool DXF and SVG files. We designed this CNC cut file specifically for laser or plasma cutting.

This project delivers precise dimensions for creating a stylish and sturdy bar stool. Therefore, it is perfect for enhancing any space with a modern, industrial aesthetic.

This CNC plasma stool is ideal for adding a custom touch to bars, kitchens, or workshop areas. Consequently, our files ensure a seamless fabrication process from start to finish.

An Industrial Seating Design

We designed this metal kitchen stool for a seamless fabrication process. Specifically, the included bending drawings provide clear guidance for achieving the correct form. This ensures your creations stand out in both design and quality.

Project Specifications

Moreover, we have engineered every aspect of this file for a flawless result.

  • This metal bar stool DXF file creates a stool with a height of 29.5" (750 mm) and a width/depth of 15" (382 mm).

  • We designed this piece of laser cut seating for 13, 14, or 16 Gauge (1.5 - 2.5 mm) sheet metal.

  • In addition, your industrial stool design project requires CNC cutting (Plasma or Laser), sheet metal bending, and assembly with rivets or bolts.

  • Finally, your download includes DXF, SVG, and PDF files for maximum compatibility.

Download your metal bar stool DXF files today. Start creating a sophisticated and durable piece of custom furniture with CADtsy.
    ⚠️ Important Information

    • Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
    • Email Delivery: After checkout, you will receive an automated email containing your download links.
    • File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.
    ⚠️ Legal Information

    Commercial Use: These DXF plans are for personal projects or small business ventures (physical items only).

    Intellectual Property: Modifying, reselling, or distributing the digital plasma dxf files is strictly prohibited. All media is protected by copyright. Unauthorized digital resale or redistribution is illegal and may result in legal action.
    ⚠️ Technical Support & Scaling

    • Unit System: All designs are created in millimeters (mm).
    • Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
    • The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
    • Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
