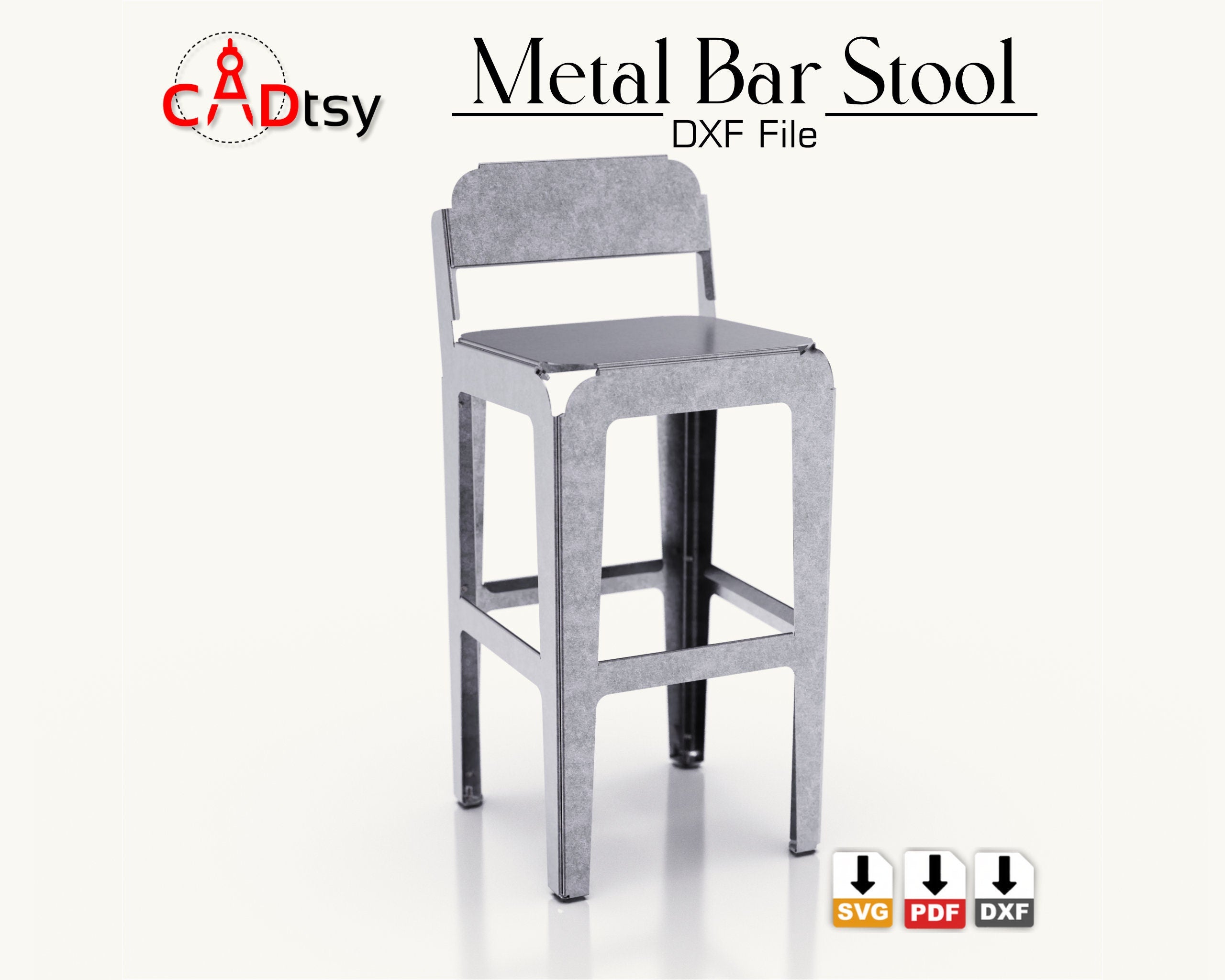

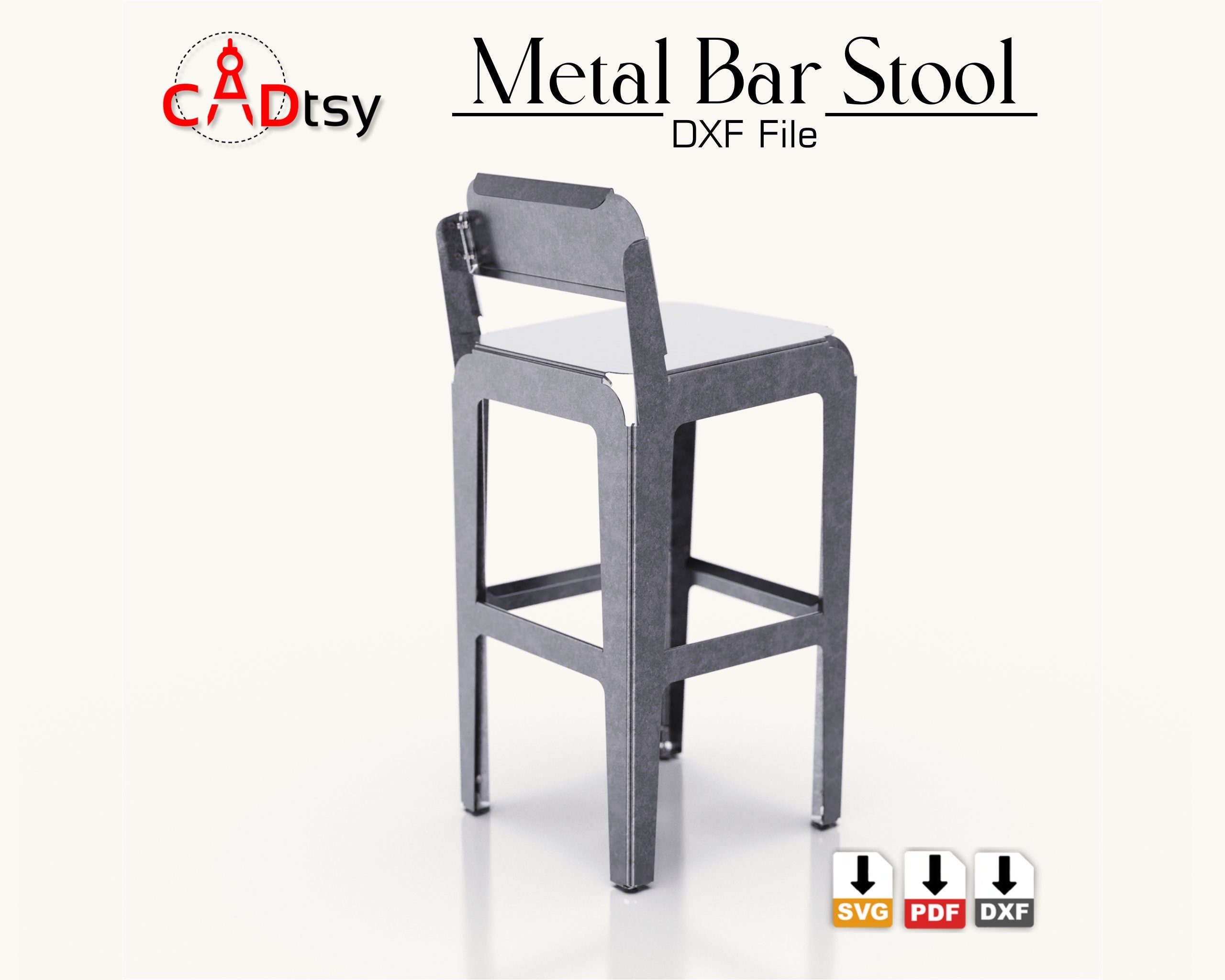

A tall, 30-inch metal bar stool with a backrest, made from a DXF file, shown fully assembled.

Metal Bar Backrest Stool CNC Plasma/Laser Cutting DXF/SVG Files. Height 760 mm (30")

$10.00 USD
$10.00 USD $15.38 USD
Skip to product information
A tall, 30-inch metal bar stool with a backrest, made from a DXF file, shown fully assembled.
Metal Bar Backrest Stool CNC Plasma/Laser Cutting DXF/SVG Files. Height 760 mm (30")

Metal Bar Backrest Stool CNC Plasma/Laser Cutting DXF/SVG Files. Height 760 mm (30")

2 reviews

$10.00 USD
$10.00 USD $15.38 USD
Taxes included.

Elevate your furniture projects with our metal bar stool DXF files. We crafted these files for precision CNC plasma or laser cutting.

This digital download allows you to create a stylish and comfortable seating solution. Therefore, it is perfect for bars, kitchens, or any modern space.

This bar stool with backrest design combines functionality with aesthetic appeal. Consequently, you can produce a high-quality piece with ease.

A CNC Plasma Stool Design

We designed this metal kitchen stool for a seamless fabrication process. Specifically, the included bending drawings provide clear guidance for achieving the correct form. This ensures your creations stand out in both design and quality.

Project Specifications

Moreover, we have engineered every aspect of this file for a flawless result.

  • This file creates a stool with a total height of 38.6" (980 mm) and a seat height of 30" (760 mm).

  • We designed this piece of laser cut seating for 14 Gauge (2.0 mm) sheet metal.

  • In addition, your project requires CNC cutting (Plasma or Laser) and sheet metal bending.

  • Finally, your download includes DXF, SVG, and PDF files for this CNC plasma stool.

Download your metal bar stool DXF files today. Start creating a sophisticated and durable piece of custom furniture with CADtsy.
⚠️ Important Information

• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.
⚠️ Legal Information

Commercial Use: These DXF plans are for personal projects or small business ventures (physical items only).

Intellectual Property: Modifying, reselling, or distributing the digital plasma dxf files is strictly prohibited. All media is protected by copyright. Unauthorized digital resale or redistribution is illegal and may result in legal action.
⚠️ Technical Support & Scaling

• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
