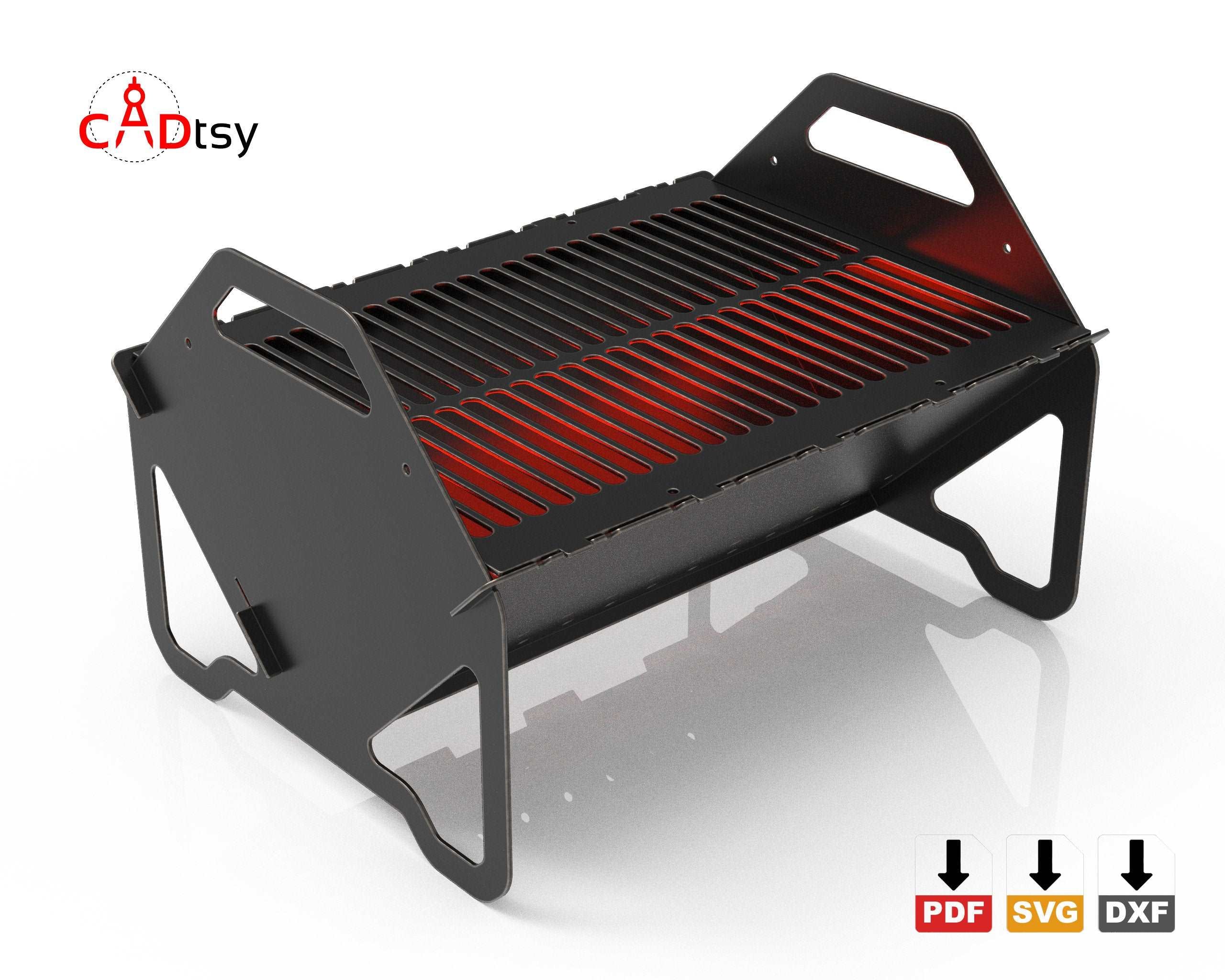

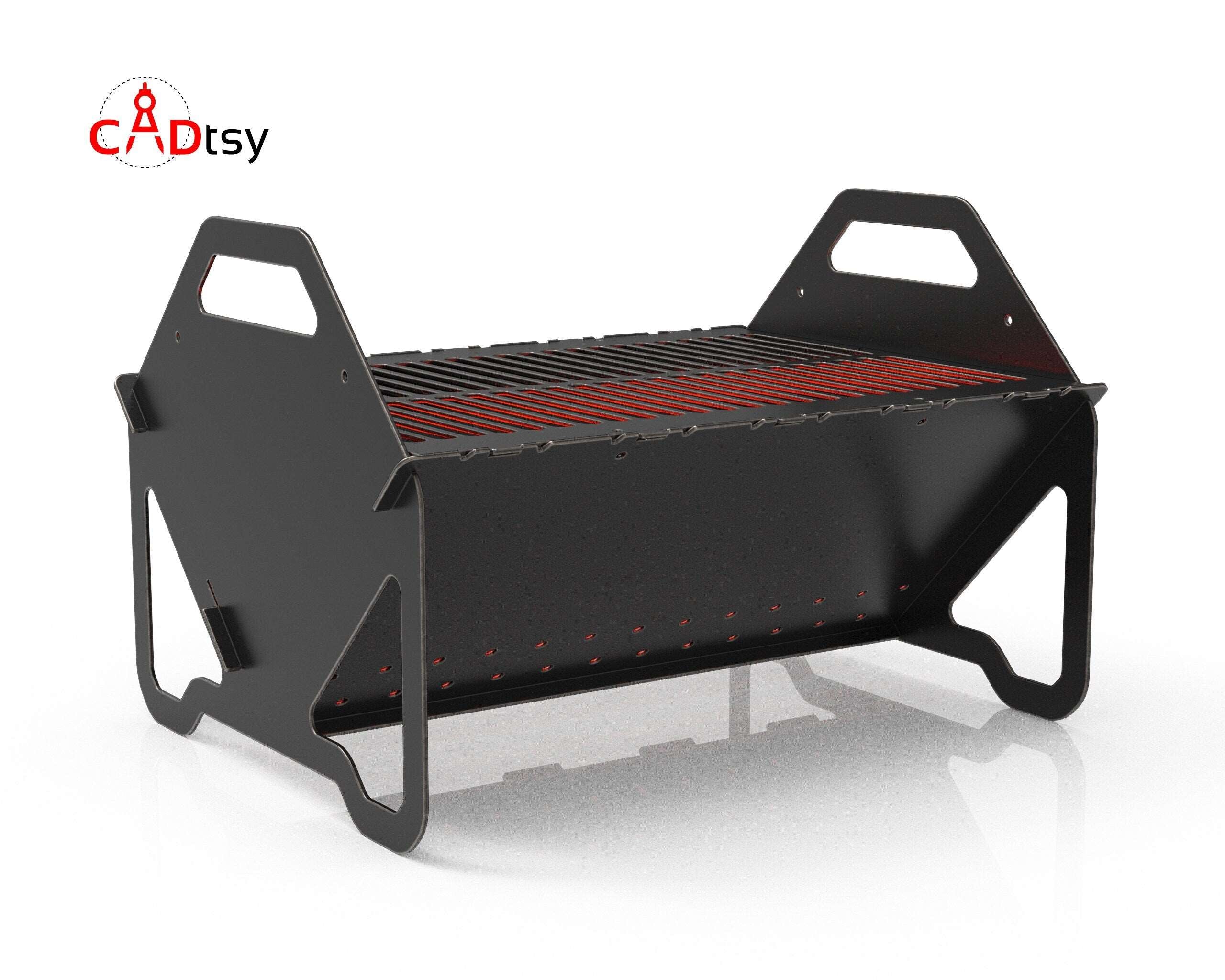

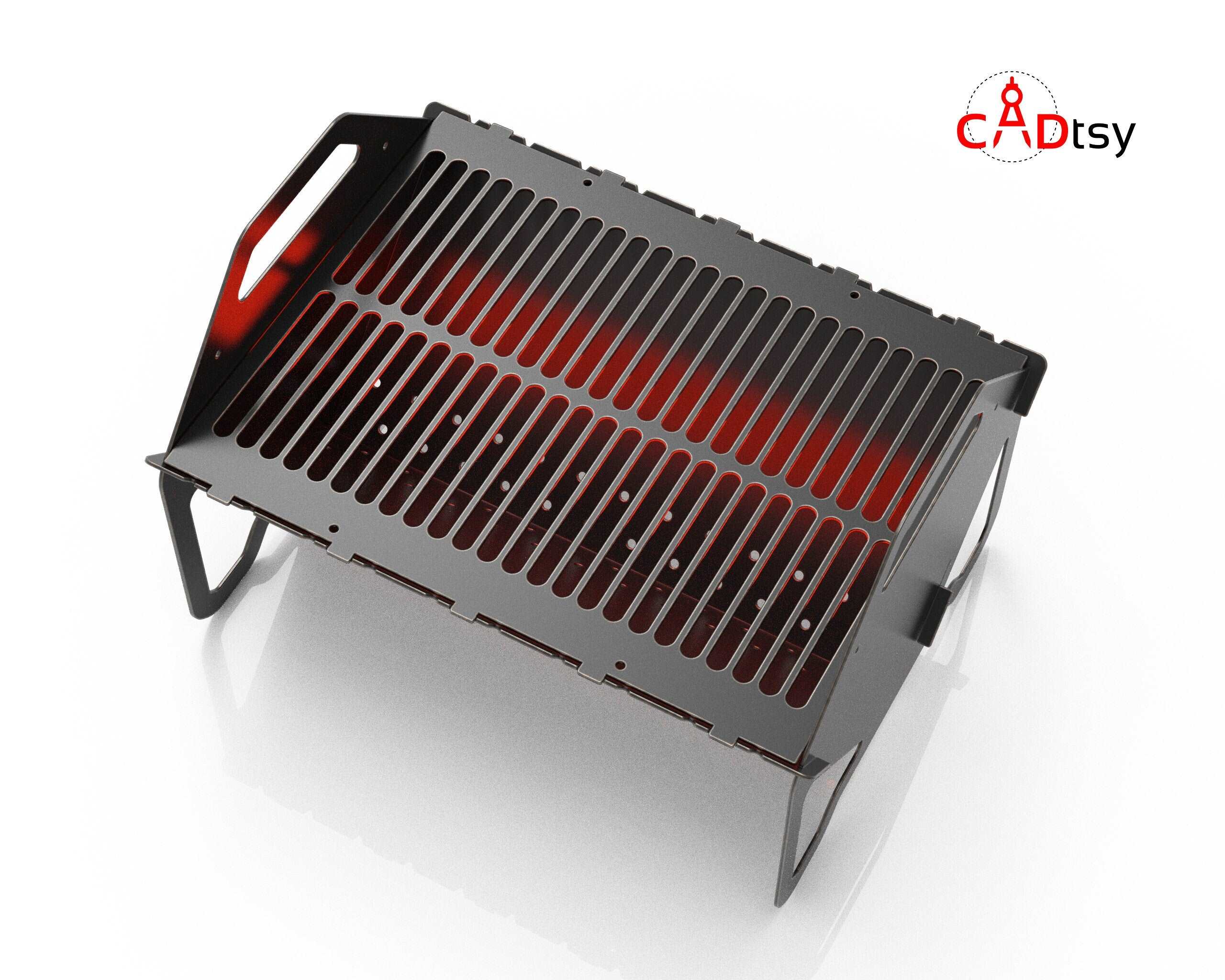

Enhance your outdoor adventures with our collapsible fire pit DXF and SVG files. We designed this digital plan for CNC laser and plasma cutting. It allows you to create the ultimate multi-function tool for camping, tailgating, or your own backyard.

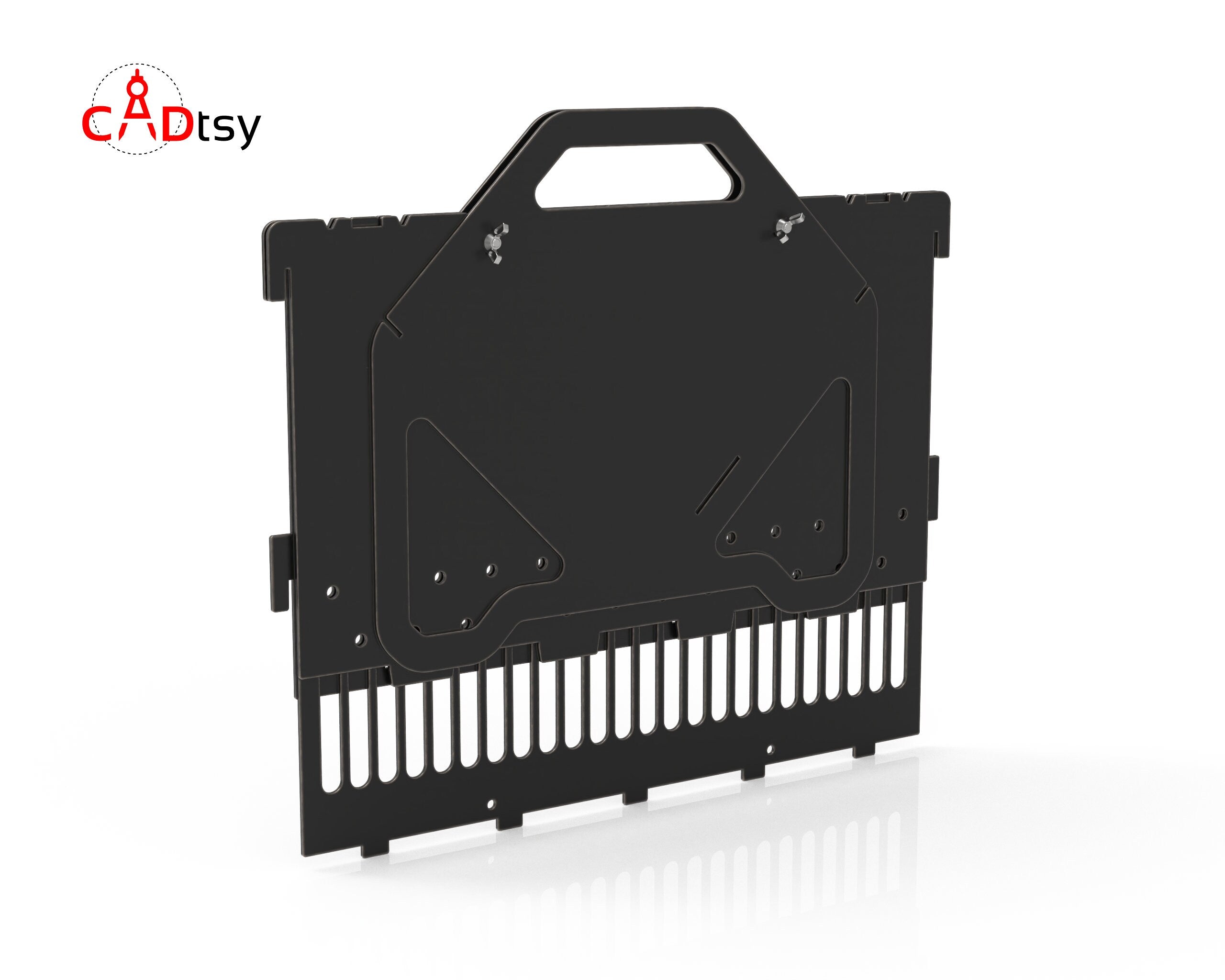

This clever flatpack design assembles in seconds without any tools. Consequently, it packs down completely flat, making it easy to store in your vehicle for any adventure. Forget bulky, inefficient gear. Therefore, this portable unit gives you a reliable fire pit, a sturdy cooking grill, and a functional camping stove, all in one compact package.
A 3-in-1 Portable Grill DXF Design

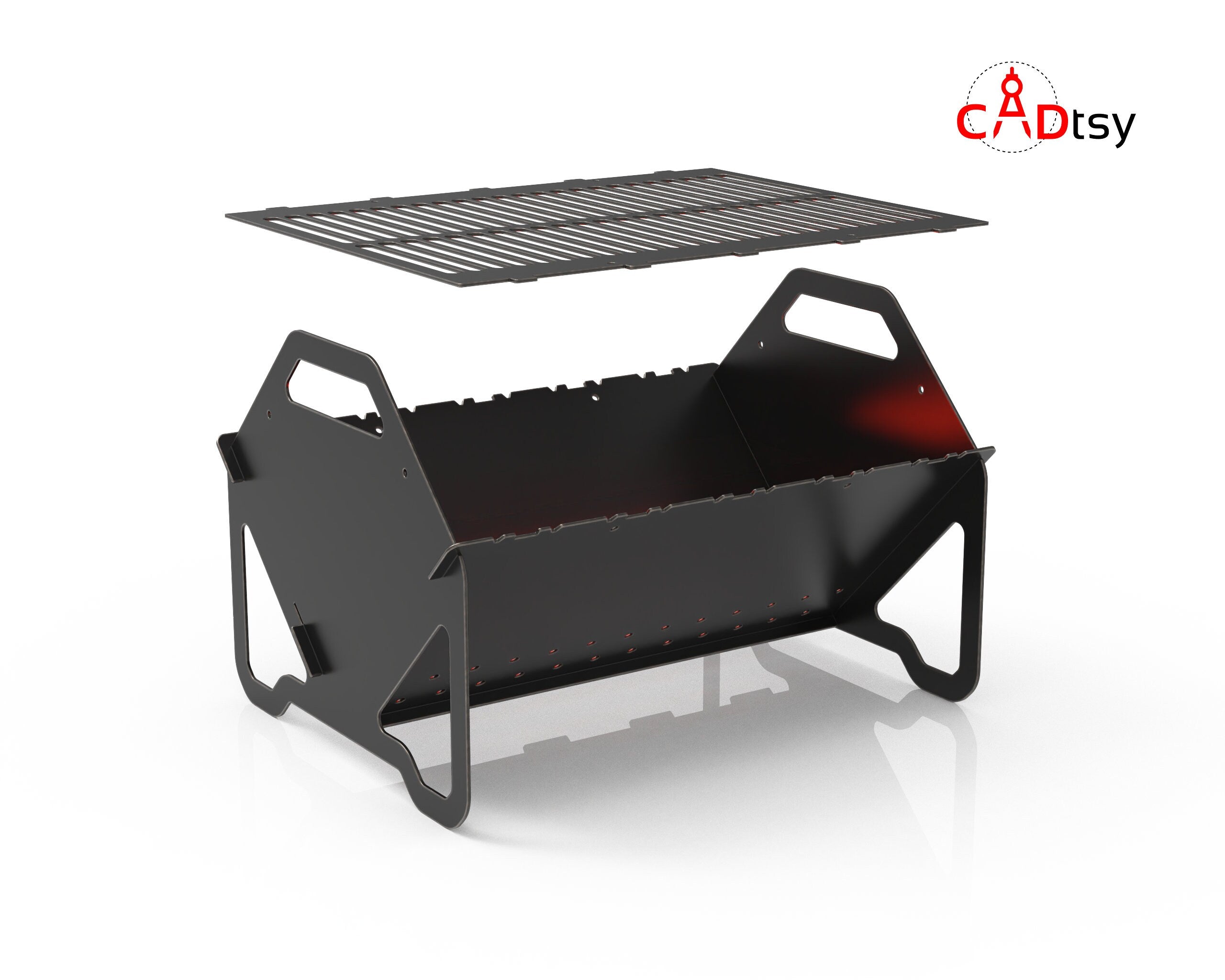

We designed this CNC plasma fire pit to be the perfect companion for any outdoor enthusiast. Its interlocking pieces create a strong and stable base for a fire or for cooking. In short, it’s a must-have piece of gear for convenience and style.
Your Collapsible Fire Pit DXF Plan Details
We have engineered every aspect of this plan for a flawless result from your CNC machine.
-

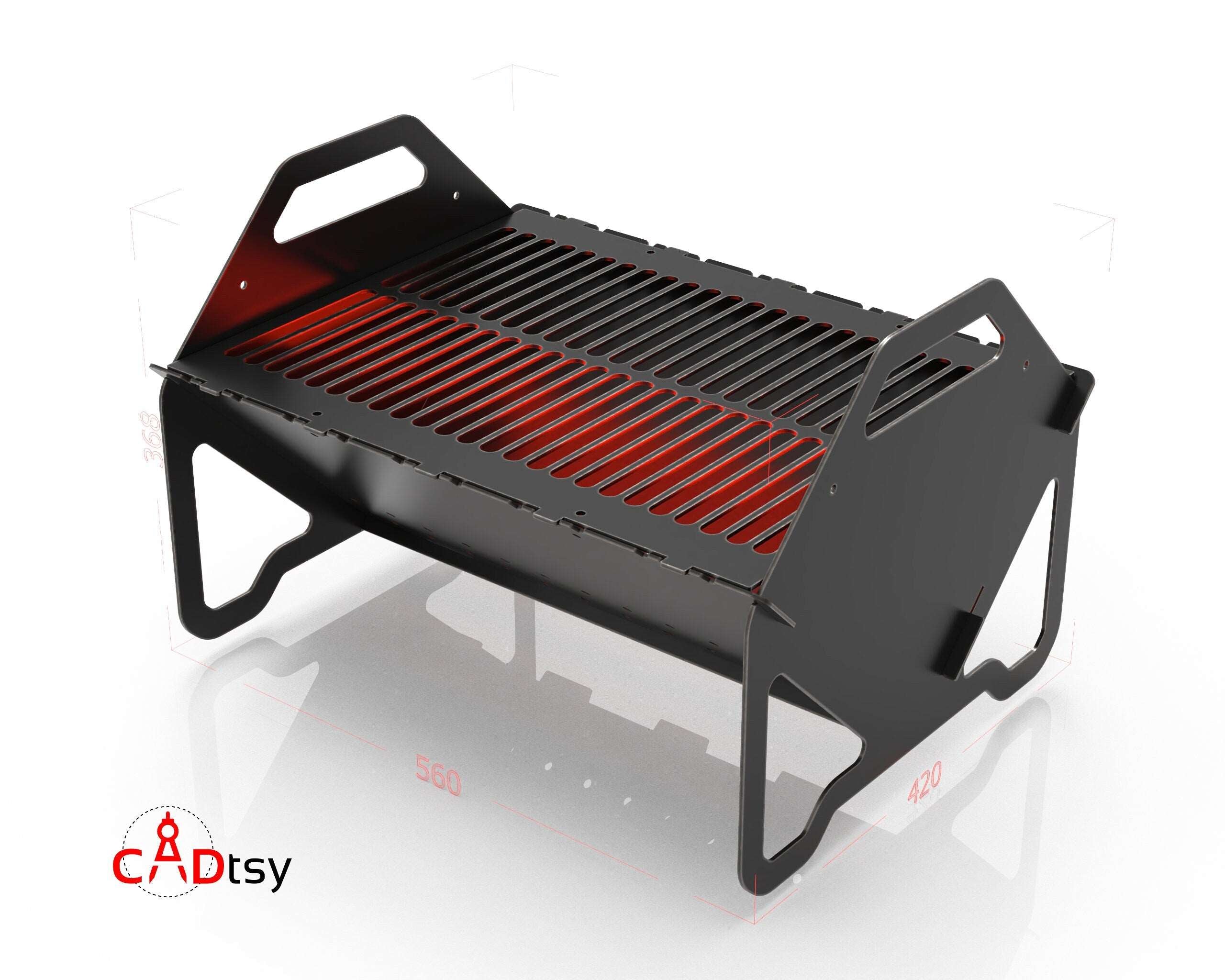

Final Assembled Dimensions: Height: 14.5" (368 mm), Width: 22" (560 mm), Depth: 16.5" (420 mm).
-
Assembled Weight: Approx. 33lb (15 kg) when cut from 11 Gauge (3.0 mm) steel.
-
Recommended Materials: This collapsible fire pit DXF plan is ideal for 11 Gauge (3.0 mm) or 13 Gauge (2.5 mm) sheet metal.
-
Required Operations: In addition, this project requires cutting on a CNC Laser, Plasma, or Waterjet machine. No bending is required.
-
Included File Formats: Finally, your download includes DXF, SVG, and PDF files for maximum software compatibility.
Download your collapsible fire pit DXF file today. Start building a versatile and essential piece of outdoor gear with CADtsy.
⚠️ Important Information
• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.
⚠️ Legal Information
Commercial Use: These DXF plans are for personal projects or small business ventures (physical items only).
Intellectual Property: Modifying, reselling, or distributing the digital plasma dxf files is strictly prohibited. All media is protected by copyright. Unauthorized digital resale or redistribution is illegal and may result in legal action.
⚠️ Technical Support & Scaling
• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
