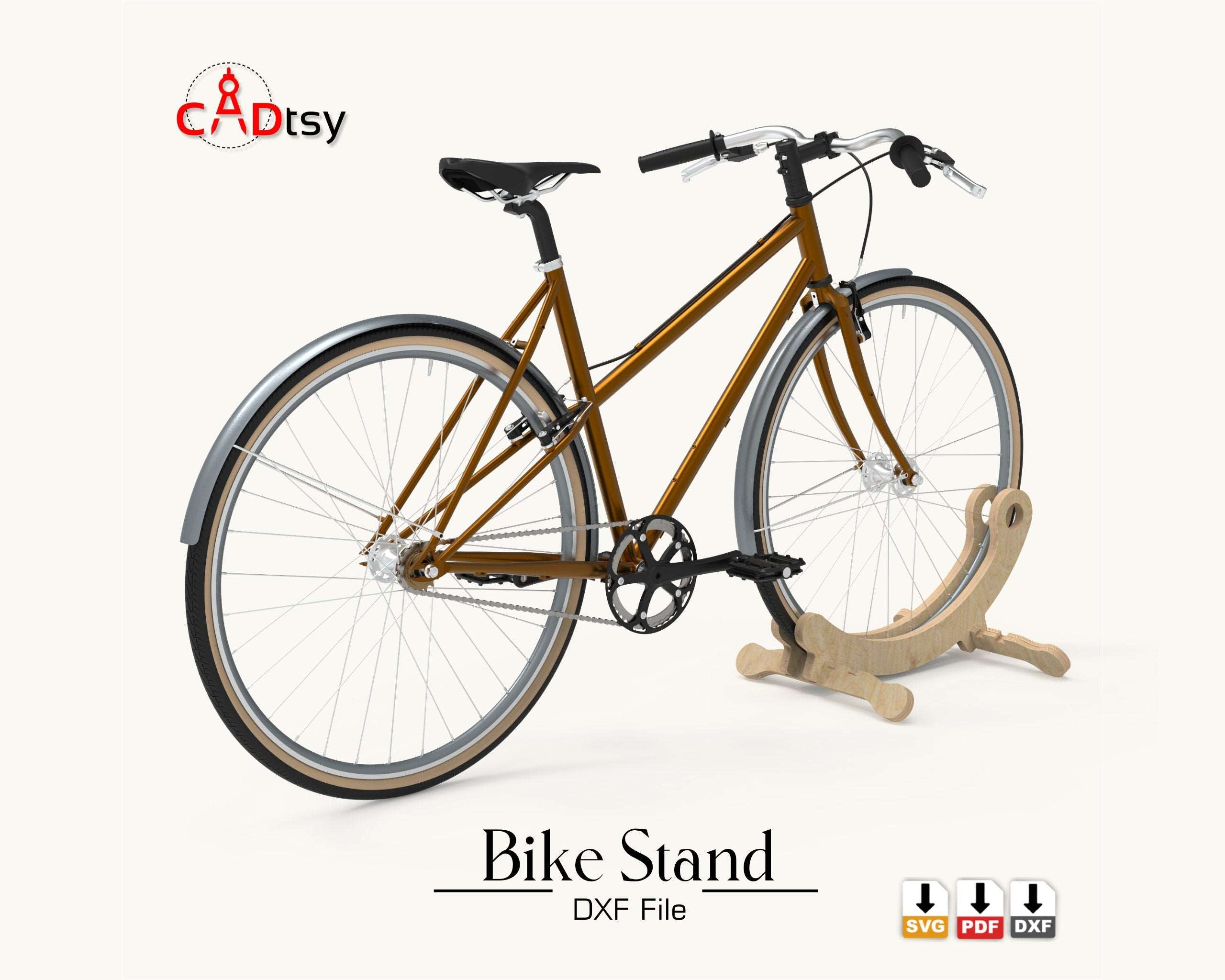

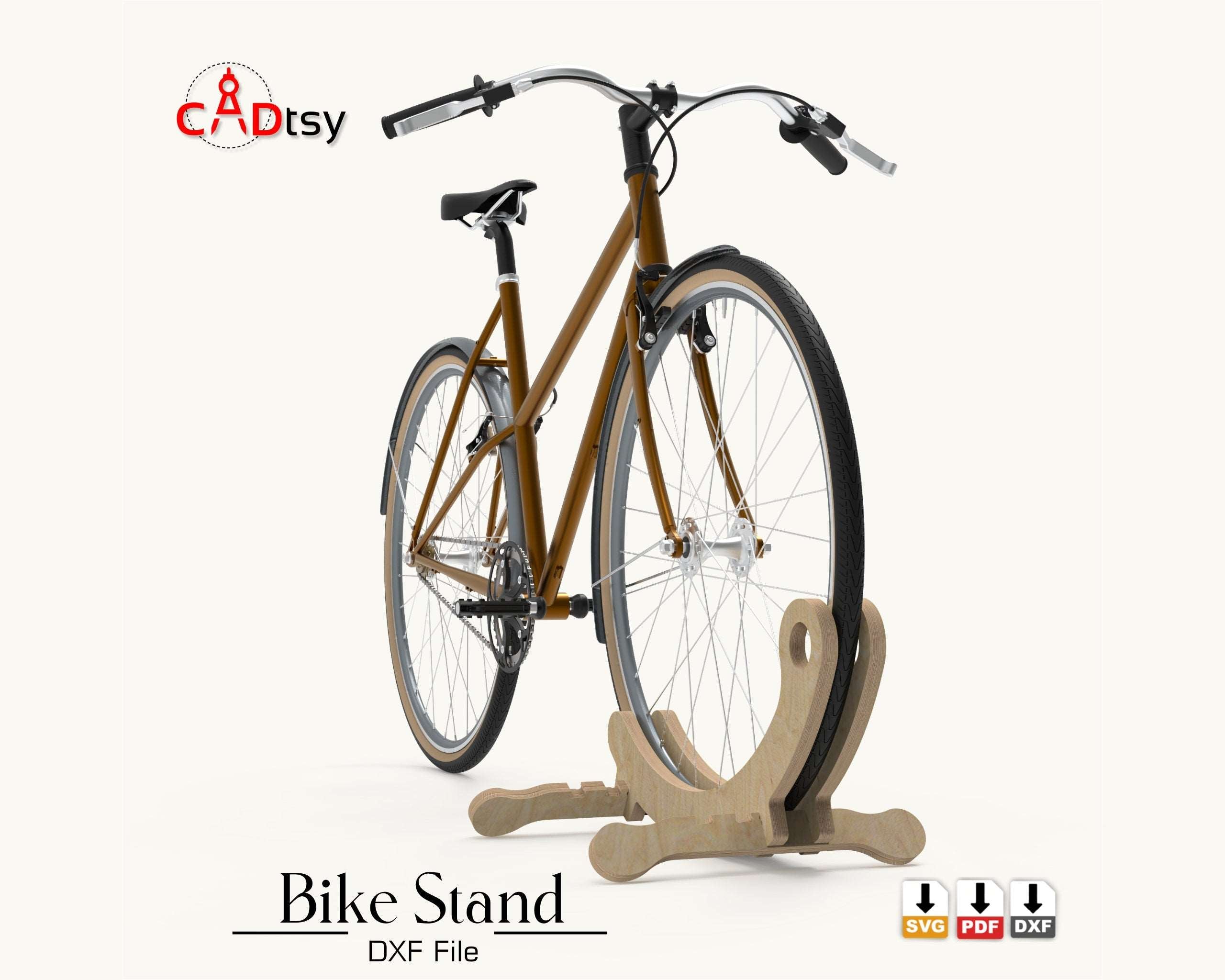

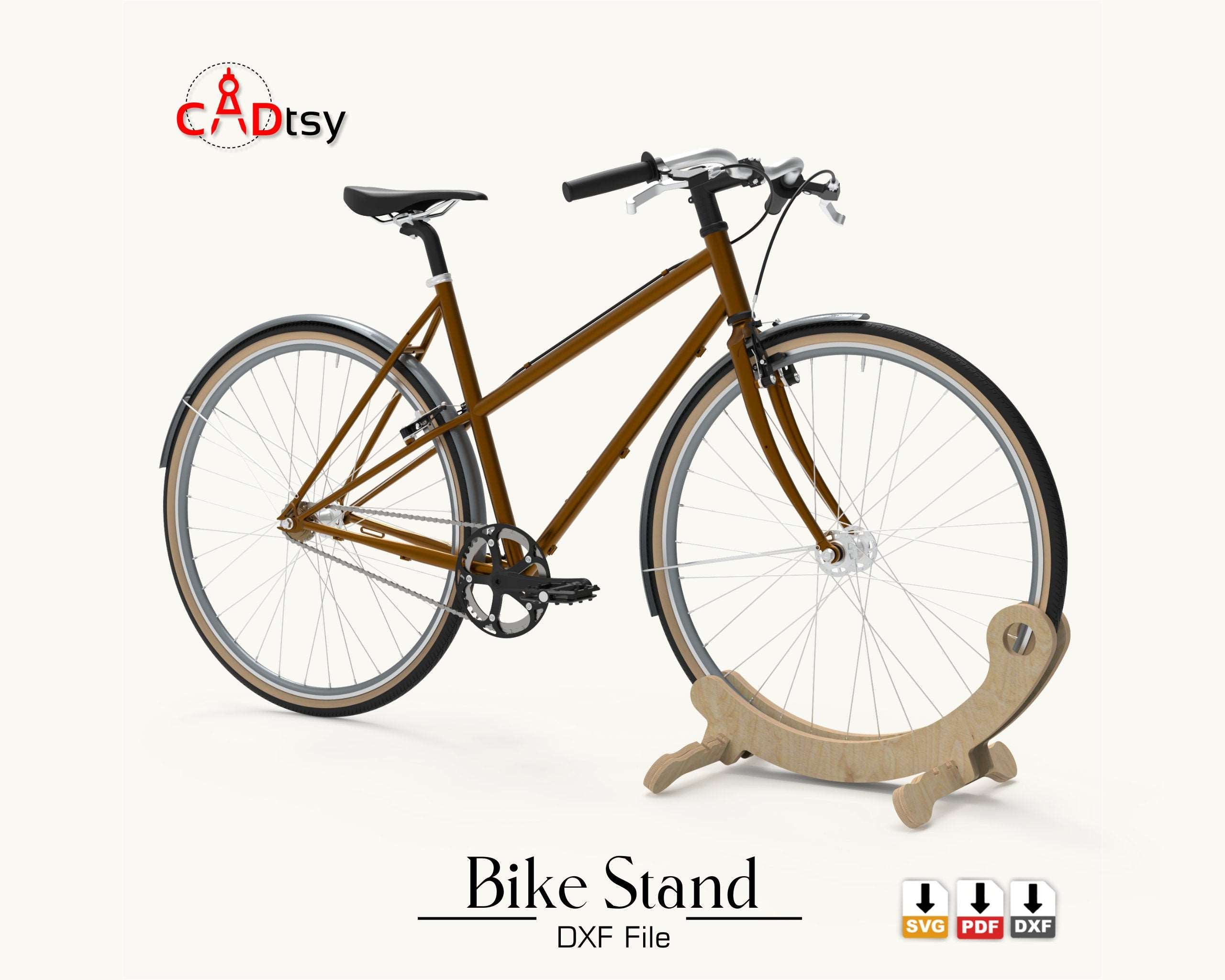

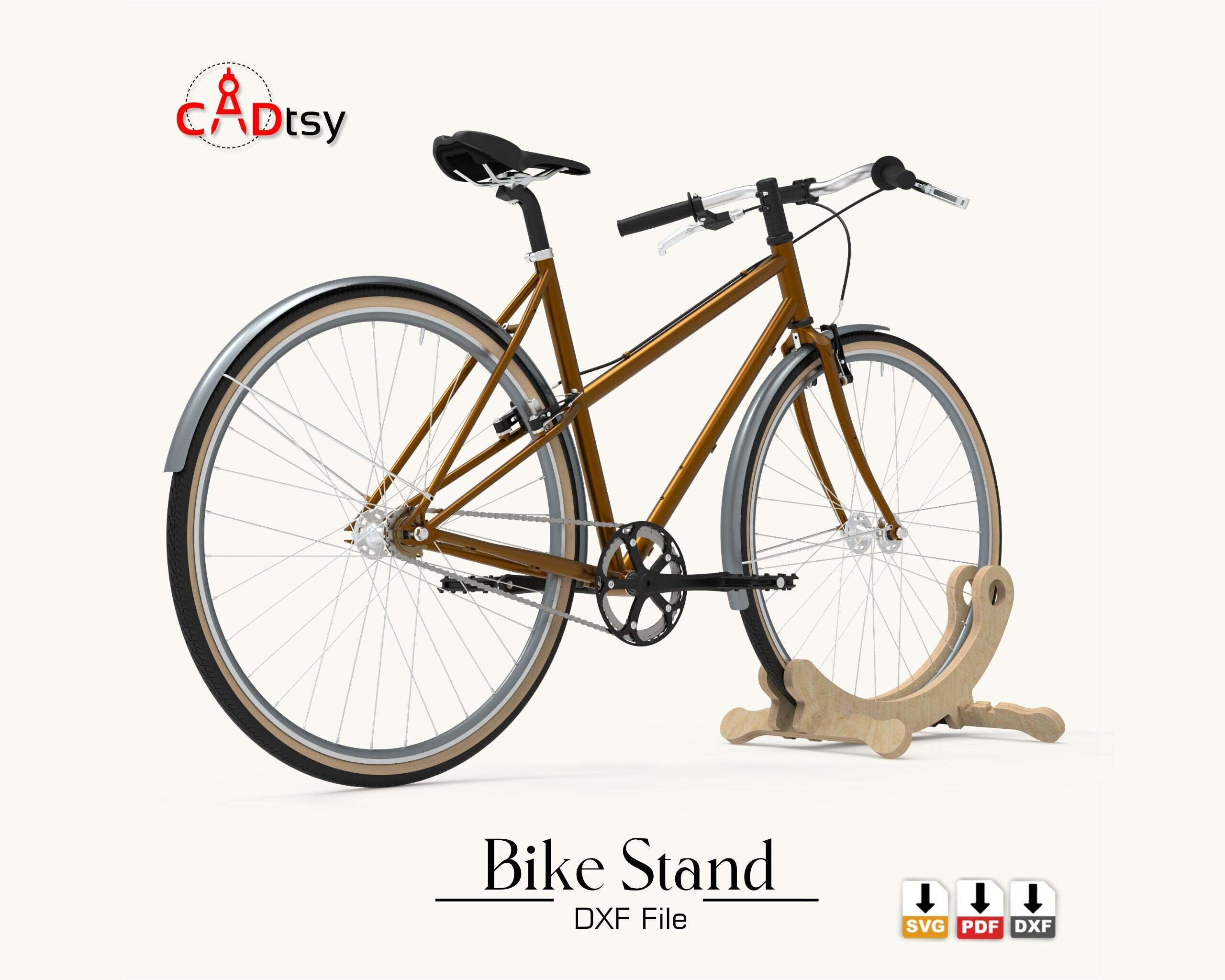

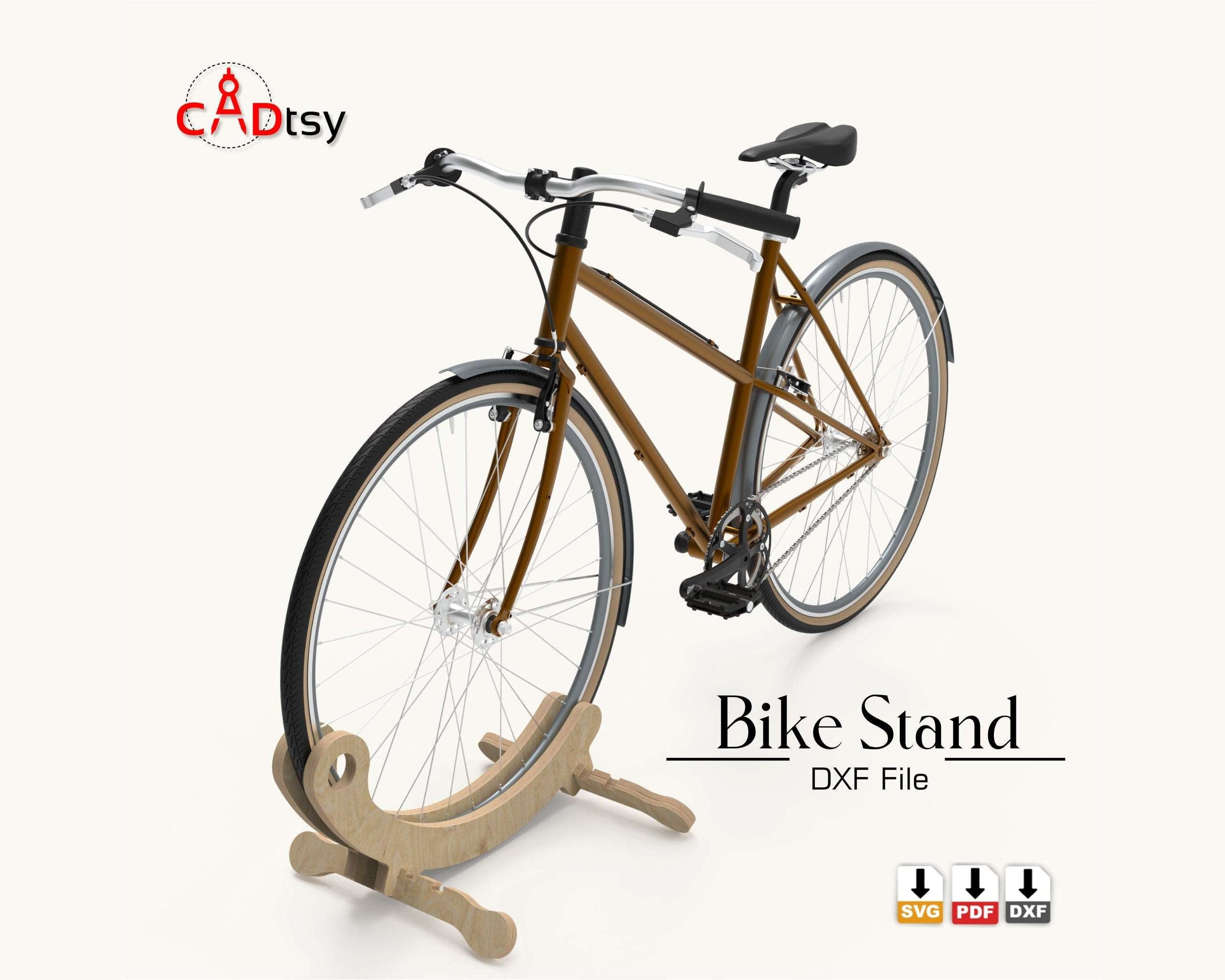

Bike Floor Stand / Bicycle Holder Rack DXF / SVG - CNC Router Cutting Files
Safeguard and display your bicycle with our bike floor stand DXF and SVG files. This digital plan allows you to create a sturdy, stylish, and practical storage solution for any cycling enthusiast using your CNC router.
Stop leaning your bike against the wall where it can get scratched or fall over. A dedicated floor stand is the best way to protect your investment. Therefore, this project is essential for keeping your bike safe, secure, and ready for your next ride. This bicycle holder rack SVG plan creates an organized space in your home, apartment, or garage. Consequently, it prevents clutter and damage.

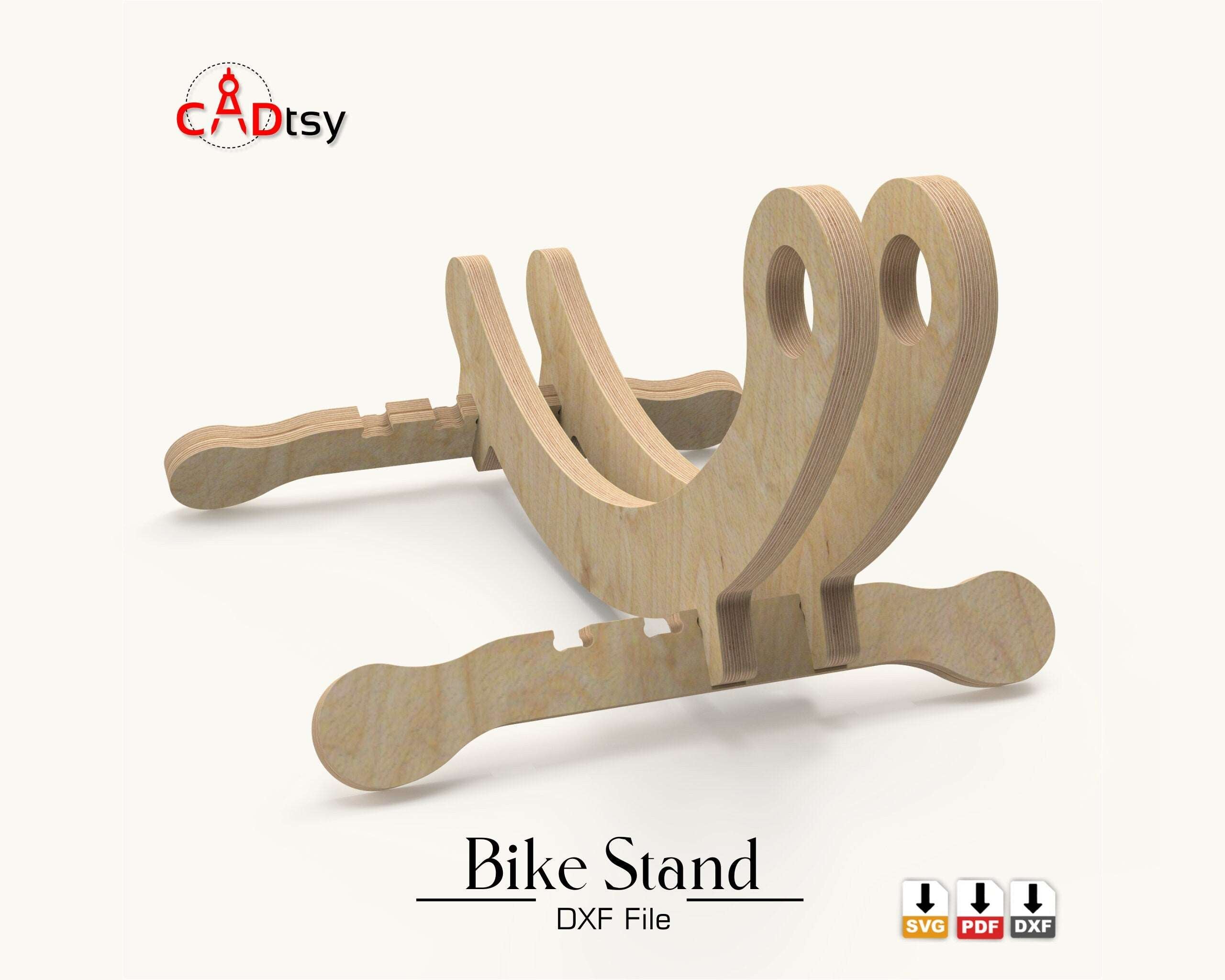

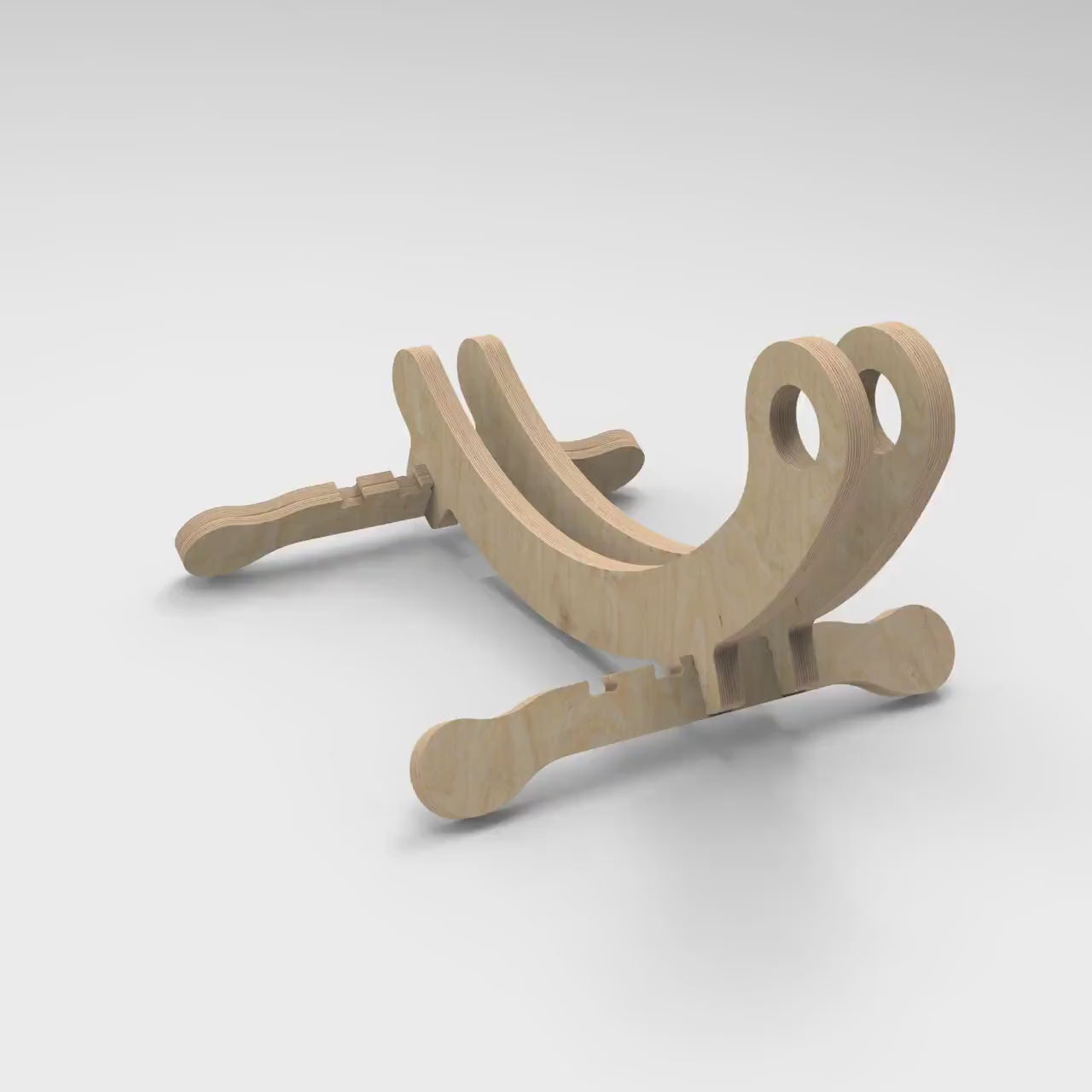

We designed this plan for a simple build and a minimalist aesthetic that looks great anywhere. The interlocking plywood pieces create a stable base that holds your bike securely. In short, it’s a functional and attractive CNC router project.
We have engineered every aspect of this bike floor stand DXF plan for a flawless result from your CNC router.
Final Assembled Dimensions: Height: 11.8" (300 mm), Width: 23.3" (591 mm), Depth: 15.7" (400 mm).
Recommended Materials: This project is designed for 3/4" (19 mm) plywood.
Required Operations: In addition, this project requires cutting on a CNC Router. We designed the corners for router bits up to ø 8 mm.
Included File Formats: Finally, your download includes DXF, SVG, and PDF files for maximum software compatibility.
Download your bike floor stand DXF file today. Start creating a high-quality, custom storage solution for your bicycle with CADtsy.
• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.
All digital designs, blueprints, templates, and cutting files (including DXF, SVG, and PDF formats) presented on this platform are safeguarded by the Federal Copyright Act and international intellectual property laws. CADtsy maintains full title, copyright, and ownership of these unique creations.
Any unauthorized use, reproduction, or distribution of these files, whether in whole or in part, is expressly prohibited without prior written consent from CADtsy.
Purchasing a digital design from this platform grants the buyer a limited, non-exclusive, non-transferable license for personal use under the following terms:
✔️ Permitted Use:
• The construction of a single (1) physical item per file purchase.
✔️ Prohibited Use:
• Reproduction or manufacturing of this design for commercial purposes, mass production, or resale of the physical product is strictly prohibited.
• Sharing, reselling, renting, or distributing the digital files (DXF, SVG, PDF, etc.) in any format is strictly prohibited.
Note: This license does not transfer any copyright or ownership interests to the buyer, except for the specific purpose of a single personal build. For commercial manufacturing rights or production licensing, please contact CADtsy directly to arrange a commercial licensing agreement.
• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
