Spray Gun Holder DXF Plasma Cutting File
$7.08 USD
Sale price
$7.08 USD
Regular price
$11.47 USD
Taxes included.
Shipping calculated at checkout.

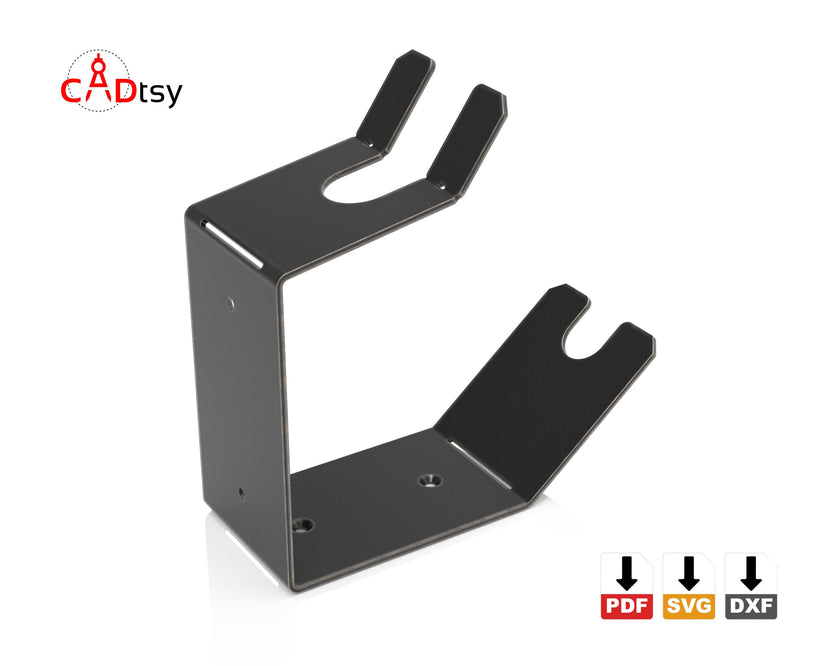

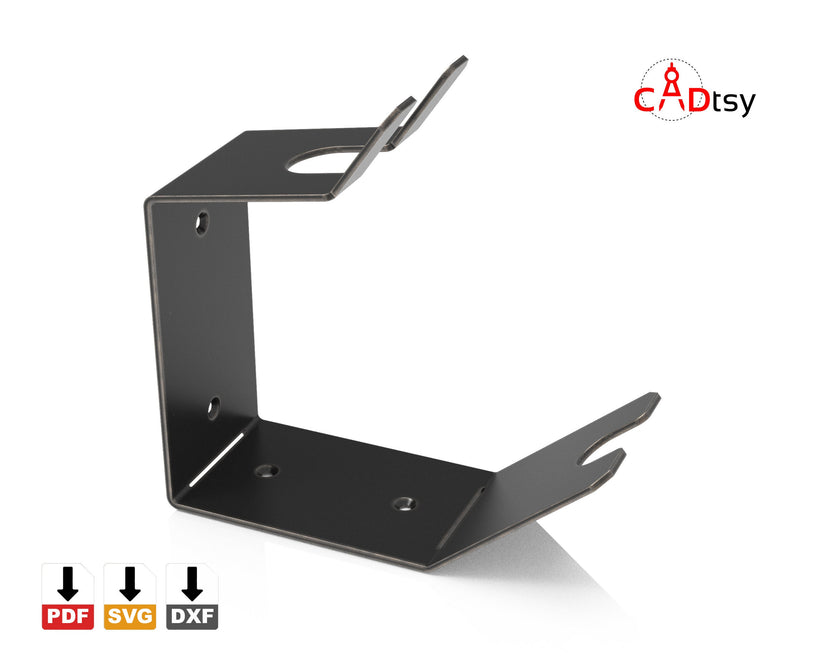

Spray Gun Holder DXF files is a downloadable CNC-ready file package for building a wall-mounted sheet metal spray gun holder, paint gun bracket, or HVLP gun storage rack. The assembled holder is approximately 6.9 in high, 6.9 in wide, and 2.8 in deep.
What You Get
- DXF, SVG, and PDF files for the spray gun holder design.
- CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
- PDF reference documentation for the spray gun holder project.
- No physical spray gun holder, steel, spray gun, mounting hardware, fasteners, or finished organizer is shipped.
Project Features
- Wall-mounted holder layout for paint booths, mixing rooms, garages, and automotive workshop storage.
- Designed to support a gravity-cup spray gun or tool throat while preserving wall clearance for fluid lines.
- Slot cuts are included on bending lines to support clean manual bending.
Finished Size
- Approximate assembled height: 6.9 in / 175 mm.
- Approximate assembled width: 6.9 in / 175 mm.
- Approximate assembled depth: 2.8 in / 70 mm.
Recommended Materials
- 13 gauge / 2.4 mm steel.
- 14 gauge / 2.0 mm steel.
- 16 gauge / 1.5 mm steel.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
- Verify kerf, bend approach, mounting holes, material thickness, wall fasteners, spray gun fit, and machine settings before fabrication.
- Confirm wall mounting strength and clearance for the specific spray gun before use.
