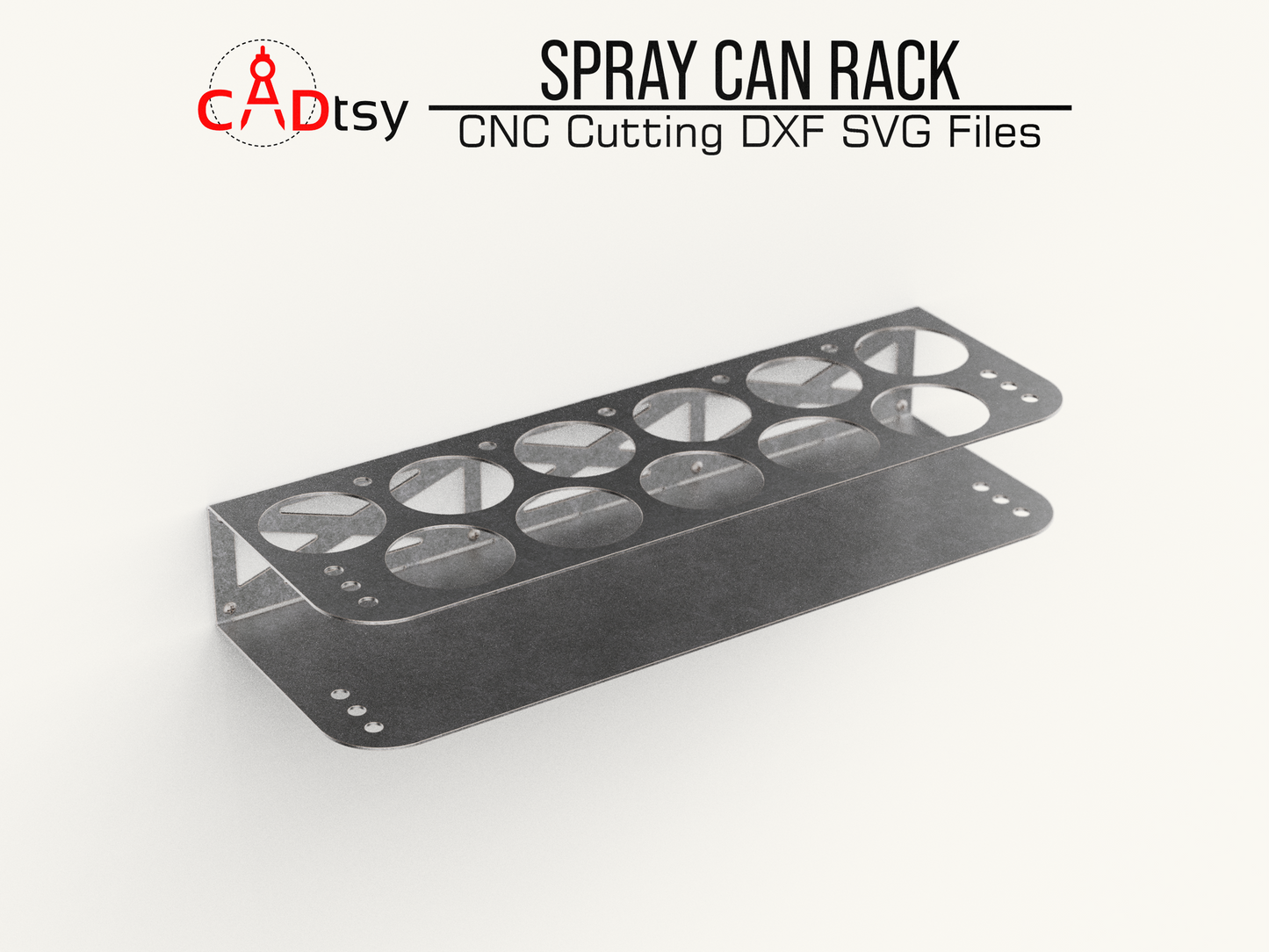

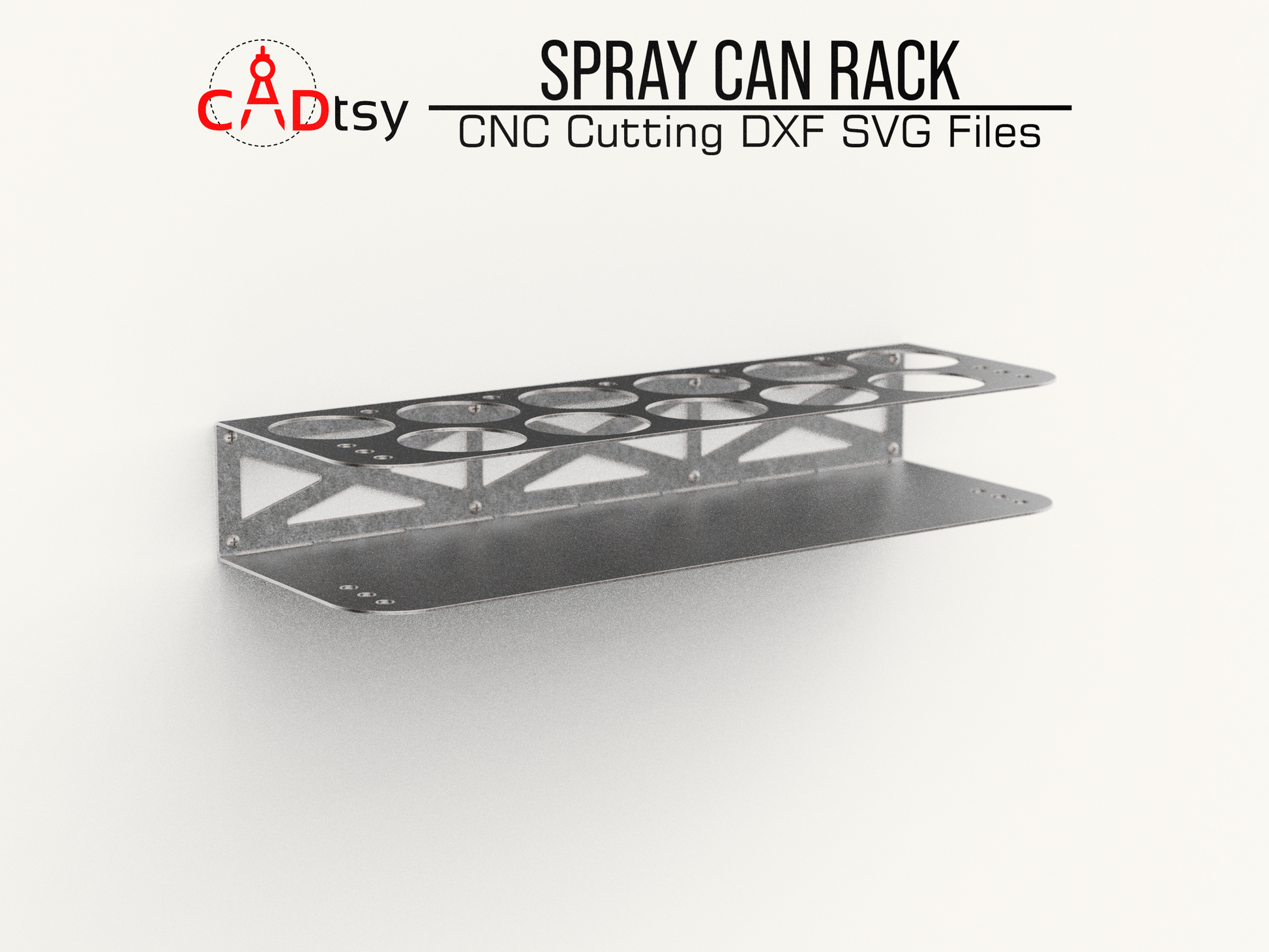

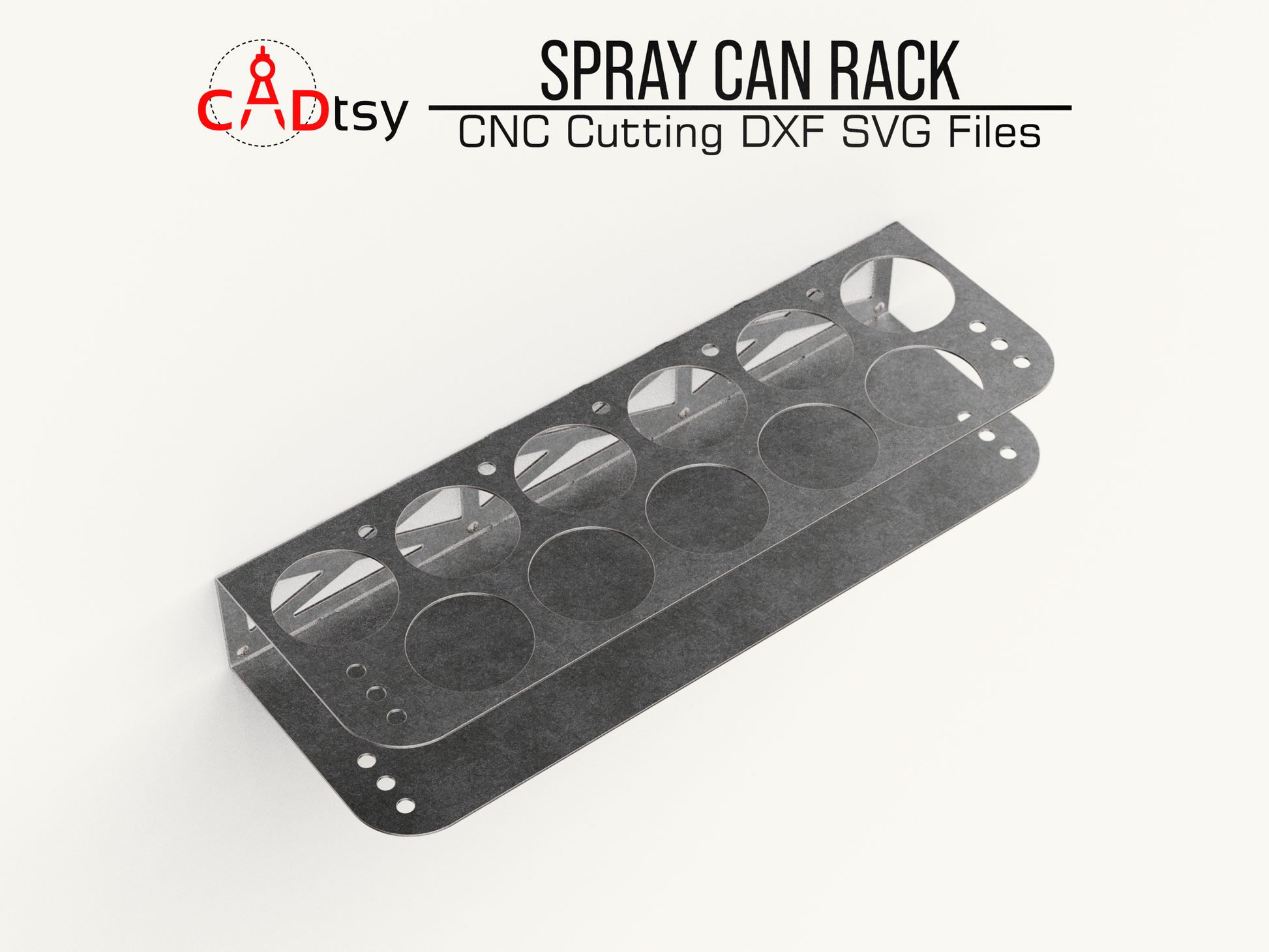

Organize your workshop efficiently with our spray can rack DXF and SVG files. This digital plan allows you to create a durable, wall-mounted holder for up to 11 standard aerosol cans.

Stop wasting time searching for the right color. A cluttered collection of spray cans can be frustrating and inefficient. Therefore, this project is essential for any serious hobbyist or professional. This paint can holder SVG and DXF plan helps you keep your paints and other aerosols neatly arranged and instantly accessible. Consequently, you can maintain a cleaner and more productive workspace.

A Workshop Tool Organizer for Your Space

We designed this plan for both durability and ease of assembly. It's the perfect solution for any garage, workshop, or tool shed. In short, it’s a simple project with a major impact on your daily workflow.

Your Spray Can Rack DXF Plan Specifications

We have engineered every aspect of this plan for a flawless result from your CNC machine.

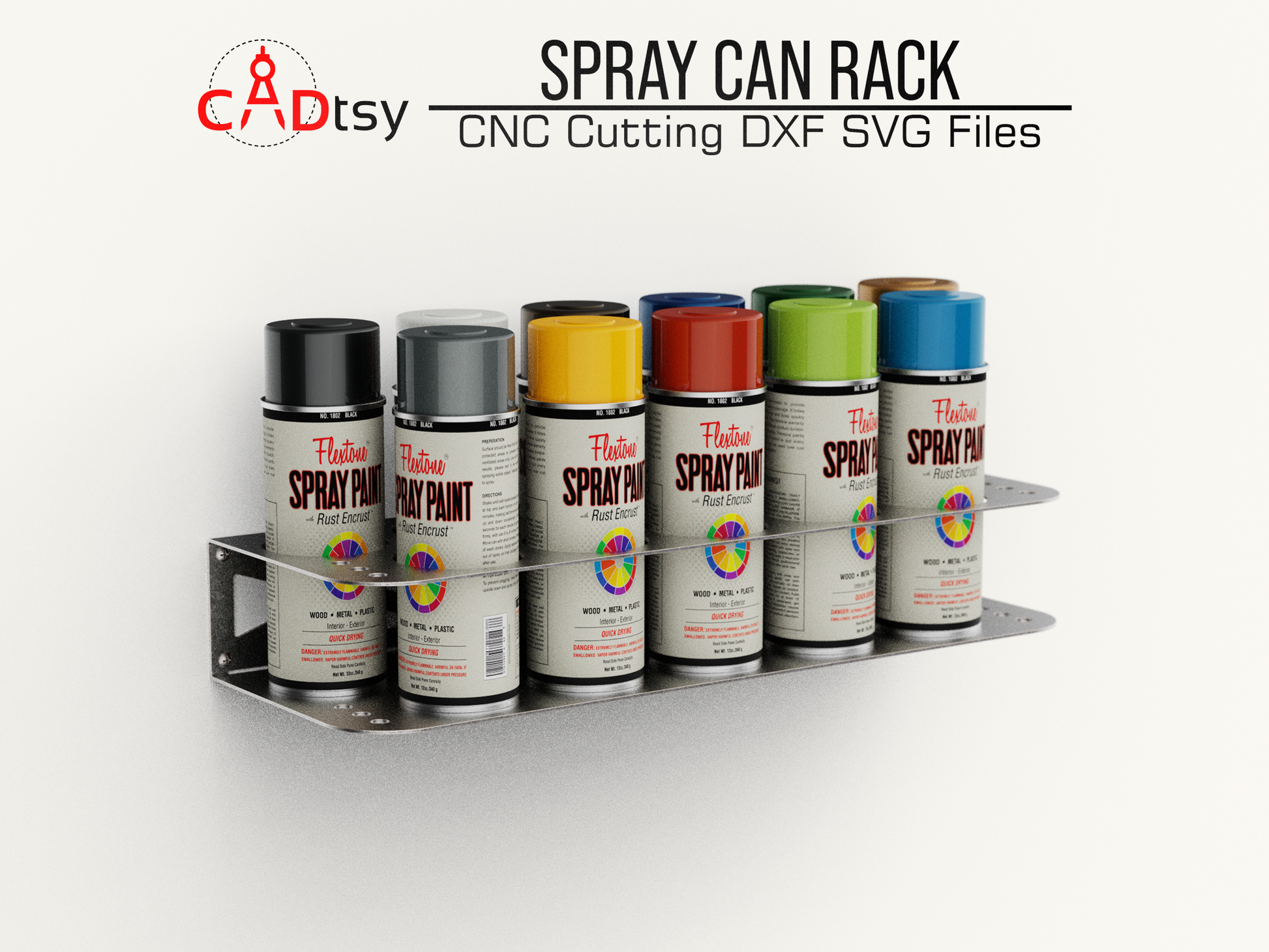

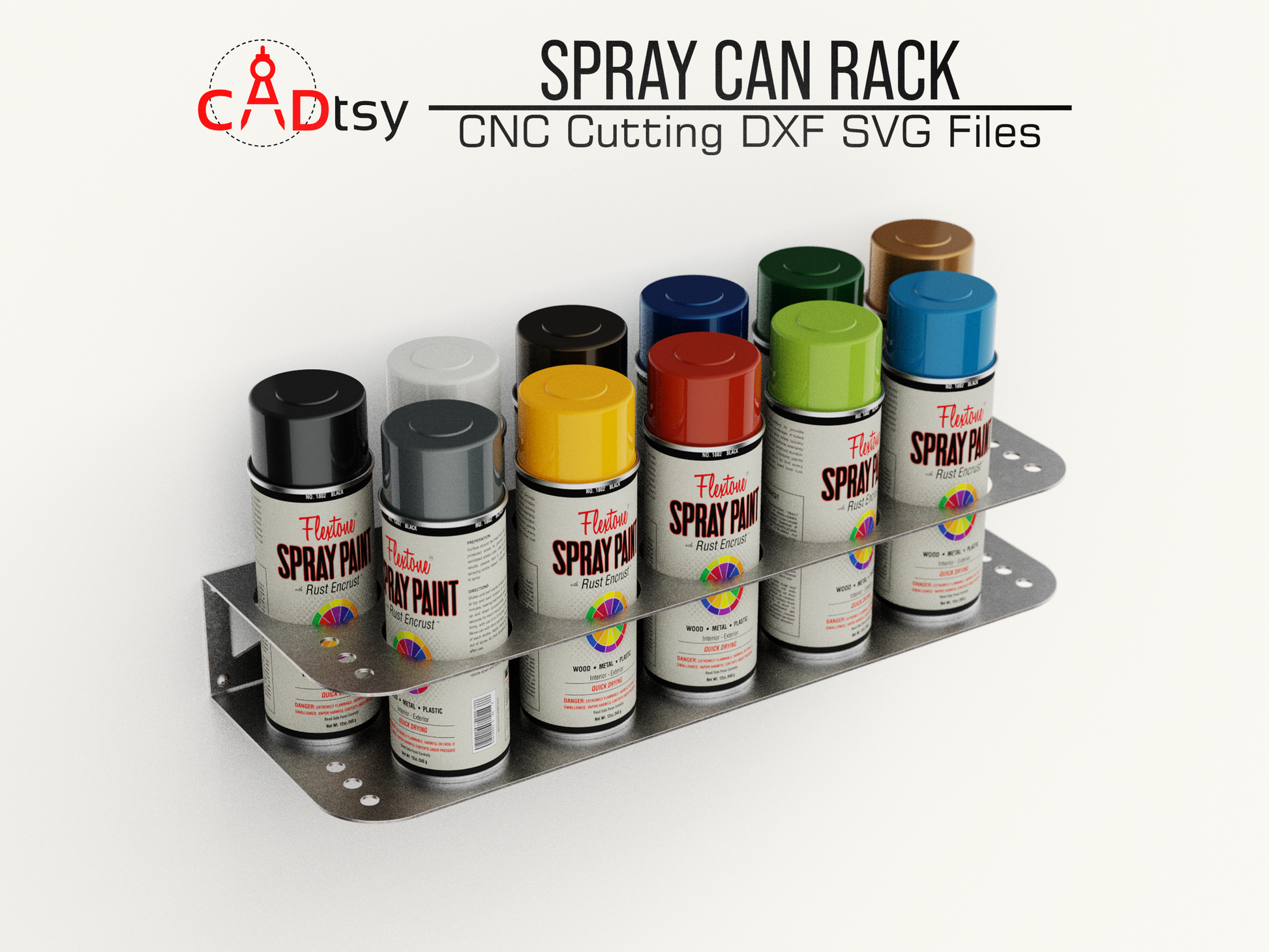

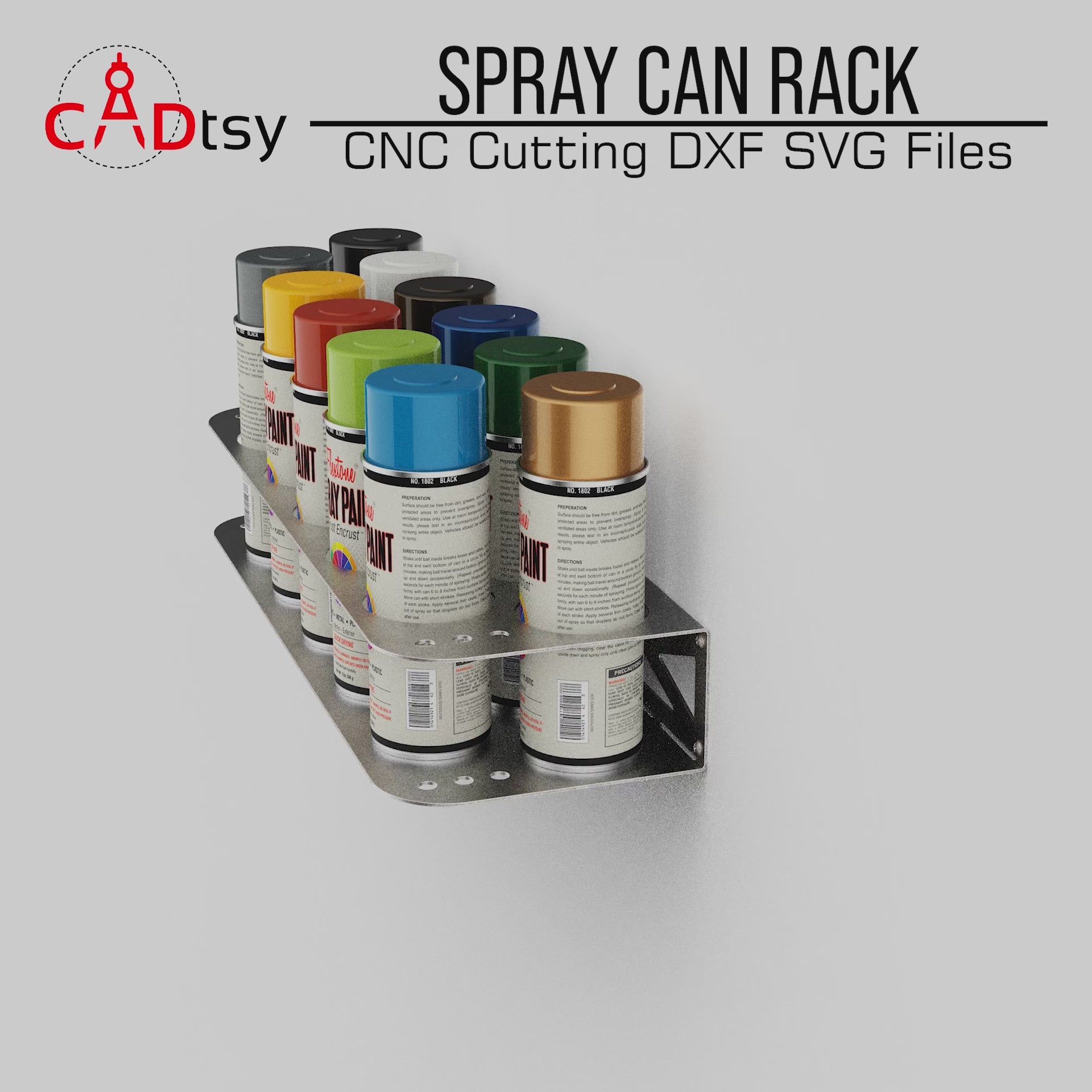

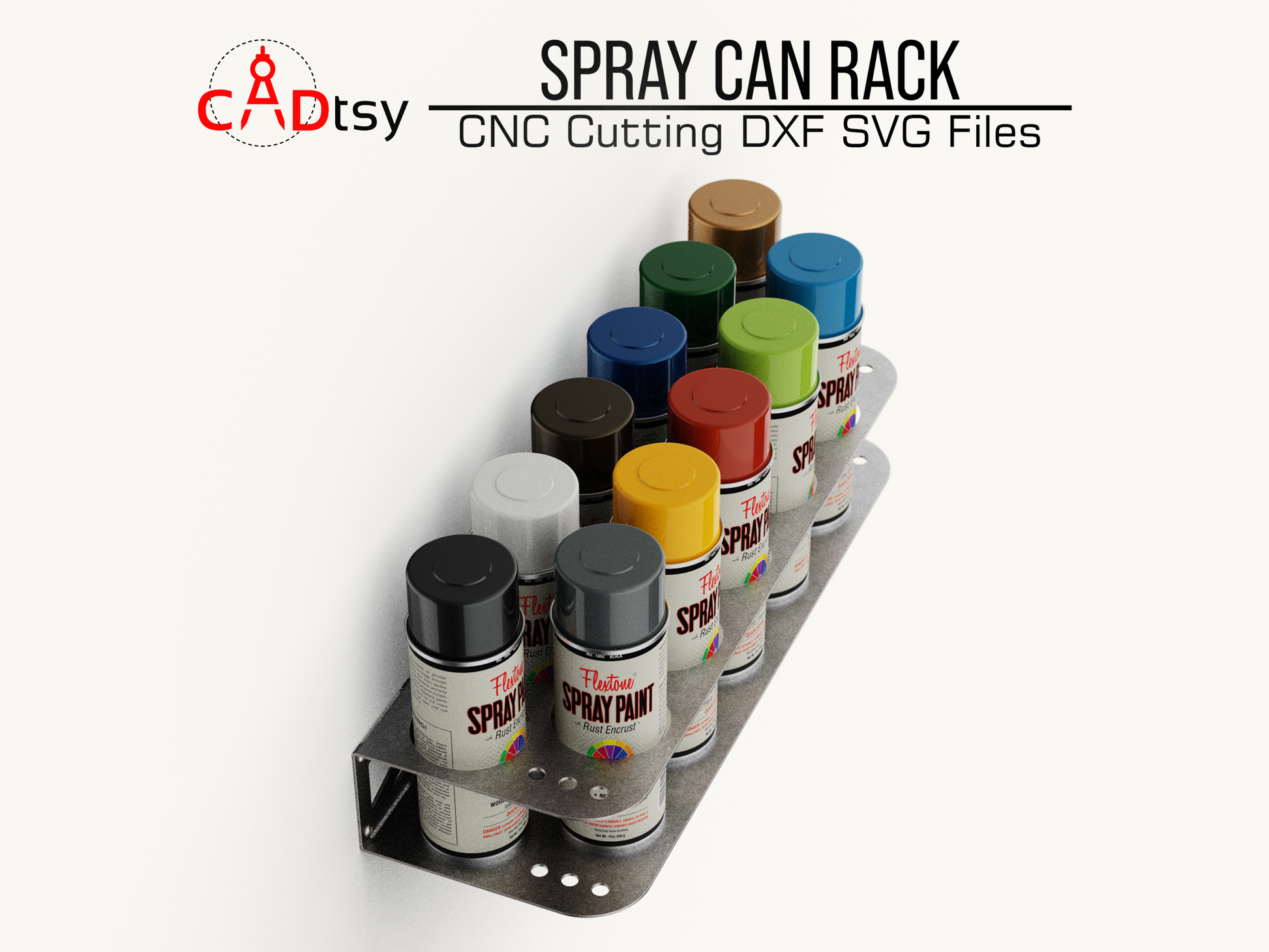

Capacity: This design securely holds up to 11 standard aerosol cans.
Final Assembled Dimensions: This spray can rack DXF plan creates a rack that is 19.7" wide, 3.1" high, and 6.7" deep (500 x 80 x 170 mm).
Recommended Materials: This project is ideal for 13 Gauge (2.5 mm), 14 Gauge (2.0 mm), or 16 Gauge (1.6 mm) sheet metal.

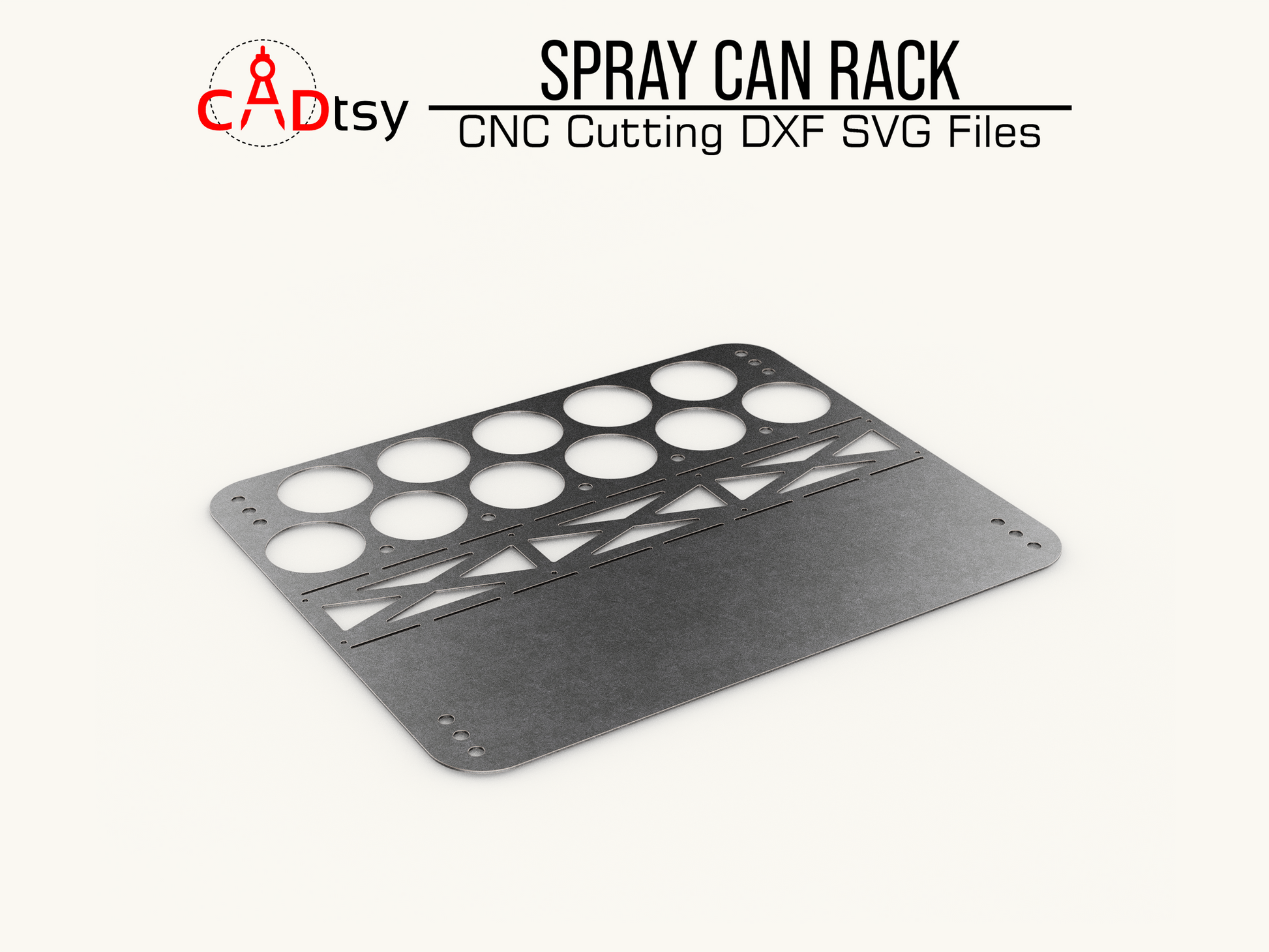

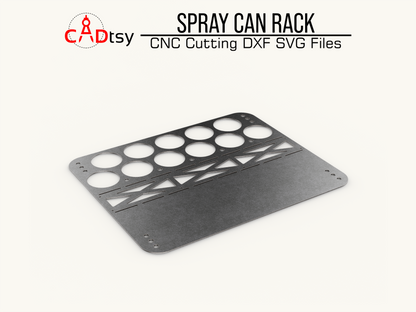

Required Operations: In addition, this project requires CNC cutting (Plasma or Laser) and simple sheet metal bending using the pre-cut slots.
Included File Formats: Finally, your download includes DXF, SVG, and PDF files for maximum software compatibility.

Download your spray can rack DXF file today. Start creating your custom tool organizer and bring a new level of order to your workspace with CADtsy.

• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.

All digital designs, blueprints, templates, and cutting files (including DXF, SVG, and PDF formats) presented on this platform are safeguarded by the Federal Copyright Act and international intellectual property laws. CADtsy maintains full title, copyright, and ownership of these unique creations.

Any unauthorized use, reproduction, or distribution of these files, whether in whole or in part, is expressly prohibited without prior written consent from CADtsy.

Limited License Terms

Purchasing a digital design from this platform grants the buyer a limited, non-exclusive, non-transferable license for personal use under the following terms:

✔️ Permitted Use:
• The construction of a single (1) physical item per file purchase.

✔️ Prohibited Use:
• Reproduction or manufacturing of this design for commercial purposes, mass production, or resale of the physical product is strictly prohibited.
• Sharing, reselling, renting, or distributing the digital files (DXF, SVG, PDF, etc.) in any format is strictly prohibited.

Note: This license does not transfer any copyright or ownership interests to the buyer, except for the specific purpose of a single personal build. For commercial manufacturing rights or production licensing, please contact CADtsy directly to arrange a commercial licensing agreement.

• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
