CNC Quick Reference Sheet - SVG Laser Cutting Files

Name: CNC Quick Reference Sheet - SVG Laser Cutting Files
Brand: CADtsy
SKU: WD-CNC-REF-CRT-001
Price: 5.00 USD
Availability: InStock

$5.00 USD

$5.00 USD $7.69 USD

Taxes included.

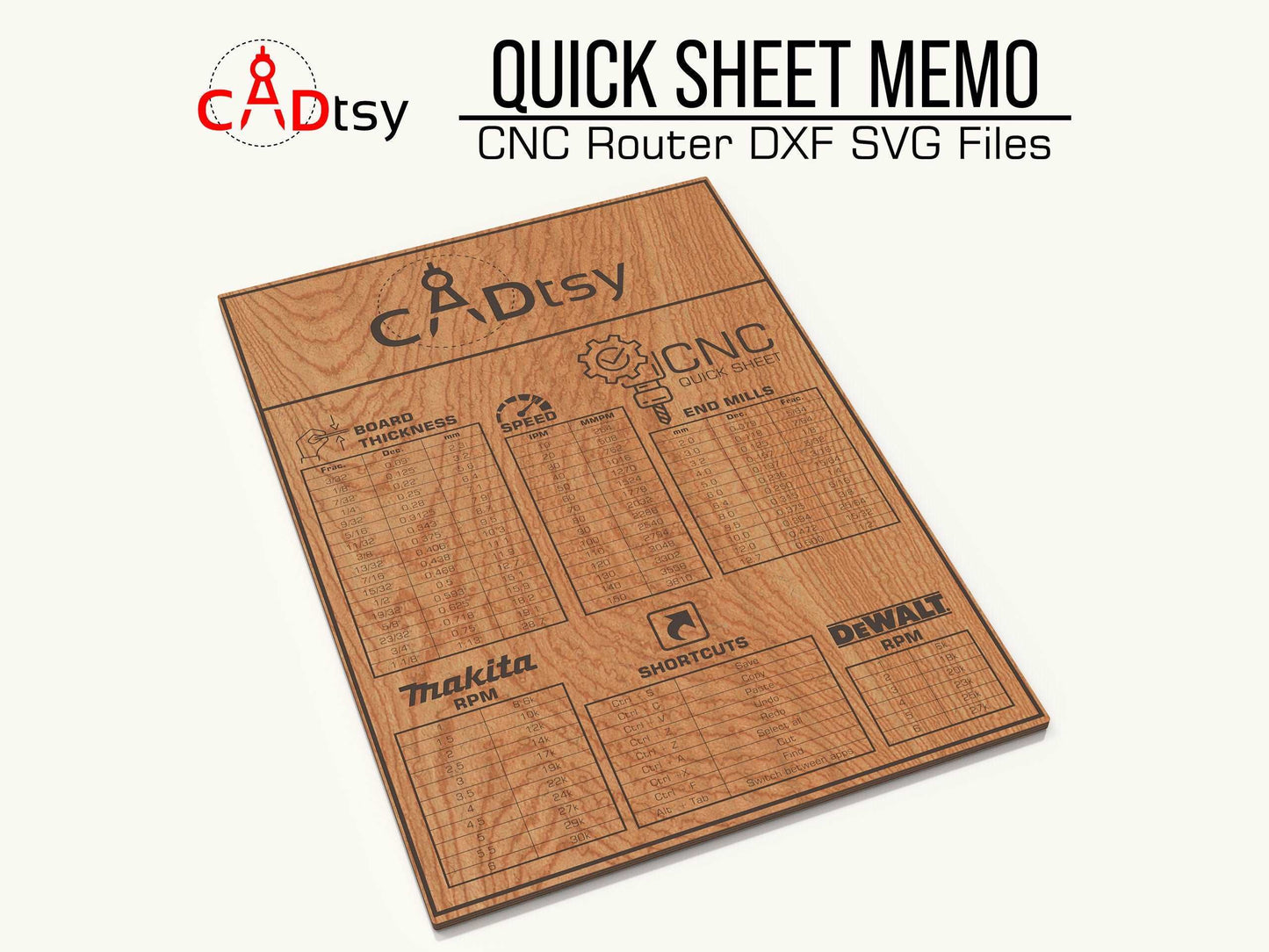

Optimize your workflow and reduce errors with our essential CNC quick reference sheet. This digital download provides SVG and DXF files for you to engrave or cut an indispensable tool for your workshop.

Stop pausing your projects to look up settings or formulas. Having critical information right at your fingertips saves time and improves the quality of your cuts. Therefore, this chart is a must-have for any serious hobbyist or professional. This CNC reference chart SVG is designed to be the perfect companion for your machine. Consequently, you can work faster and with greater confidence.

A Reference Chart for Popular CNCs

We designed this layout to be fully compatible with popular machines and software. For example, it is perfect for users of Glowforge, Shapeoko, Onefinity, and X-carve machines. In addition, it works seamlessly with Vectric Vcarve software.

Your CNC Quick Reference Sheet Details

We have engineered every aspect of this file for clarity and convenience.

Standard Size & Scalable: The design is provided in A5 size (148 x 210mm). However, you can easily scale it to any size that best suits your workspace or machine bed.
Essential Information: This CNC quick reference sheet includes placeholders and common formulas, making it a true workflow-enhancing tool.
Required Operations: Furthermore, this project requires engraving or cutting on a CNC Laser or Router.
Included File Formats: Finally, your download includes DXF, SVG, and PDF files for maximum software compatibility.

Download your CNC quick reference sheet file today. Start creating an essential tool that will streamline every future project with CADtsy.

• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.

All digital designs, blueprints, templates, and cutting files (including DXF, SVG, and PDF formats) presented on this platform are safeguarded by the Federal Copyright Act and international intellectual property laws. CADtsy maintains full title, copyright, and ownership of these unique creations.

Any unauthorized use, reproduction, or distribution of these files, whether in whole or in part, is expressly prohibited without prior written consent from CADtsy.

Limited License Terms

Purchasing a digital design from this platform grants the buyer a limited, non-exclusive, non-transferable license for personal use under the following terms:

✔️ Permitted Use:
• The construction of a single (1) physical item per file purchase.

✔️ Prohibited Use:
• Reproduction or manufacturing of this design for commercial purposes, mass production, or resale of the physical product is strictly prohibited.
• Sharing, reselling, renting, or distributing the digital files (DXF, SVG, PDF, etc.) in any format is strictly prohibited.

Note: This license does not transfer any copyright or ownership interests to the buyer, except for the specific purpose of a single personal build. For commercial manufacturing rights or production licensing, please contact CADtsy directly to arrange a commercial licensing agreement.

• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
