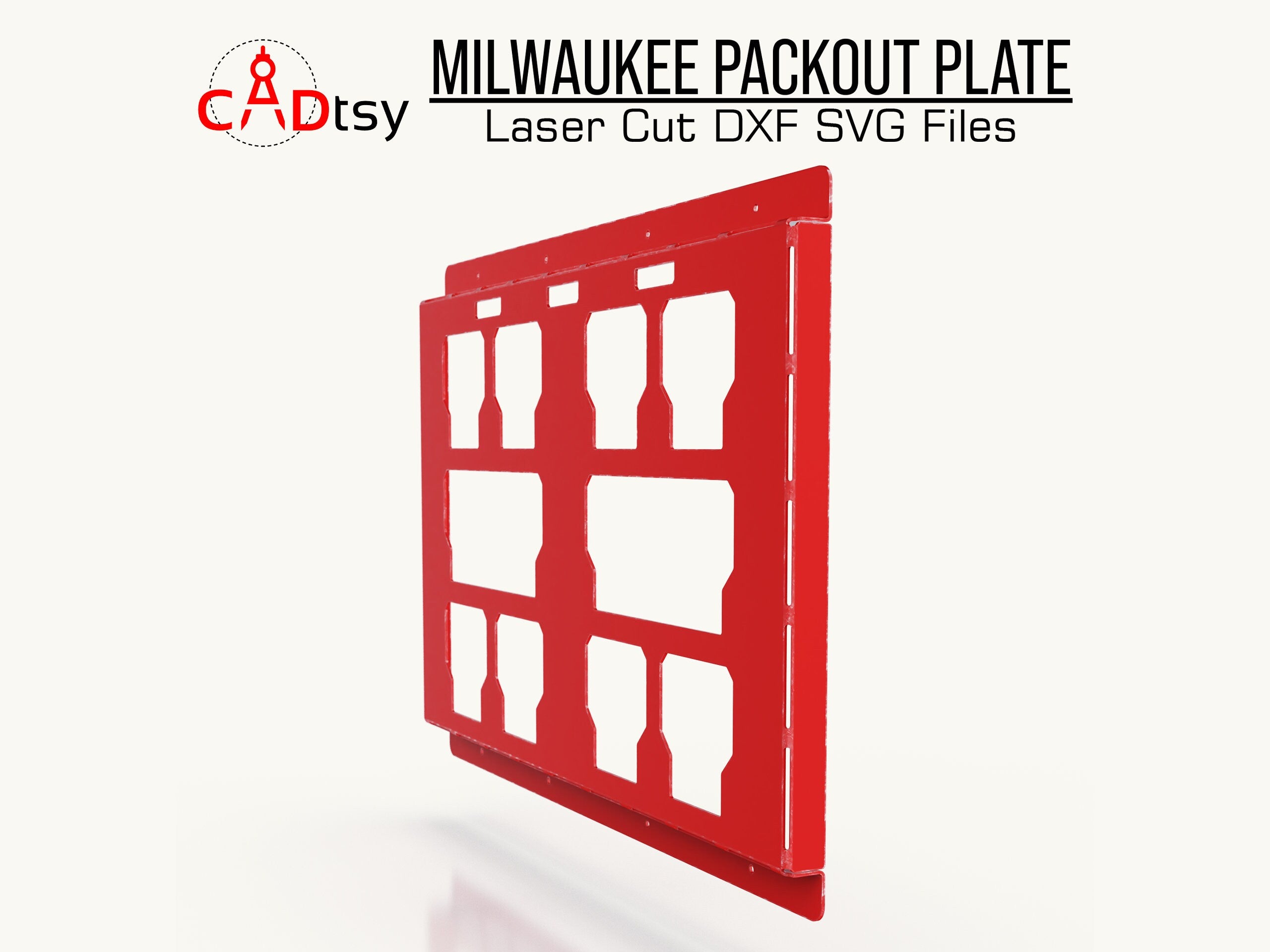

Milwaukee Packout mounting plate DXF files are a downloadable CNC-ready package for making three Packout-compatible sheet-metal mounting plate sizes for workshop, van, UTV, truck-bed, or wall-mounted storage installations.
What You Get
- DXF, SVG, and PDF cut files containing the half, full, and triple mounting plate designs.
- PDF drawings with finished dimensions and sheet-metal bending directions for all three sizes.
- No physical mounting plate, toolbox, sheet metal, hardware, fasteners, or finished storage system is shipped.
Included Sizes
- Half size: approximately 250 x 406 x 25 mm / 9.84 x 15.98 x 0.98 in.
- Full size: approximately 484 x 406 x 25 mm / 19.06 x 15.98 x 0.98 in.
- Triple size: approximately 738 x 406 x 25 mm / 29.06 x 15.98 x 0.98 in.
Material and Fabrication
- Recommended material: 2.0 mm / 0.079 in cold- or hot-rolled steel sheet. The closest common US steel sheet size is 14 gauge at approximately 1.9 mm / 0.075 in.
- The single-part designs use slot cuts along the bend lines. Nearby sheet thicknesses from approximately 1.5 to 2.5 mm / 0.059 to 0.098 in can be used when the bend radius and bend process are adjusted for the selected material.
- Suitable cutting workflows include CNC plasma, laser, or waterjet cutting.
Before Cutting
- CADtsy designs are created in millimeters. Confirm units and scale before sending the files to CAM software.
- Verify kerf, Packout engagement, latch clearance, mounting-hole fit, material thickness, bend radius, and machine settings with a test cut.
- Select installation fasteners for the mounting surface, support structure, expected load, and environment. Hardware is not included or specified.
