Metal Floor Bike Stand DXF/SVG Files
$4.25 USD
Sale price
$4.25 USD
Regular price
$6.88 USD

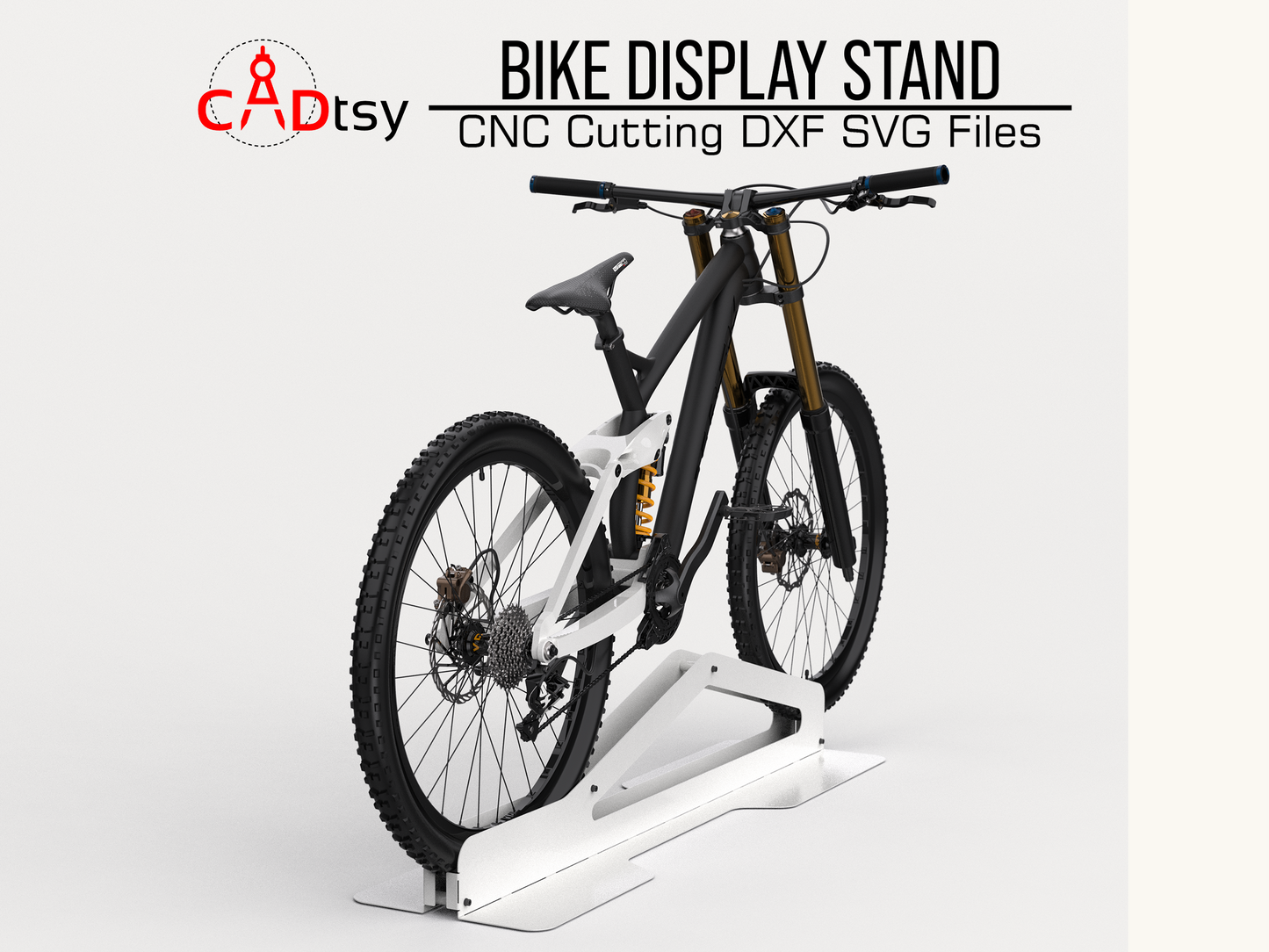

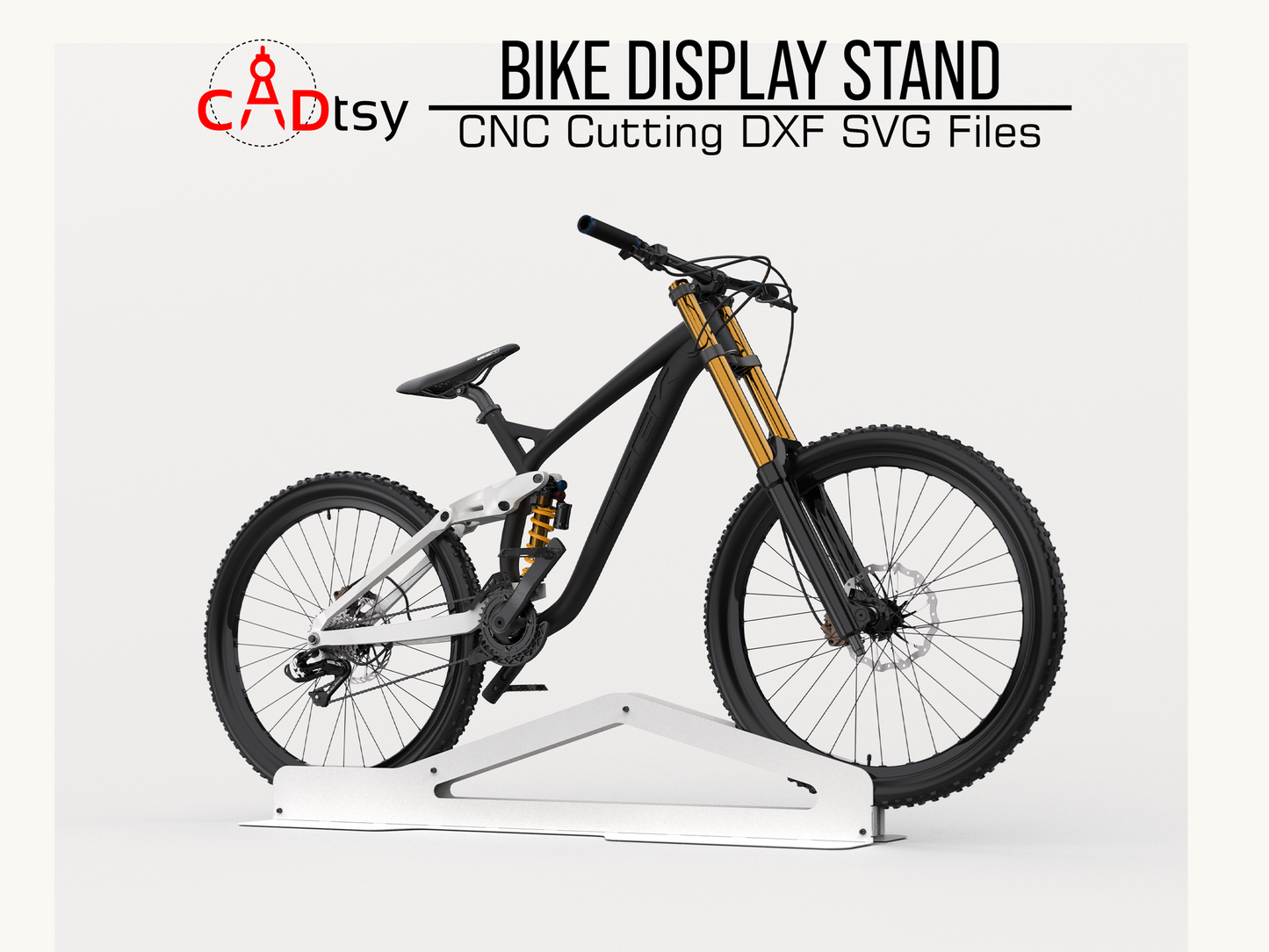

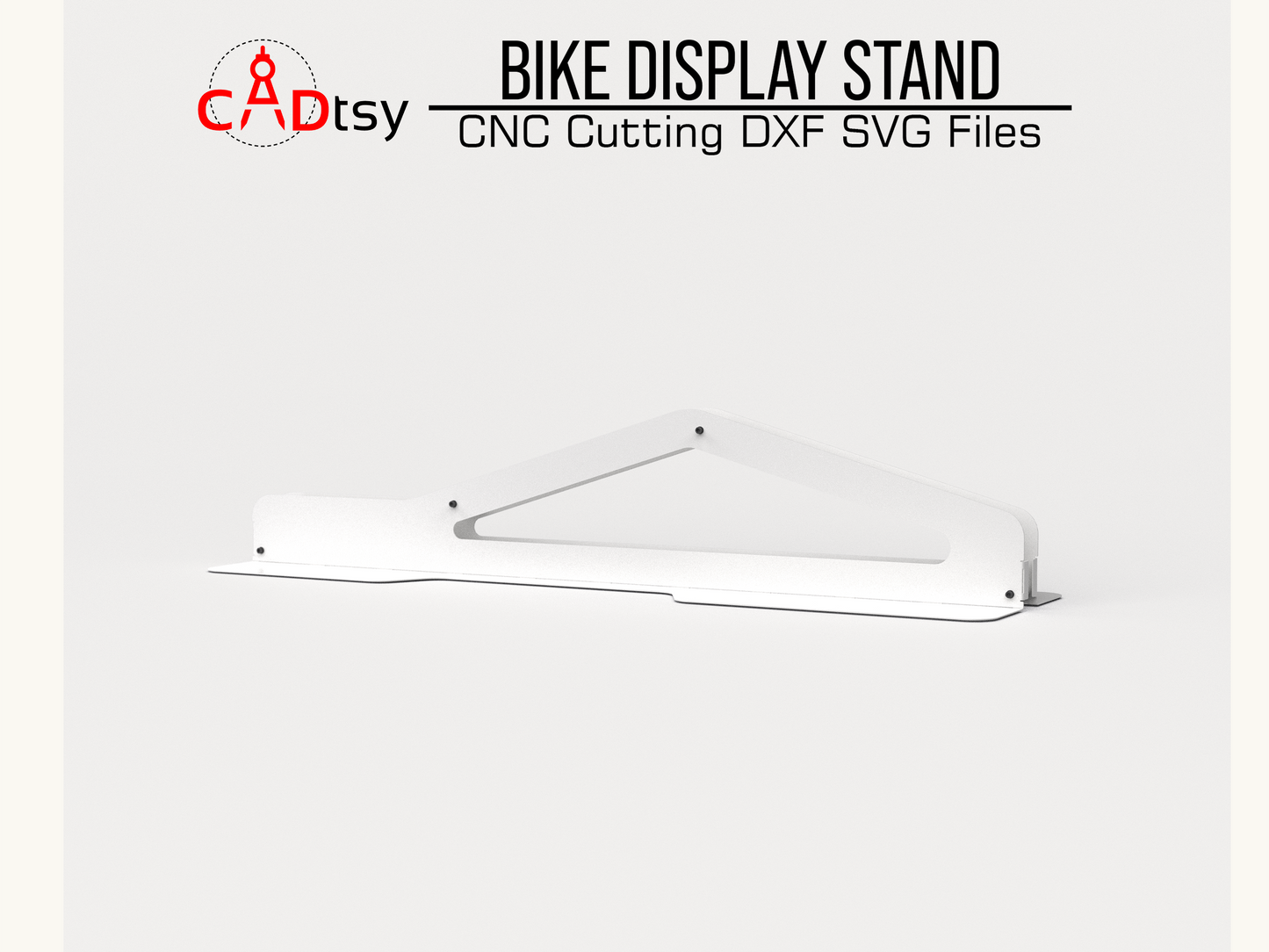

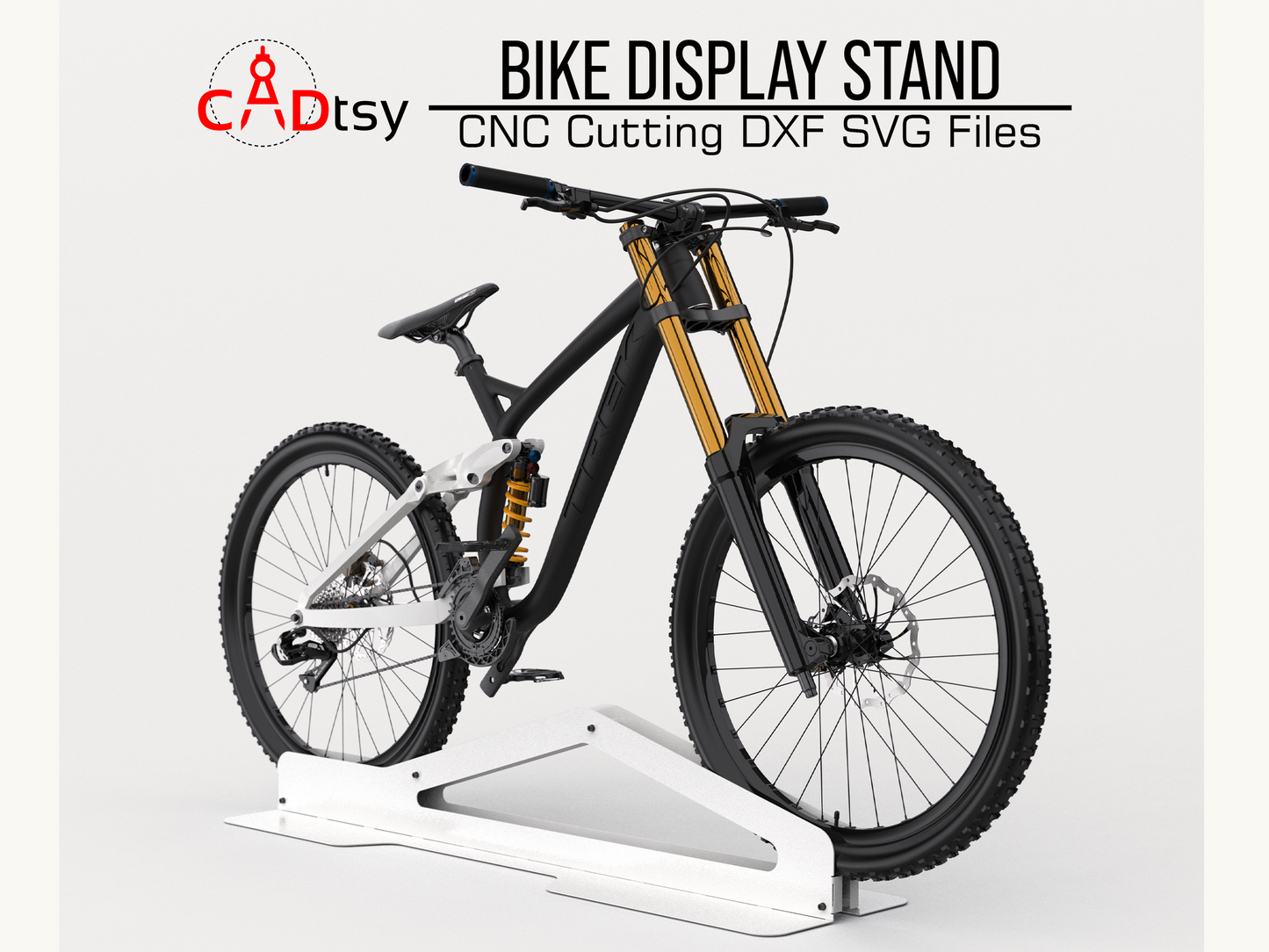

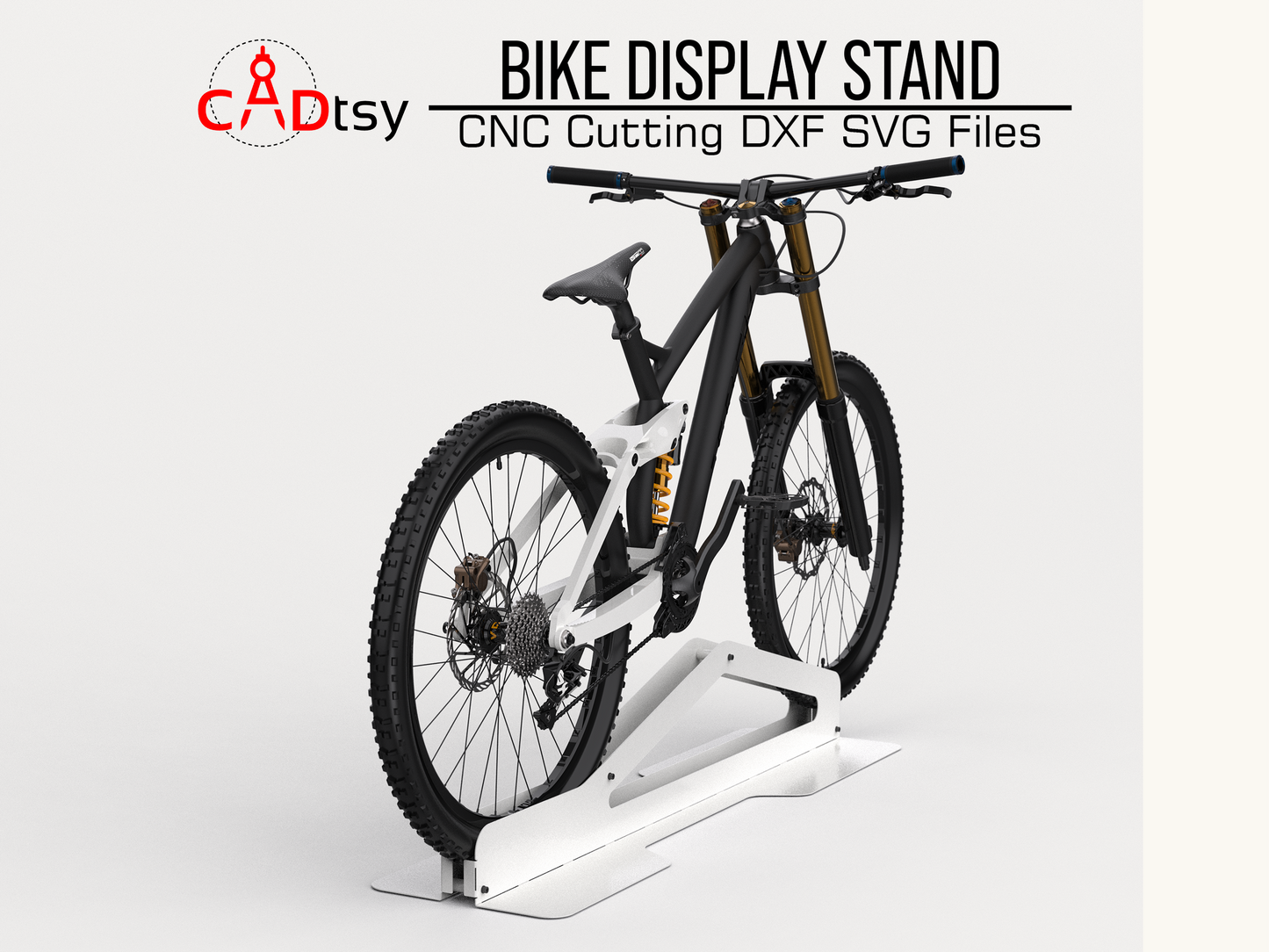

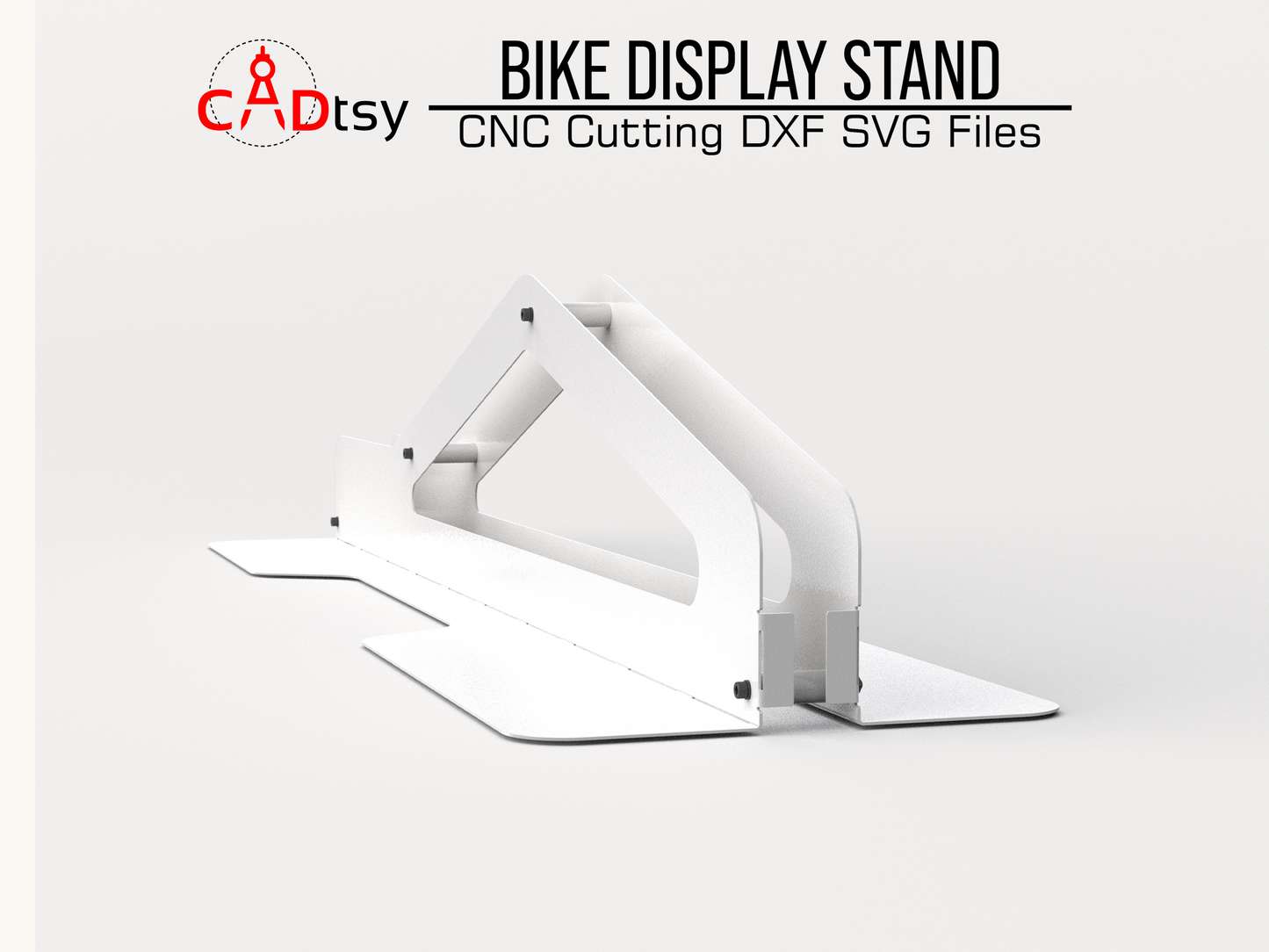

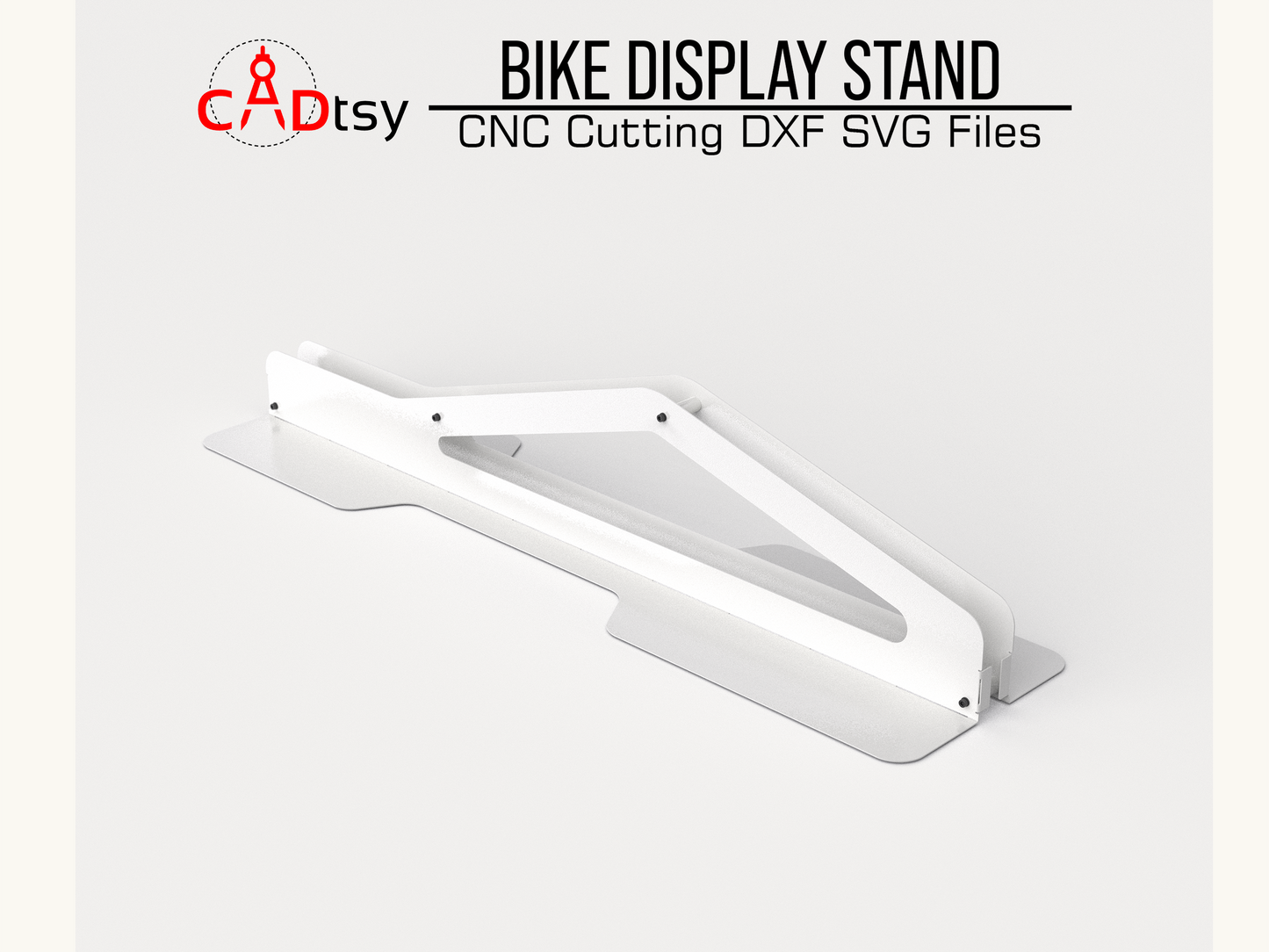

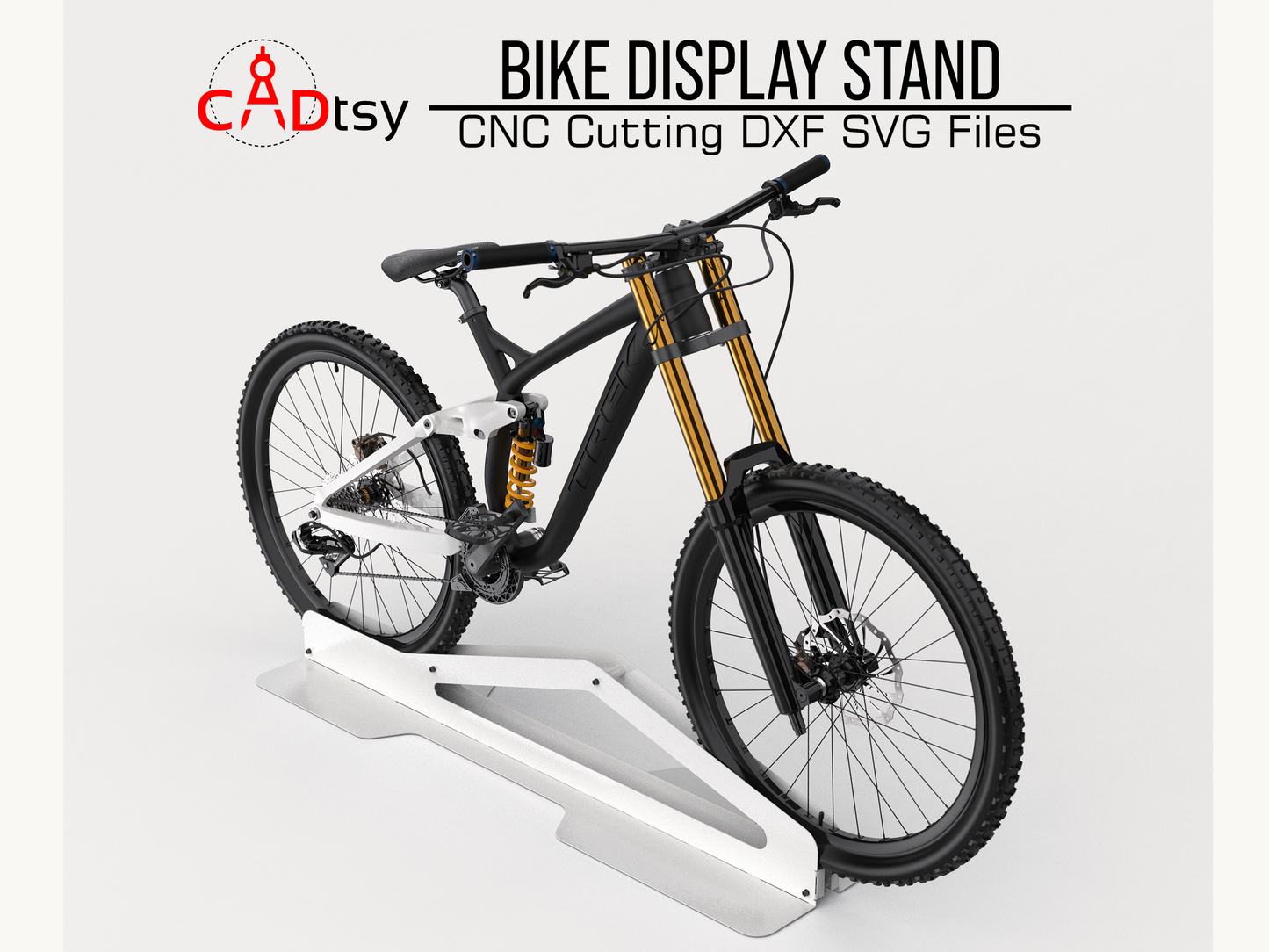

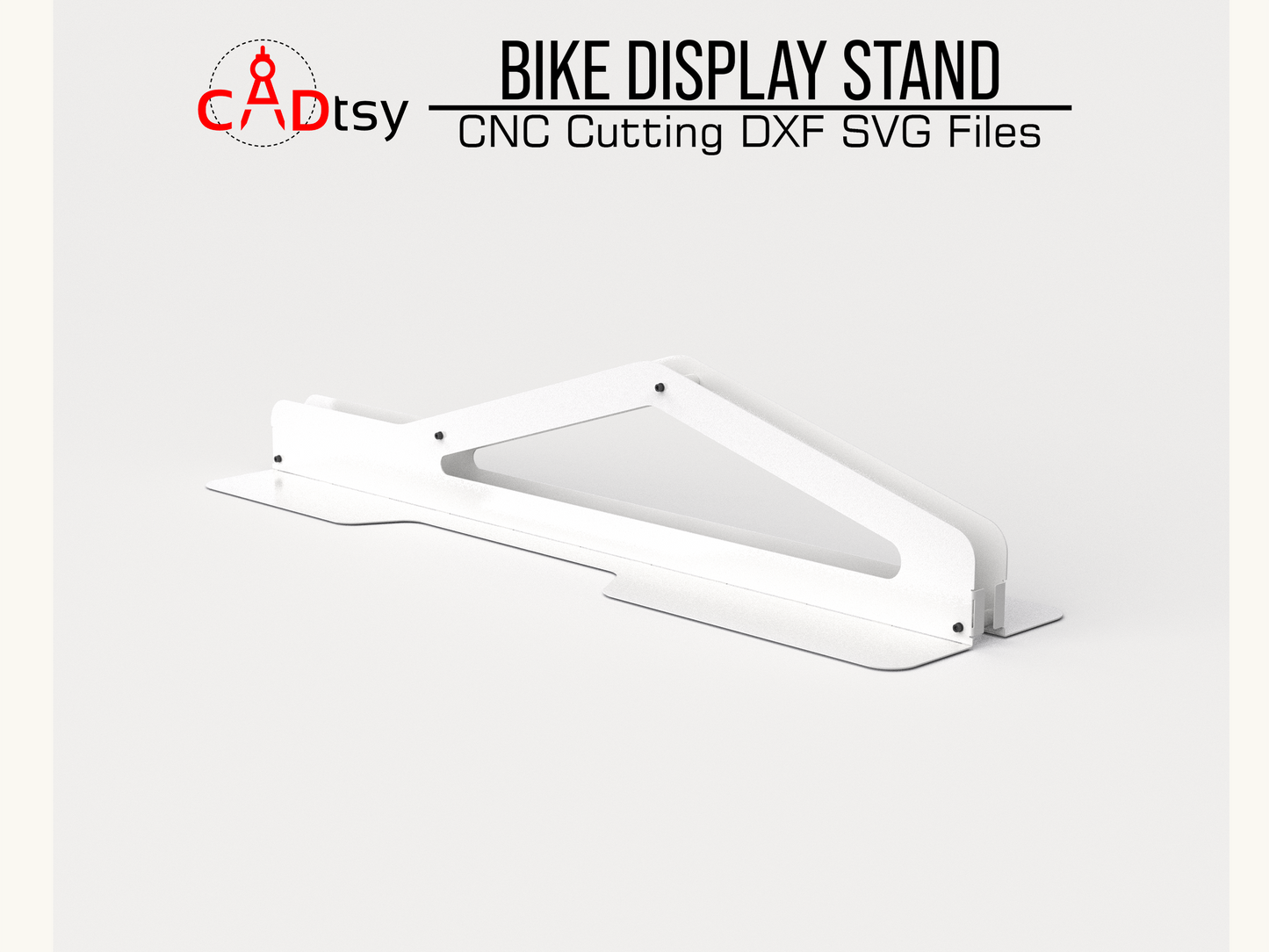

Build a 1400 mm metal floor bike stand with CADtsy DXF, SVG, and PDF files for CNC plasma, laser, or waterjet cutting. The stand uses two formed sheet-metal side panels connected by four adjustable-length square-tube spacers.
What You Get
- DXF and SVG cut-and-mark files.
- PDF reference file and three-page project drawings PDF.
- Separate job-size and verified hardware text files.
- No physical bike stand, steel, tube, hardware, bicycle, tools, or finished item is shipped.
Finished Size and Job Size
- Finished envelope: approximately 1400 x 360.96 x 282.32 mm / 55.1 x 14.2 x 11.1 in.
- Supplied job size: 1450 x 880 mm.

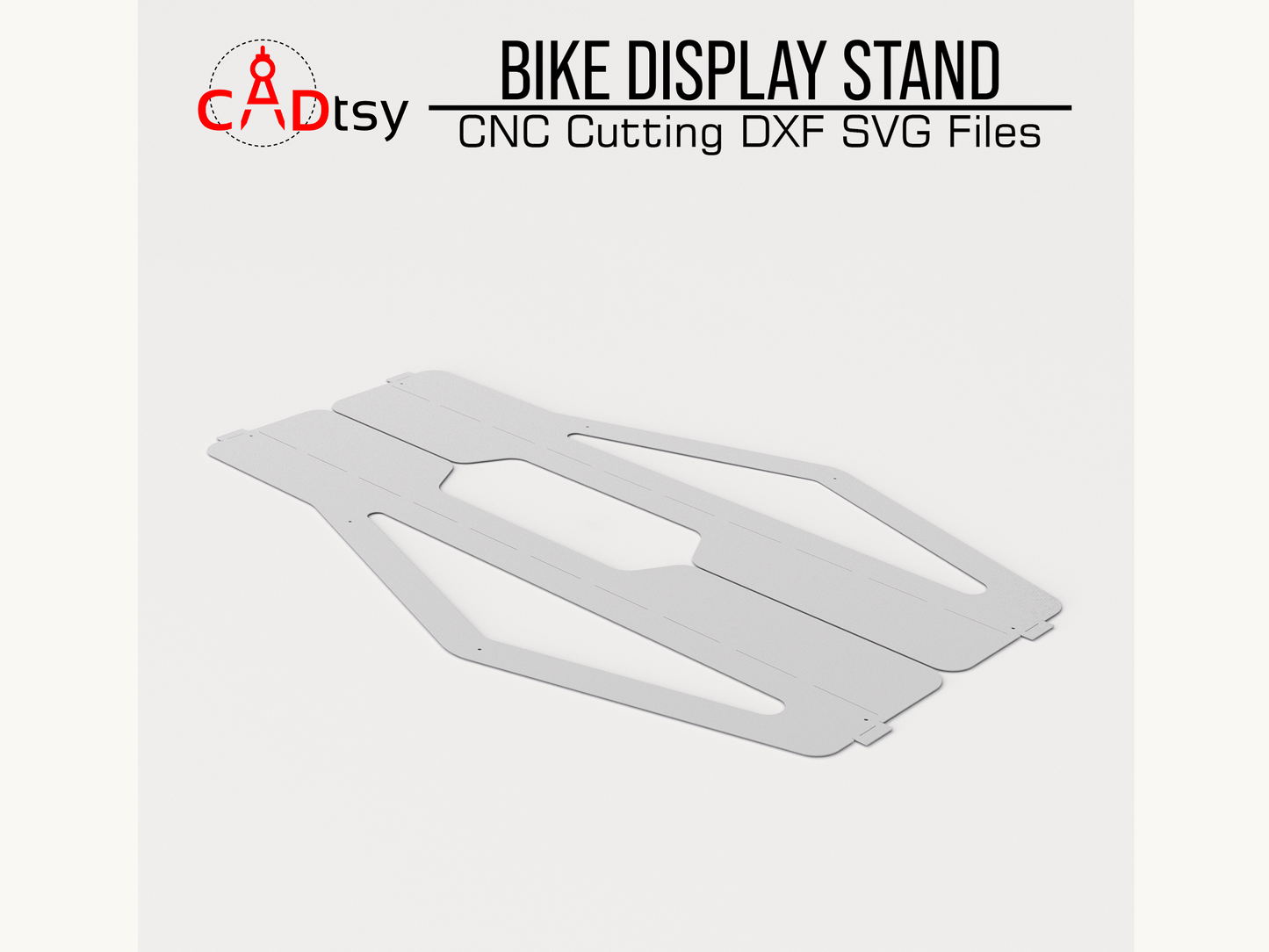

- Individual flat side-panel envelope: approximately 1437.05 x 428.84 mm.
Material and Forming
- Recommended material: 2.0 mm mild steel.
- Practical material range: 2.0-2.5 mm sheet metal using the integrated bend-assist slots.
- Each side panel has three documented 90-degree bends with a nominal R2 bend radius.
Verified Hardware
- 4 x M6 x 80 mm DIN 912 socket-head cap screws.
- 4 x M6 ISO 4032 hex nuts.
- 8 x 6.4 mm DIN 125 flat washers.
- 4 x 20 x 20 x 2 mm square-tube spacers, cut to suit tire width.
Before Cutting
- Confirm millimeter units, imported scale, cut and mark layers, kerf, selected thickness, and machine settings.
- Cut one spacer set and verify tire clearance before preparing all four spacers.
- Buyer is responsible for bending, assembly, stability testing, surface finishing, and safe use.
