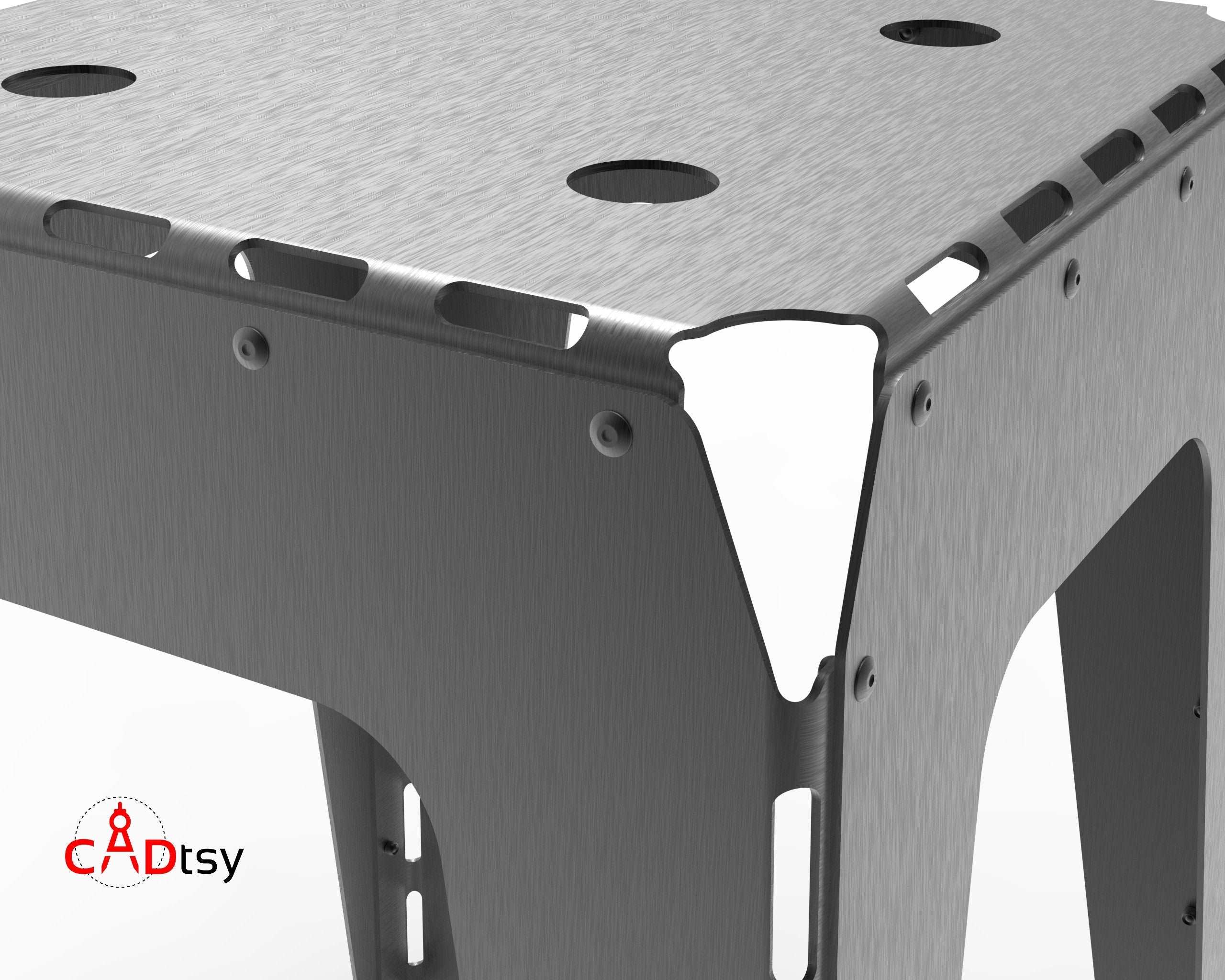

Industrial Metal Stool CNC Laser/Plasma Cutting DXF/SVG Files. Height 460 mm (18")
Fabricate a robust, 18-inch high stool with our industrial metal stool DXF and SVG files. We designed this digital plan specifically for CNC laser or plasma cutting. It allows you to create a stylish, durable, and incredibly versatile seating solution.
This stool is a perfect addition to any space that demands durability and style. It is ideal for your workshop, garage, or art studio. In addition, its sleek industrial aesthetic works equally well as a unique accent piece in a modern home or kitchen. This CNC stool plan SVG is straightforward and rewarding. Consequently, you can build a high-quality piece of furniture that lasts a lifetime.
We designed this industrial seating design for precision, strength, and a seamless fabrication process. The included bending drawings and options for riveting or bolting give you full control over the final assembly. In short, it’s a project that combines your metalworking skills with timeless design.
We have engineered every aspect of this industrial metal stool DXF plan for a flawless result from your CNC machine.

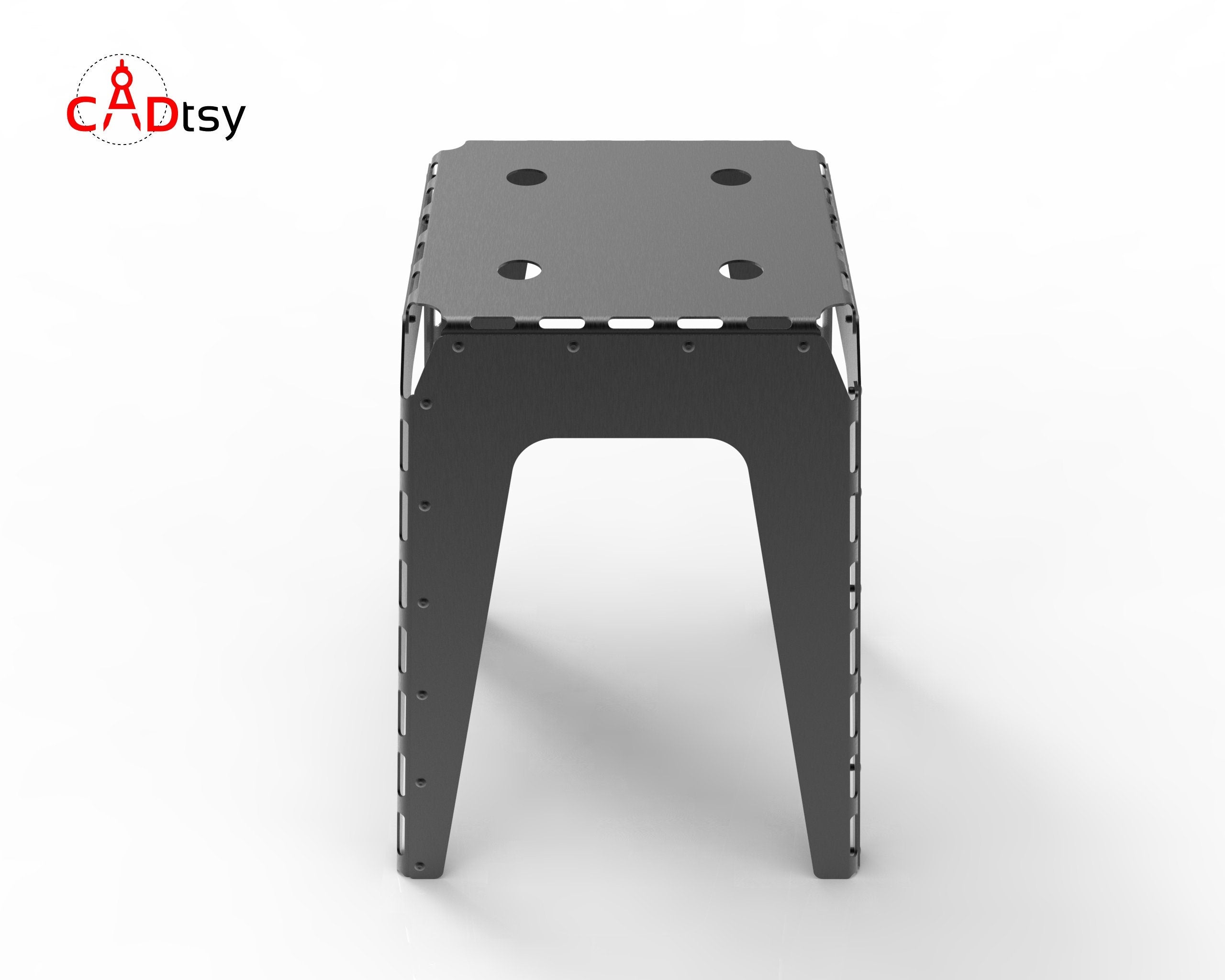

Final Assembled Dimensions: This industrial metal stool DXF assembles to a height of 18" (460 mm), with a width and depth of 13.8" (350 mm).
Recommended Materials: This metal workshop stool project is designed for 13 Gauge (2.5 mm), 14 Gauge (2.0 mm), or 16 Gauge (1.6 mm) sheet metal.
Required Operations: Furthermore, this project requires CNC cutting (Plasma or Laser), sheet metal bending, and assembly with rivets or bolts.
Included File Formats: Finally, your download includes DXF, SVG, and PDF files for maximum software compatibility.
Download your industrial metal stool DXF file today. Start creating a functional and stylish piece of industrial seating with CADtsy.
• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.
Commercial Use: These DXF plans are for personal projects or small business ventures (physical items only).
Intellectual Property: Modifying, reselling, or distributing the digital plasma dxf files is strictly prohibited. All media is protected by copyright. Unauthorized digital resale or redistribution is illegal and may result in legal action.
• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
