Angle Grinder Hanger DXF Files (3 Designs)
Maximize your workshop's efficiency and keep your most important tool safe. This download provides the angle grinder hanger DXF and SVG files you need. Use them to create a heavy-duty, wall-mounted holder for your 4.5" angle grinder.
This digital file includes three distinct design variations. Consequently, you can choose the style that best fits your space. We engineer these plans for CNC plasma and laser cutters. Therefore, you can turn a piece of sheet metal into a practical, easy-to-use tool organization system. The design also features precut slots for simple bending and a secure fit.
We design this CNC plasma tool holder for durability and ease of creation. In other words, you get a plan that is both robust and simple to assemble.
First, we optimize this plan for common steel thicknesses, for example, 13, 14, or 16 Gauge (1.5 - 2.5 mm).
In addition, we designed the grinder holder SVG and DXF files with precut slots for easy sheet metal bending right after cutting.

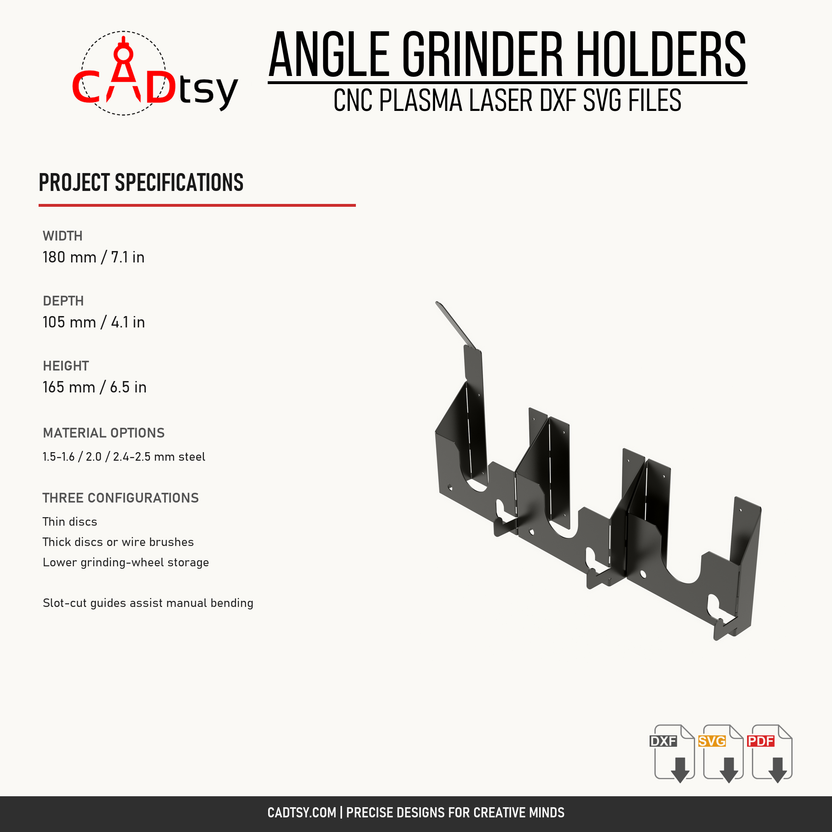

Furthermore, the final assembled hanger has a compact size: 6.5" high, 7.1" wide, and 4.1" deep (165 x 180 x 105 mm).
Finally, your download includes DXF, SVG, and PDF files, so that you have maximum compatibility with your software.
Ready to build the perfect storage for your most-used tool? Download your angle grinder hanger DXF file today and get your workshop organized with CADtsy!
• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.
Commercial Use: These DXF plans are for personal projects or small business ventures (physical items only).
Intellectual Property: Modifying, reselling, or distributing the digital plasma dxf files is strictly prohibited. All media is protected by copyright. Unauthorized digital resale or redistribution is illegal and may result in legal action.
• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
