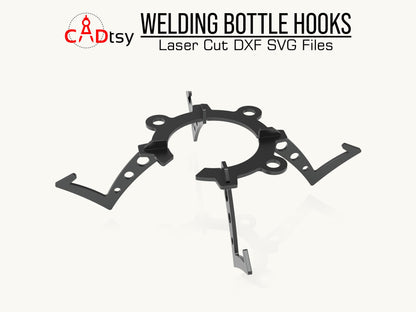

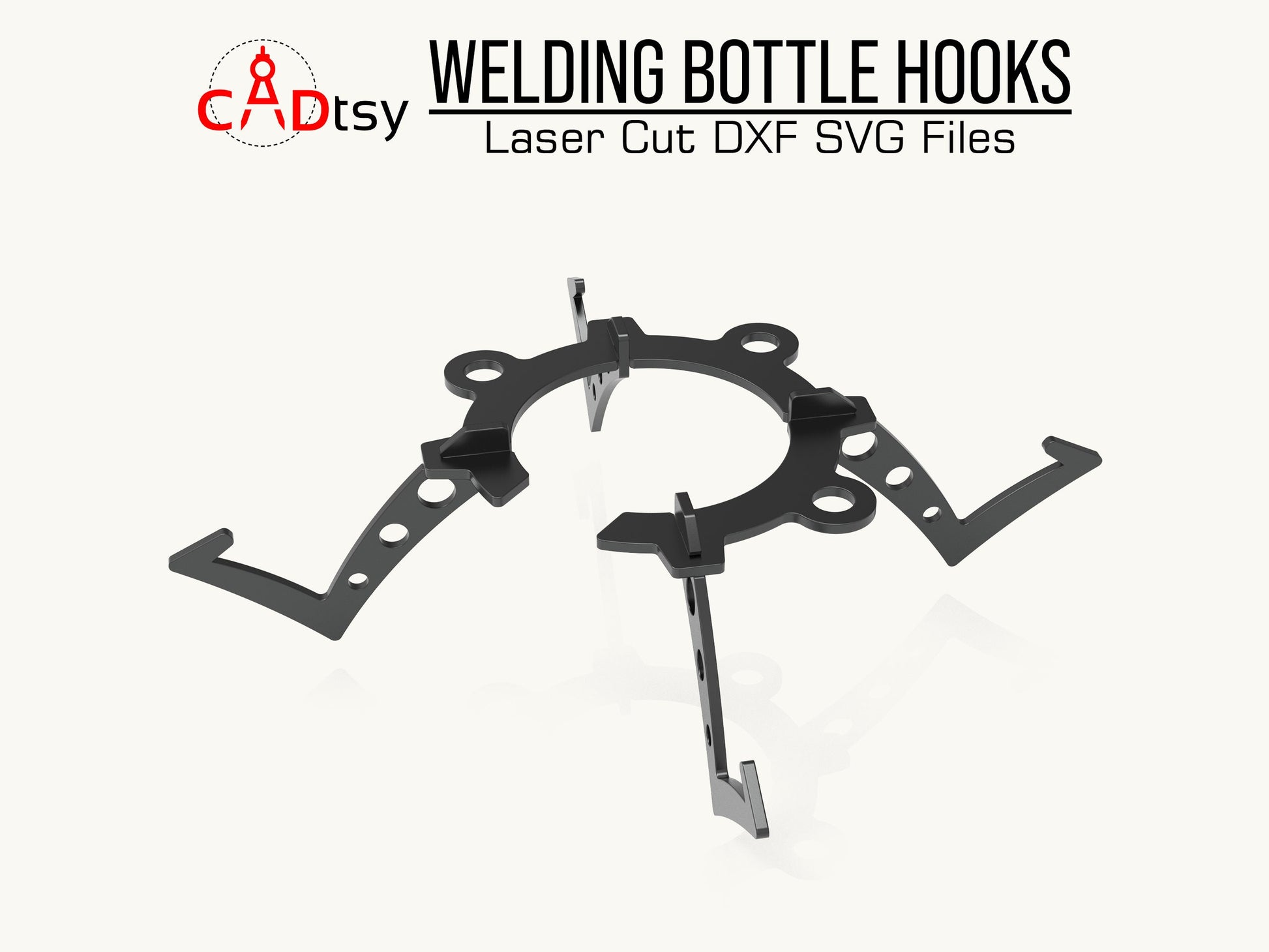

Precision-engineered welding bottle tank hooks designed for CNC plasma or laser cutting, provided in a DXF file, ensuring secure and convenient storage solutions for welding setups.

Welding Cylinder Hooks DXF Plasma Cutting Files

$7.08 USD

$7.08 USD $11.47 USD

Welding Cylinder Hooks DXF Plasma Cutting Files

Name: Welding Cylinder Hooks DXF Plasma Cutting Files
Brand: CADtsy
SKU: MT-ORG-WLD-CHK-001
Price: 7.08 USD
Availability: InStock

$7.08 USD

$7.08 USD $11.47 USD

Taxes included. Shipping calculated at checkout.

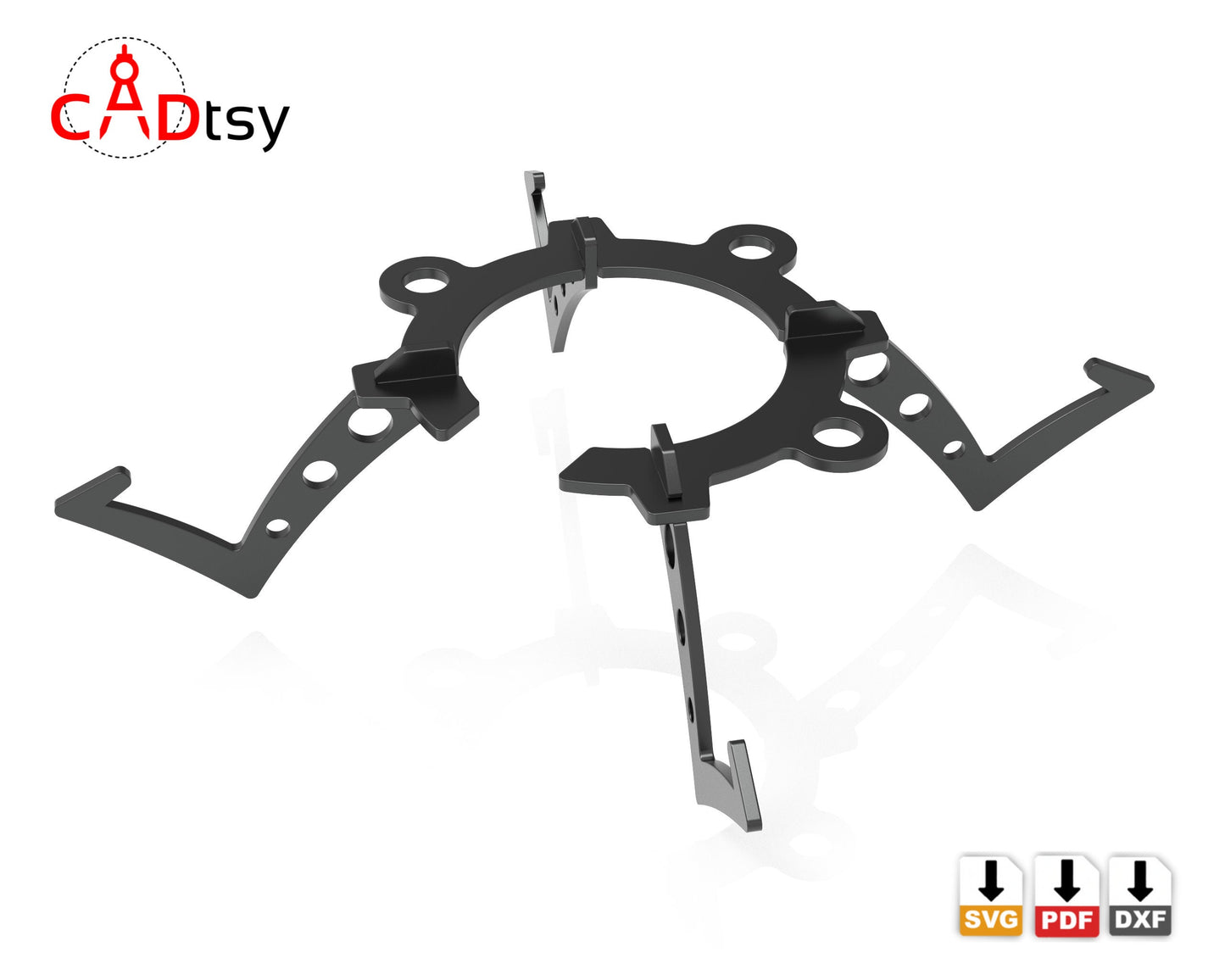

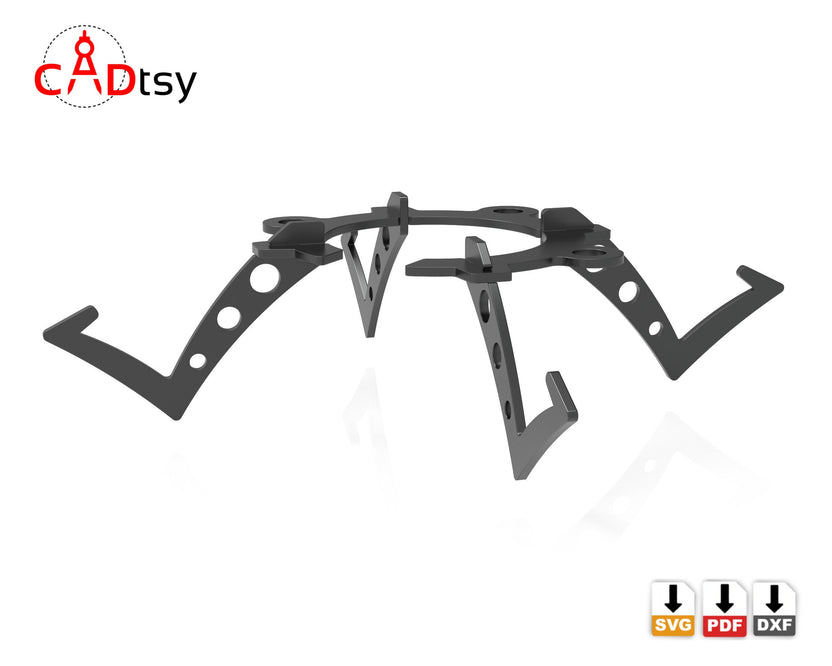

Welding Gas Cylinder Hooks DXF files is a downloadable CNC-ready file package for building dual-hook welding gas cylinder hangers for organizing torches, leads, wrenches, and welding accessories around MIG or TIG shielding gas bottles. The hook layout includes 81 mm and 91 mm neck variants.

What You Get

DXF, SVG, and PDF files for the welding gas cylinder hooks design.
CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
PDF reference file for the welding cylinder hook project.
Two neck-size variants: 81 mm / 3.19 in and 91 mm / 3.58 in.
No physical welding accessory, gas cylinder, torch, leads, steel, hardware, or finished shop item is shipped.

Project Features

Dual-hook hanger layout intended to mount over the neck collar of compatible shielding gas cylinders.
Cut-only sheet metal project; no bending is required.

Finished Size

Approximate hook height: 2.8 in / 70 mm.
Approximate hook width: 11.1 in / 283 mm.
Approximate hook depth: 11.1 in / 283 mm.
Included neck variants: 81 mm / 3.19 in and 91 mm / 3.58 in.

Recommended Materials

10 gauge / 3.0-3.2 mm steel.

Before Cutting

CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
Verify kerf, cylinder neck fit, hook clearance, material thickness, and machine settings before fabrication.
Confirm cylinder compatibility, edge finishing, safe hanging load, and welding-area safety before use.
