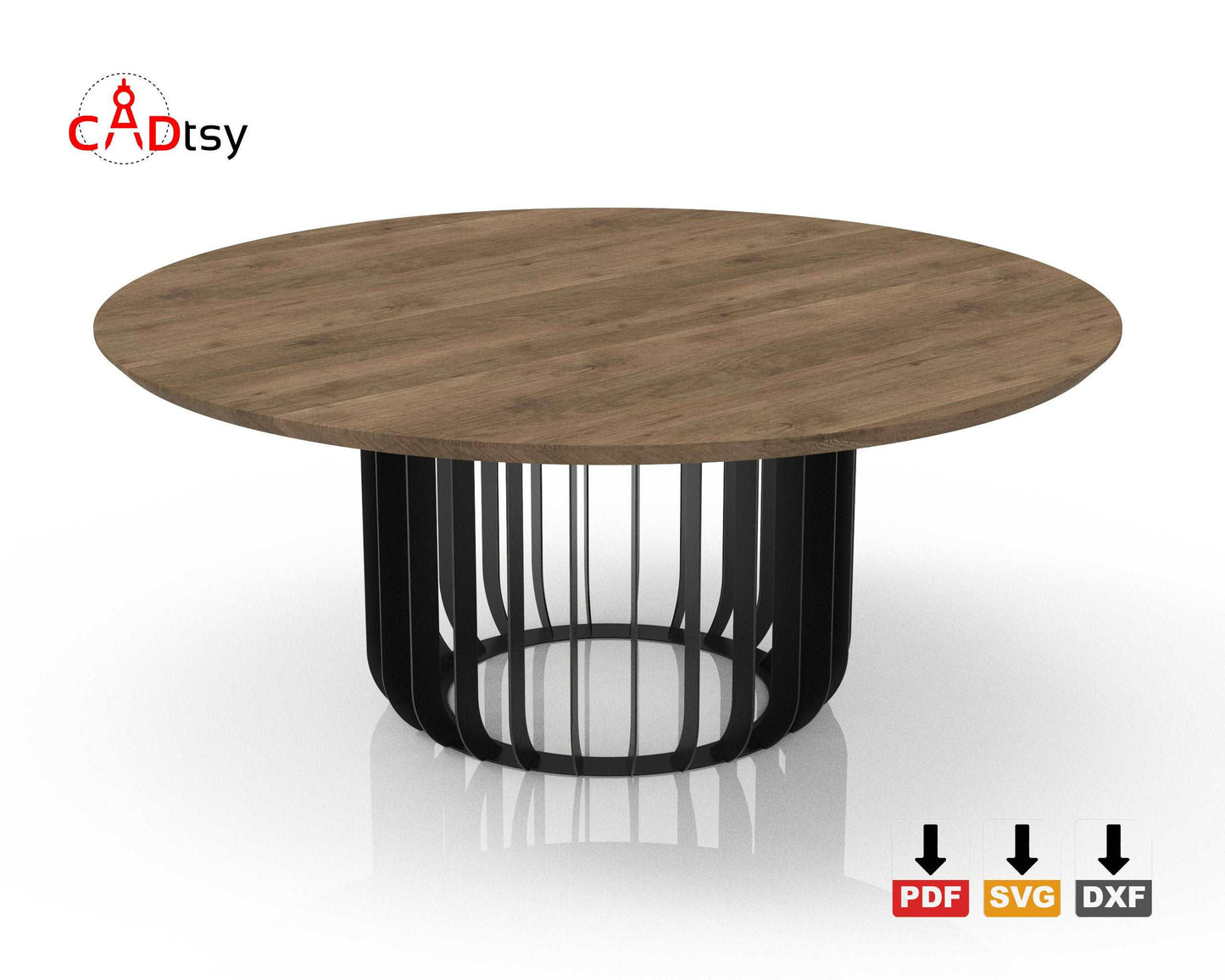

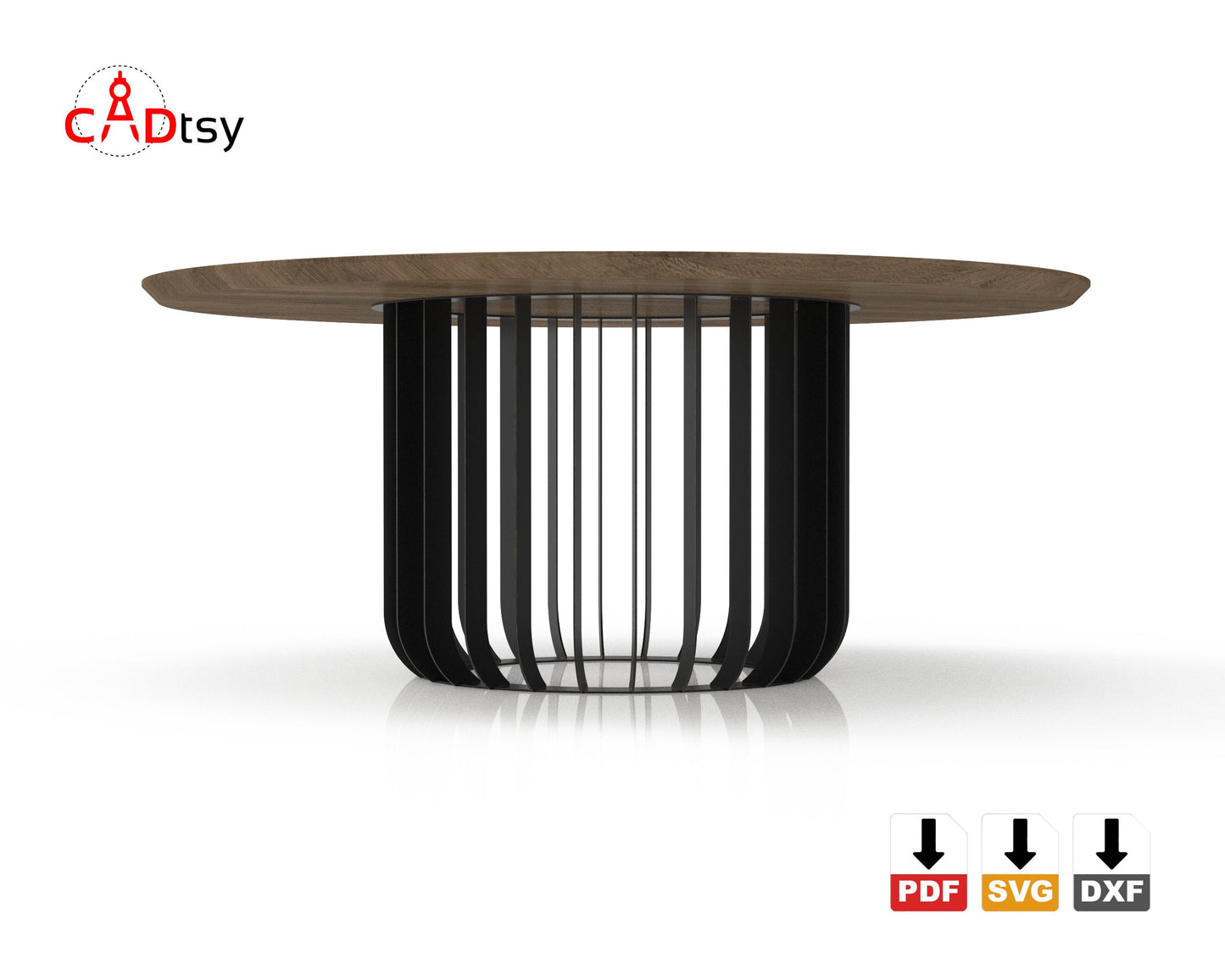

Round D900 radial metal table base shown with a wood tabletop

Round Metal Table Base DXF/SVG - D900 CNC Files

$4.25 USD
$4.25 USD $6.88 USD
Skip to product information
Round D900 radial metal table base shown with a wood tabletop
Round Metal Table Base DXF/SVG - D900 CNC Files

Round Metal Table Base DXF/SVG - D900 CNC Files

$4.25 USD
$4.25 USD $6.88 USD

Digital download. Quantity is limited to 1 license per design per order.

Multi-file savings: 8% off 3+ items, 16% off 5+, or 24% off 7+. Applied automatically in cart.

Digital download. No physical item or shipping required. Check the product description for the exact included files.

Download links are sent by email after checkout. See What You Get below for any additional PDF drawings or instructions.

Purchase grants a limited license; digital files may not be shared, resold, or redistributed. Review the CADtsy license terms.

Round Metal Table Base DXF files is a downloadable CNC-ready package for building a radial metal pedestal base for a round dining, conference, or custom tabletop. The finished metal base is approximately 28.0 in high, with a 35.4 in lower-ring diameter and a 37.0 in upper-ring diameter.

What You Get

  • DXF, SVG, and PDF cutting files for the 4.0 mm round table base design.
  • PDF drawings for project dimensions and fabrication reference.
  • CNC-ready files for plasma, laser, or waterjet cutting workflows.
  • No physical table base, tabletop, steel, hardware, or finished furniture is shipped.

Project Features

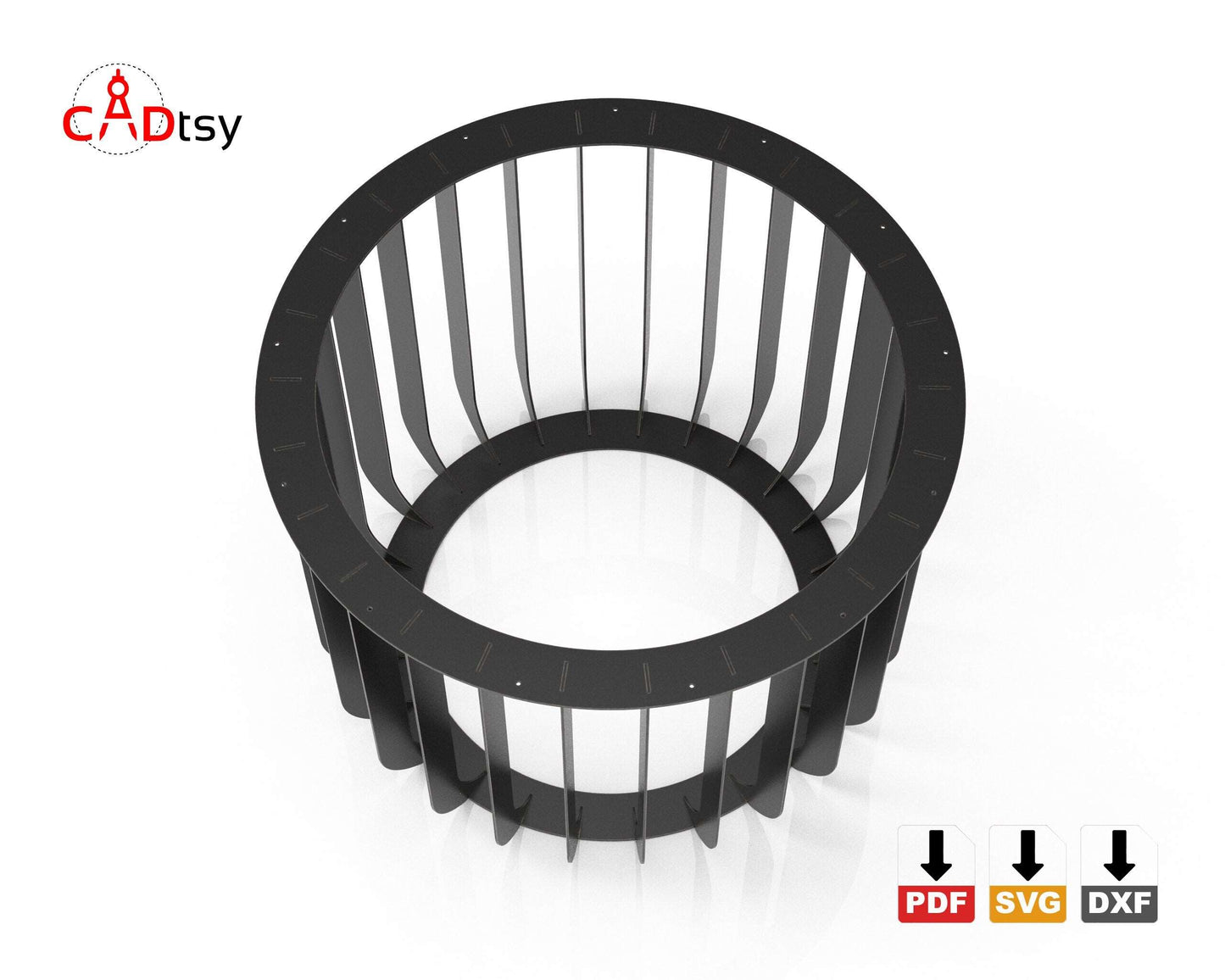

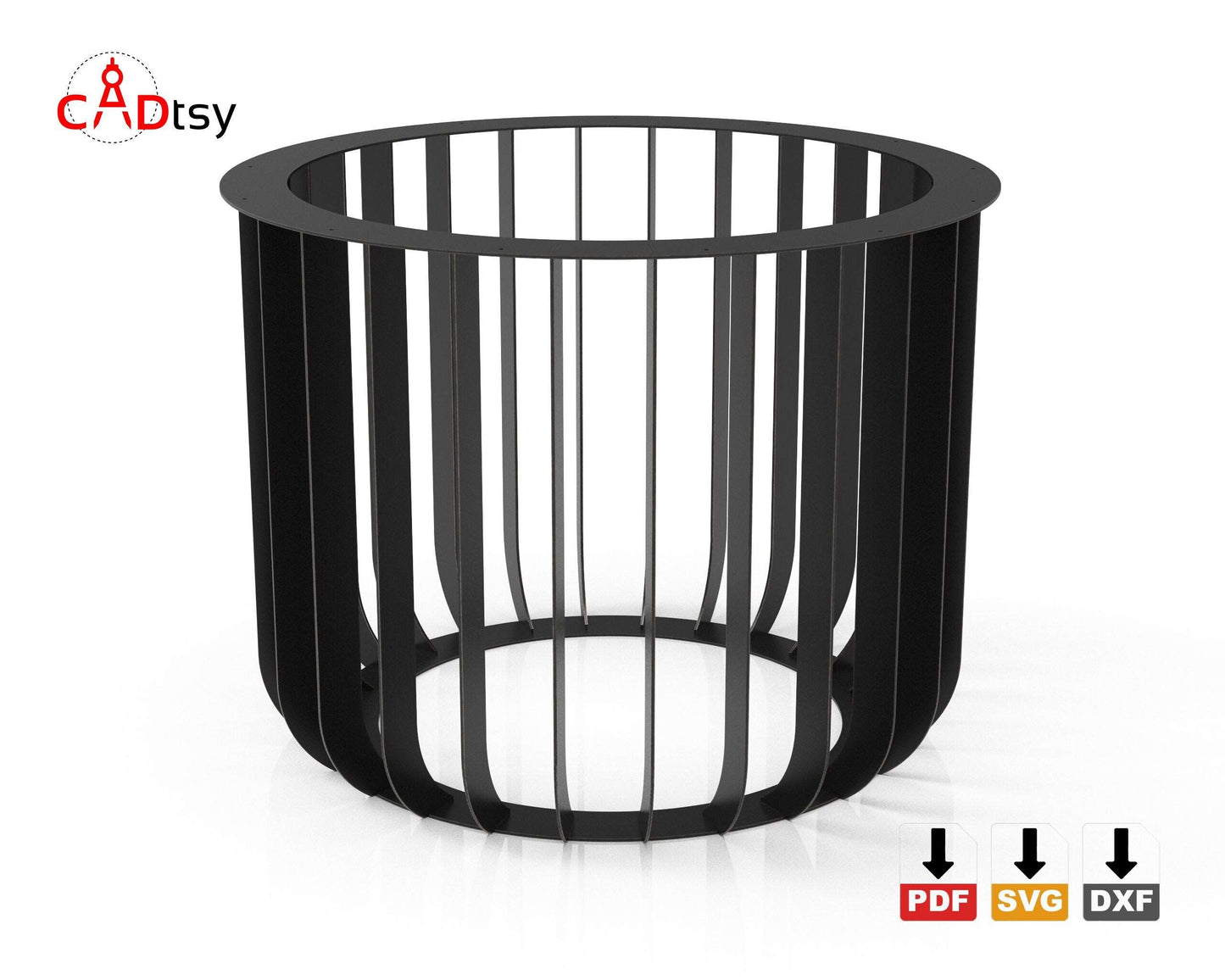

  • Radial pedestal structure with 26 vertical blades positioned between the upper and lower rings.
  • Designed to be CNC-cut from sheet steel and welded into the finished round base.

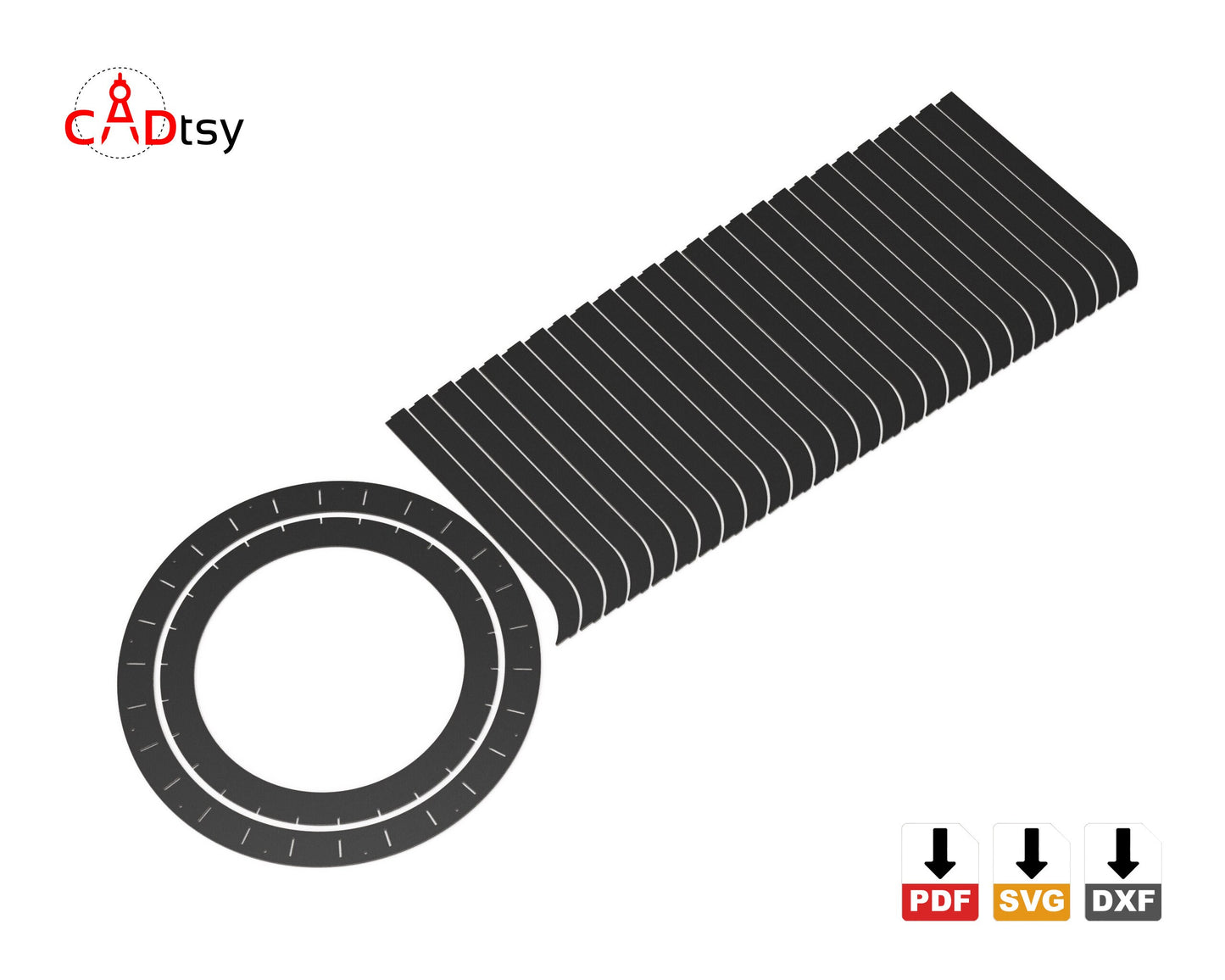

  • Approximate flat cutting layout: 2635 x 940 mm.

Finished Size

  • Approximate assembled base height: 28.0 in / 710 mm.
  • Lower-ring diameter: 35.4 in / 900 mm.
  • Upper-ring diameter: 37.0 in / 940 mm.

Recommended Materials

  • 8 gauge / 4.0 mm sheet steel.

Before Cutting

  • CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
  • Confirm kerf, material thickness, welding sequence, tabletop attachment, and machine settings before fabrication.
  • Verify the intended tabletop size, fasteners, load requirements, and finished base stability before use.

Related CADtsy Files

Browse related table legs and bases DXF files, explore CNC furniture plans, CADtsy CNC cut files, or review how CADtsy digital CNC files work before purchase.
⚠️ Important Information

• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.
⚠️ Legal Information

CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.

Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.

Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.
⚠️ Technical Support & Scaling

• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
• Support: If you are unsure about a file or license question, contact CADtsy.
