Motorcycle Dolly DXF/SVG Plans for CNC Plasma Cutting

$21.24 USD

$21.24 USD $34.40 USD

Motorcycle Dolly DXF/SVG Plans for CNC Plasma Cutting

Name: Motorcycle Dolly DXF/SVG Plans for CNC Plasma Cutting
Brand: CADtsy
SKU: MT-MTC-MOV-DOL-001C
Price: 21.24 USD
Availability: InStock

$21.24 USD

$21.24 USD $34.40 USD

CADtsy Best Seller

Digital download. Quantity is limited to 1 license per design per order.

Multi-file savings: 8% off 3+ items, 16% off 5+, or 24% off 7+. Applied automatically in cart.

Digital download. No physical item or shipping required. Check the product description for the exact included files.

Download links are sent by email after checkout. See What You Get below for any additional PDF drawings or instructions.

Purchase grants a limited license; digital files may not be shared, resold, or redistributed. Review the CADtsy license terms.

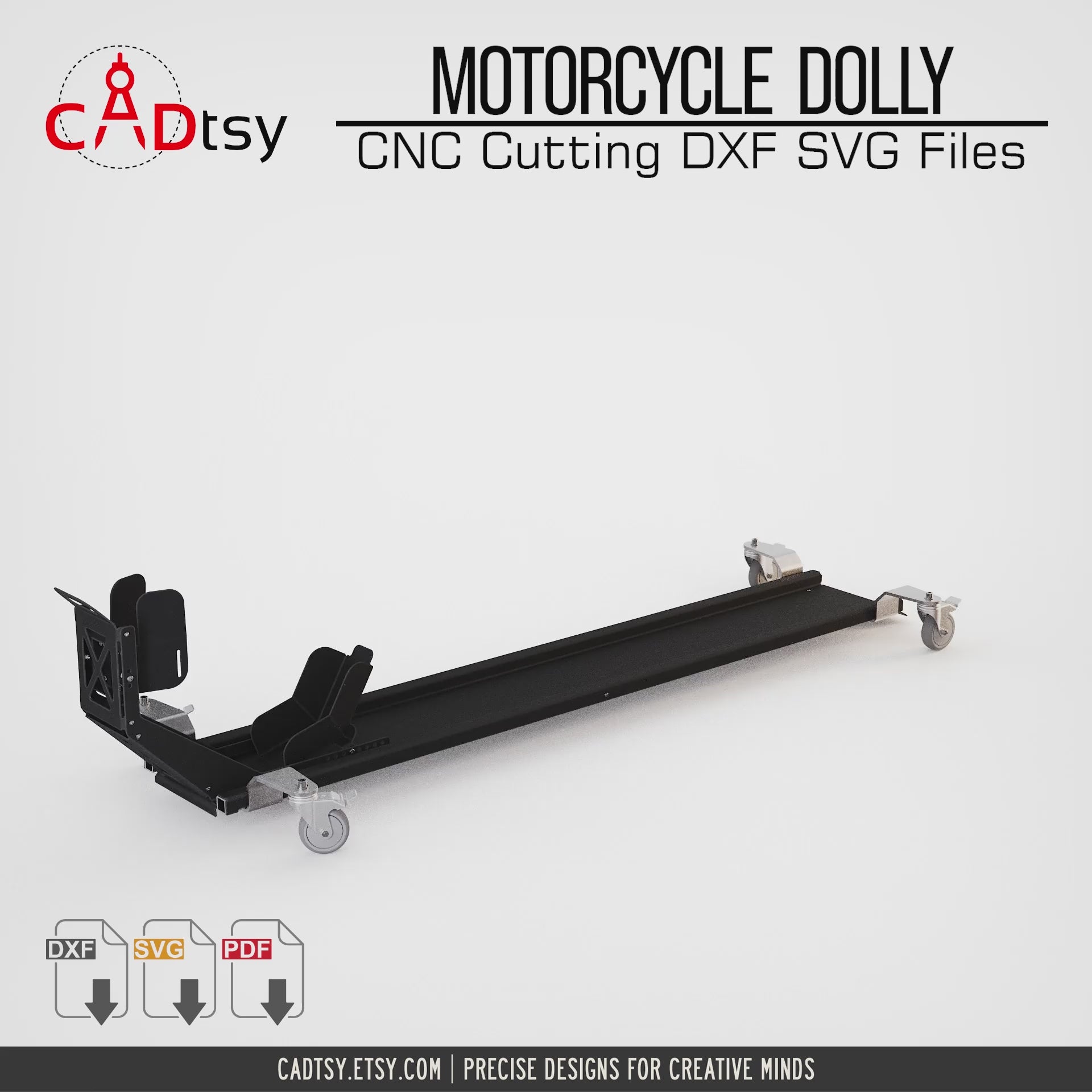

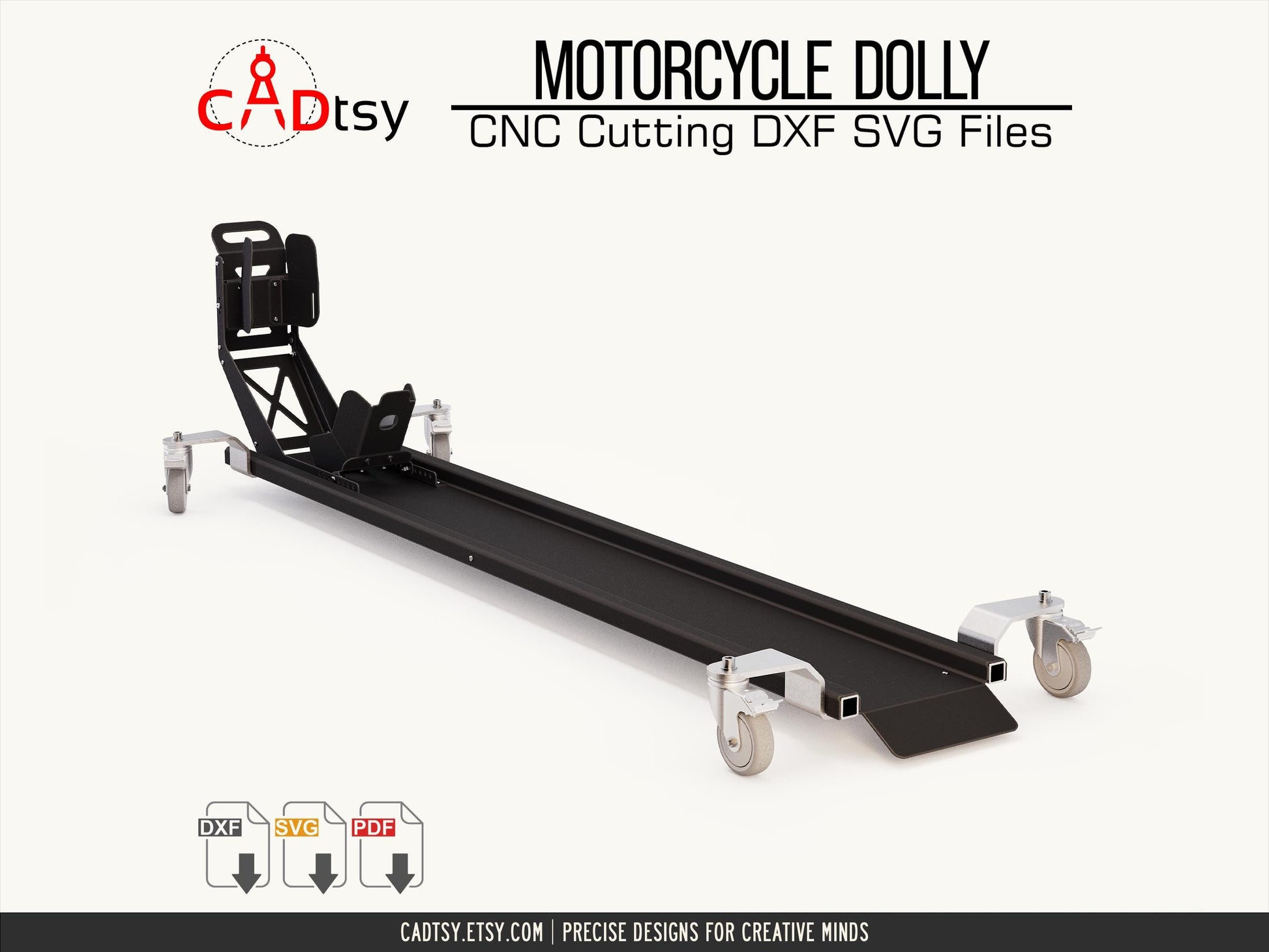

Motorcycle Dolly DXF plans is a downloadable CNC-ready file package for building a heavy-duty motorcycle mover, garage parking dolly, or rolling motorbike stand. The assembled dolly is approximately 91.0 in long, 26.0 in wide, and 20.8 in high. The project combines CNC-cut sheet and plate parts with standard 30 x 30 mm structural tube.

What You Get

DXF, SVG, and PDF files for the motorcycle dolly dxf plans design.
CNC-ready files for plasma, laser, or waterjet cutting workflows.
PDF build guide/reference files for the motorcycle dolly project.
No physical motorcycle dolly, steel, square tube, casters, hardware, motorcycle, or finished garage tool is shipped.

Project Features

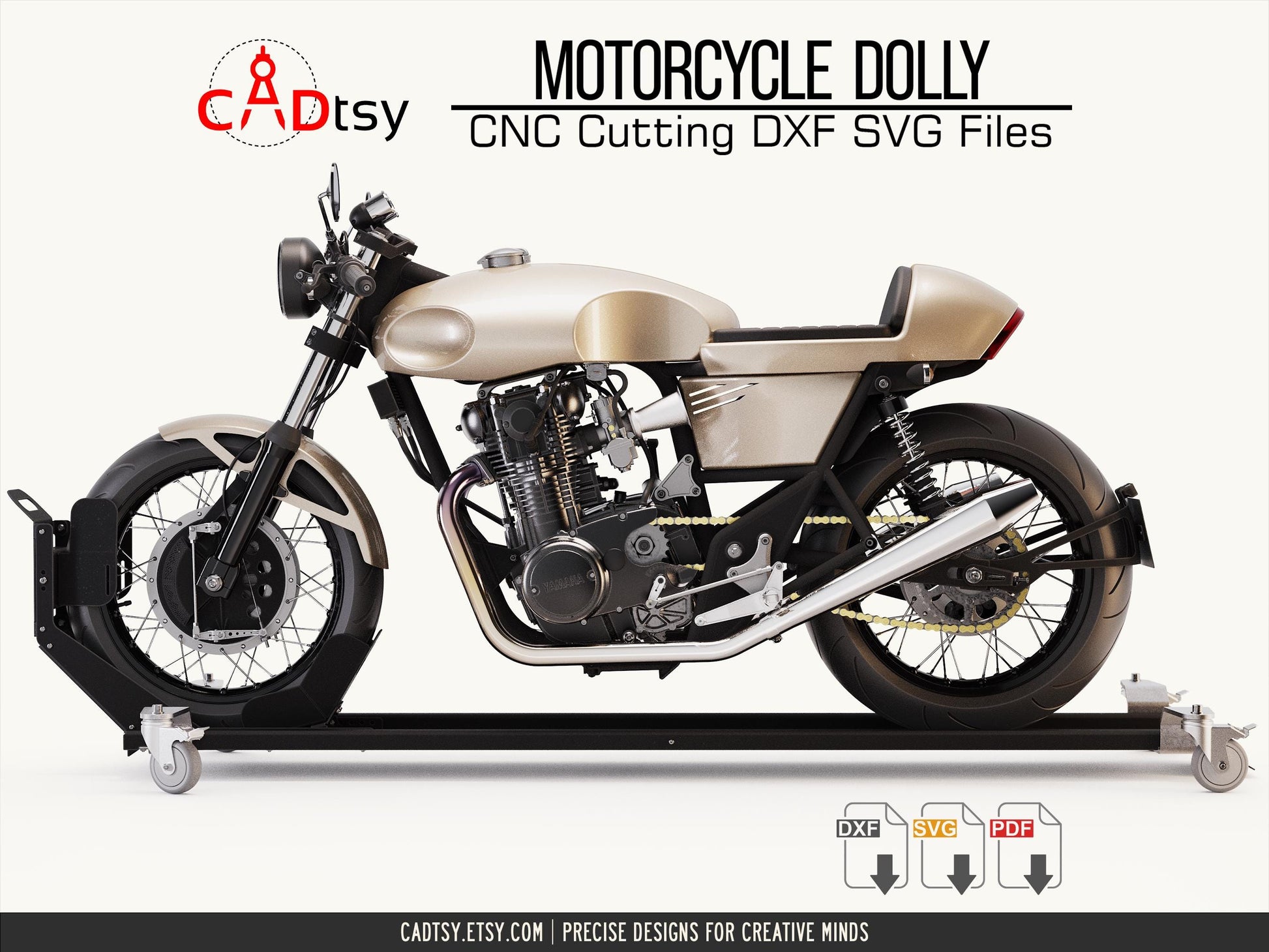

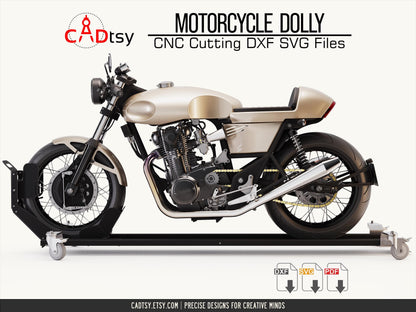

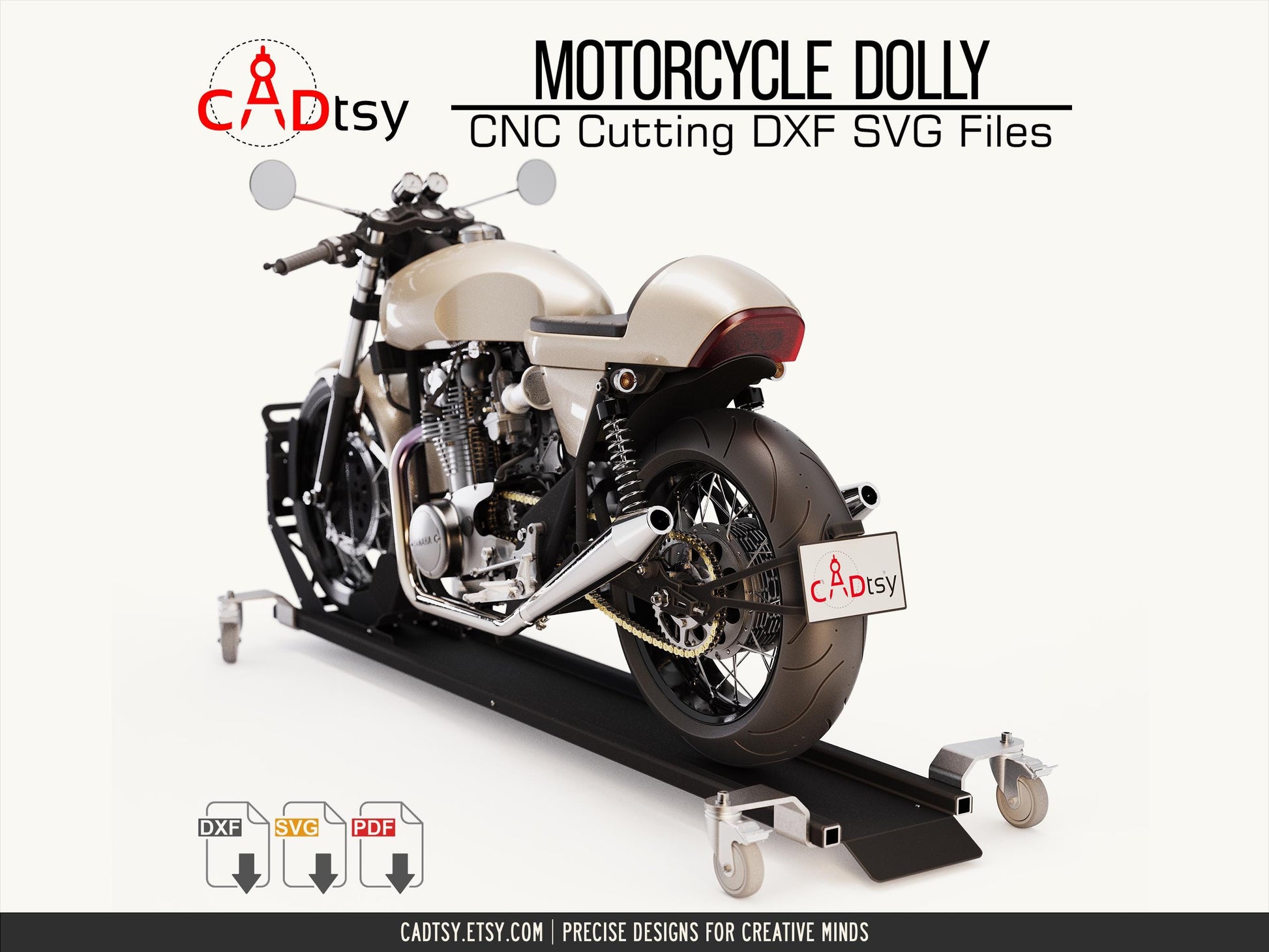

Adjustable front wheel chock and structural turntable platform for moving a motorcycle in tight garage or shop spaces.
Designed for CNC-cut steel parts, square structural tube, bending, welding, and hardware assembly.

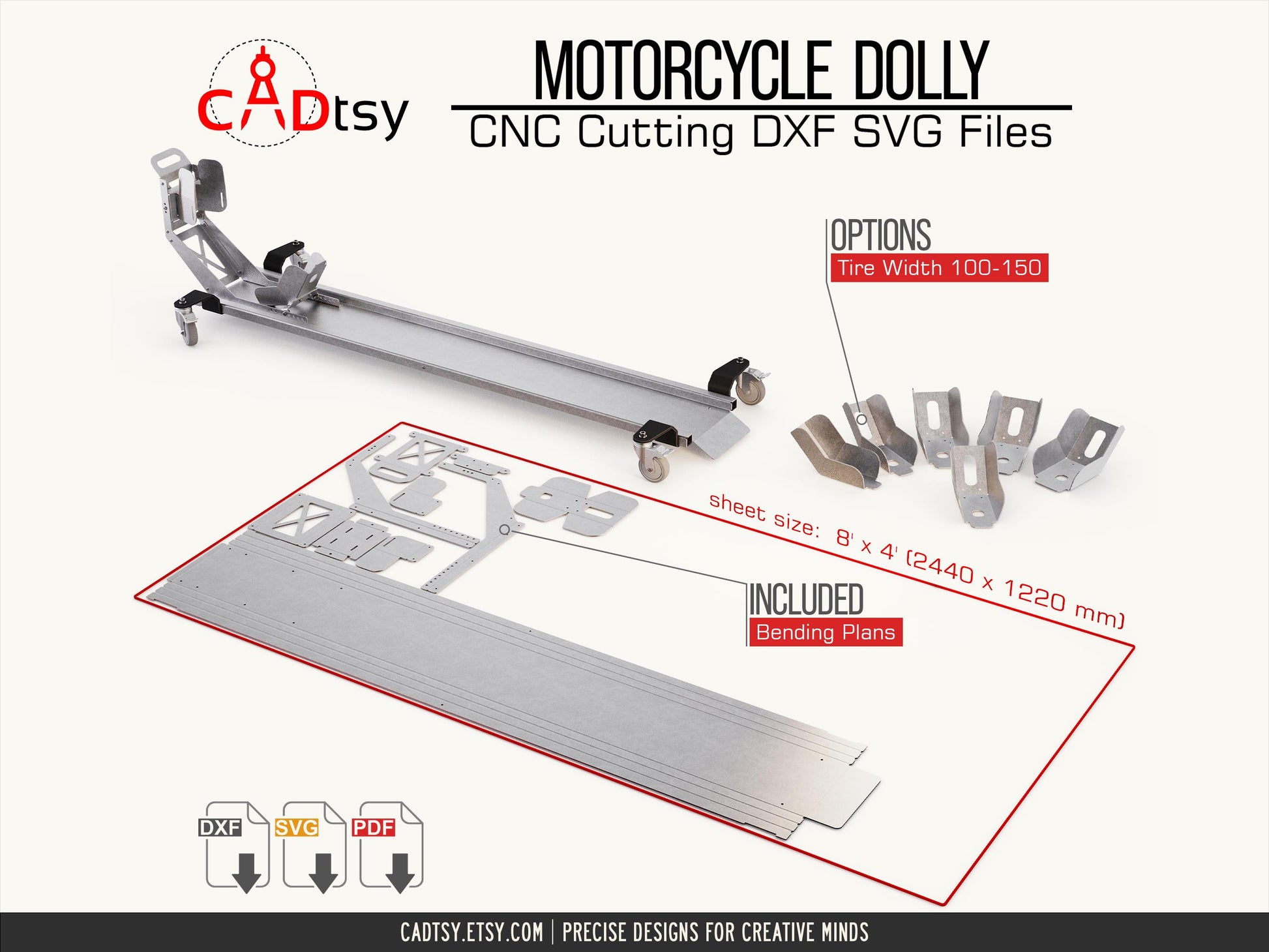

Slot cuts are included on bending lines to support accurate bending without requiring a brake press.

Finished Size

Approximate assembled height: 20.8 in / 530 mm.
Approximate assembled width: 26.0 in / 660 mm.
Approximate assembled length: 91.0 in / 2312 mm.

Recommended Materials

11 gauge / 3.0 mm sheet steel.
5/16 in / 8.0 mm steel plate.
30 x 30 mm square structural tube.
Heavy-duty casters and assembly hardware.

Before Cutting

CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
Verify kerf, bend approach, tube cuts, welding plan, caster/hardware rating, load requirements, material thickness, and machine settings before fabrication.
Confirm finished dolly strength, stability, rolling clearance, and motorcycle fit before use.
