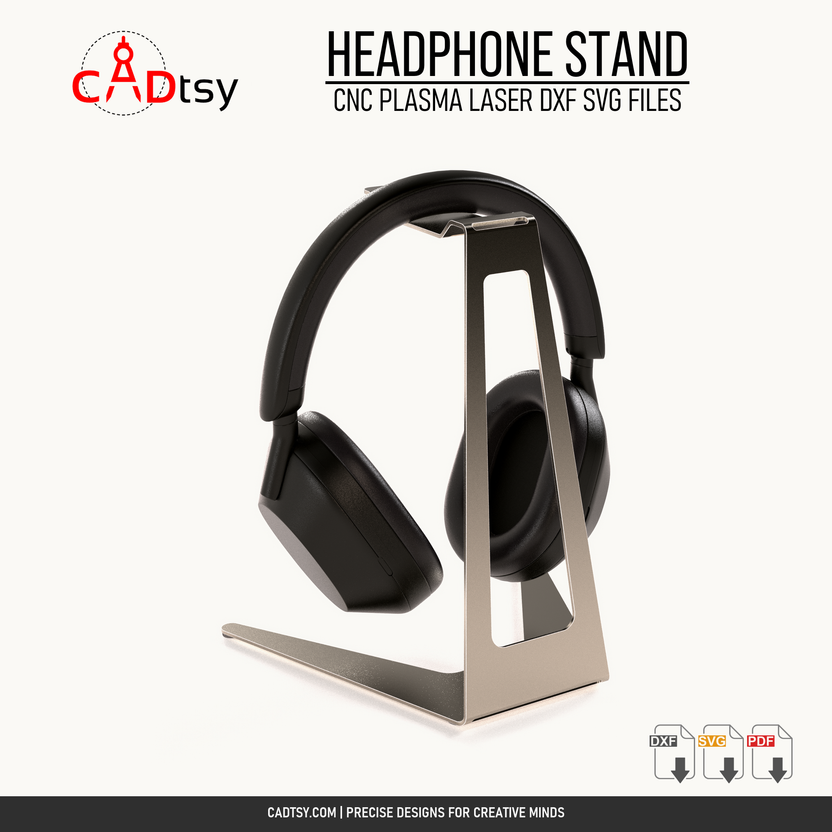

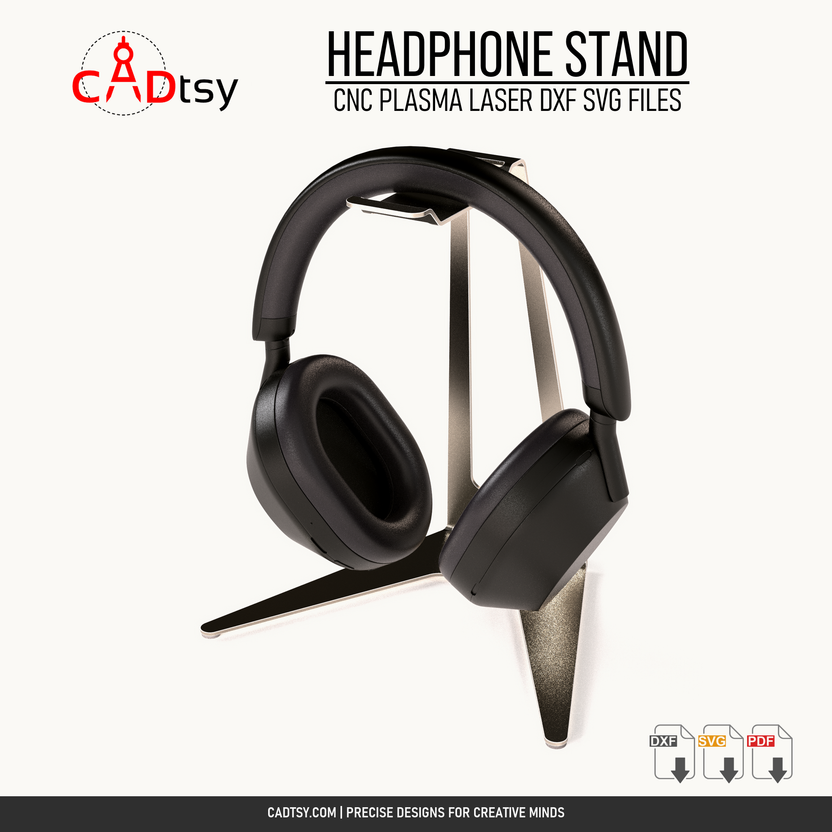

R2 metal headphone stand holding over-ear headphones

Metal Headphone Stand DXF/SVG - CNC Plasma/Laser Files

$5.66 USD

$5.66 USD $9.17 USD

Metal Headphone Stand DXF/SVG - CNC Plasma/Laser Files

Name: Metal Headphone Stand DXF/SVG - CNC Plasma/Laser Files
Brand: CADtsy
SKU: MT-ORG-STD-HST-001
Price: 5.66 USD
Availability: InStock

$5.66 USD

$5.66 USD $9.17 USD

Digital download. Quantity is limited to 1 license per design per order.

Multi-file savings: 8% off 3+ items, 16% off 5+, or 24% off 7+. Applied automatically in cart.

Digital download. No physical item or shipping required. Check the product description for the exact included files.

Download links are sent by email after checkout. See What You Get below for any additional PDF drawings or instructions.

Purchase grants a limited license; digital files may not be shared, resold, or redistributed. Review the CADtsy license terms.

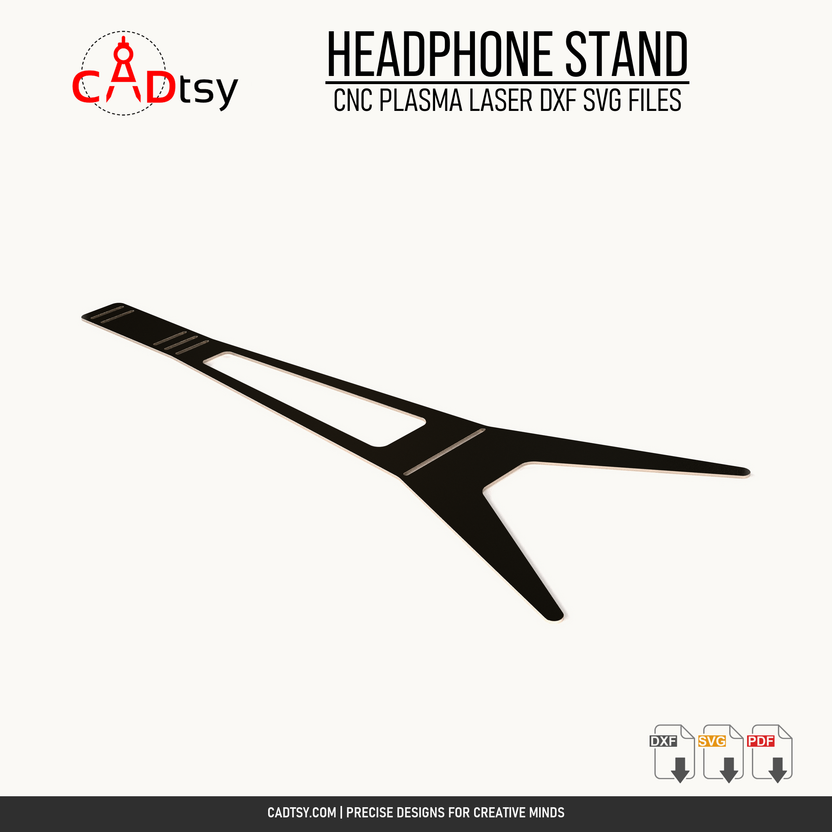

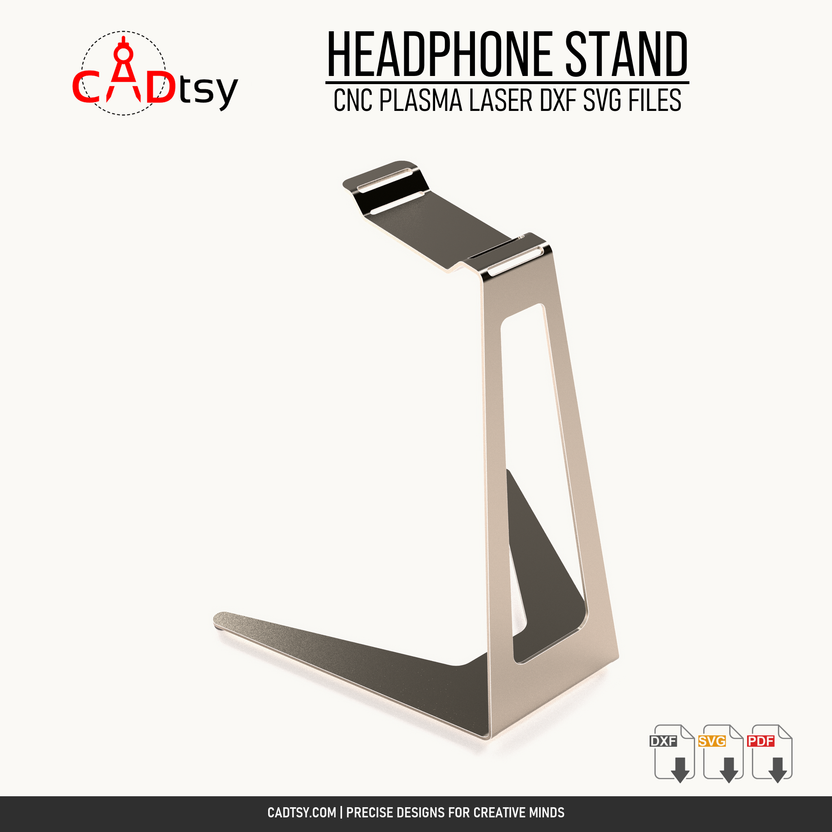

This digital download contains CNC-ready files for the newest R2 metal headphone stand. The design is cut from one piece of 2.0 mm steel sheet and formed using integrated elongated bend-assist slots. No physical product, steel, headphones, or hardware is shipped.

Included Files

DXF cut file
SVG cut file
PDF flat-pattern file
PDF bending and dimension drawing

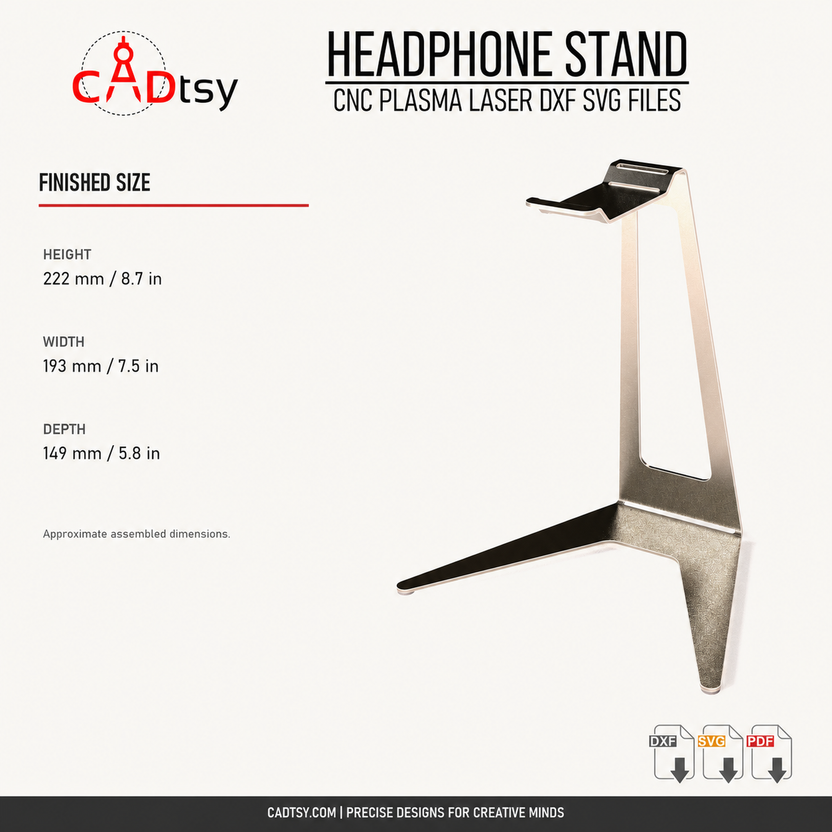

Verified R2 Specifications

Finished height: approximately 222.2 mm / 8.75 in
Finished width: approximately 193 mm / 7.60 in
Finished depth: approximately 149.45 mm / 5.88 in
Recommended material: 2.0 mm cold- or hot-rolled steel sheet, approximately 14 gauge
Bend radius: 3 mm
SVG job canvas: 203 x 480 mm / 7.99 x 18.90 in

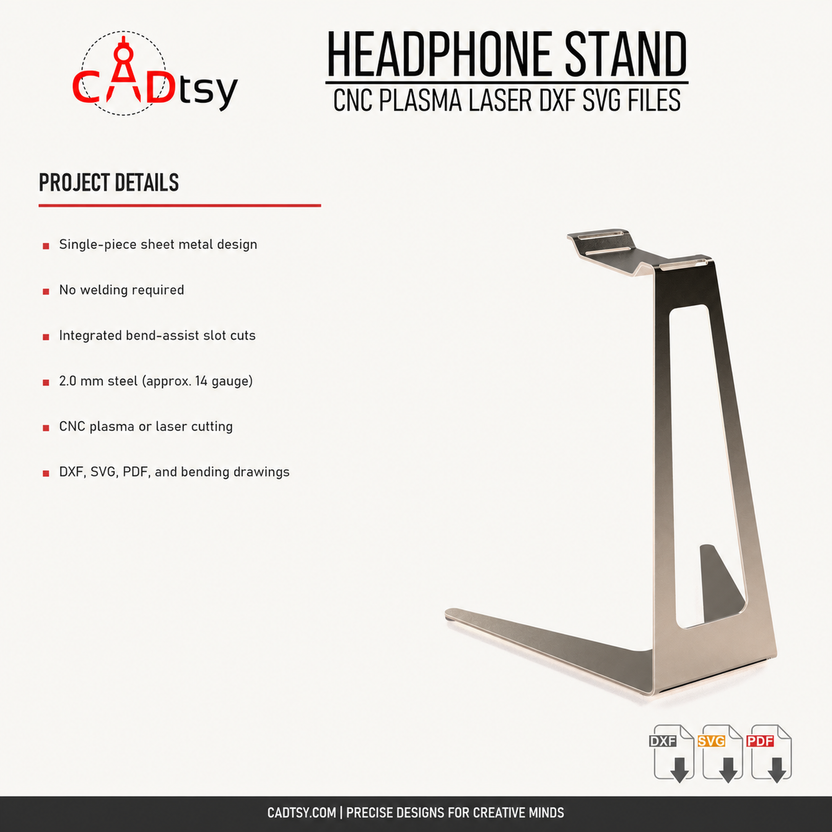

Fabrication

CNC plasma, laser, or waterjet cutting
Sheet-metal bending at the documented bend-assist slots
Deburring and edge finishing before use
No welding or separate assembly hardware required

CADtsy files are authored in millimeters. Confirm scale, kerf, bend setup, and material thickness before cutting. Finish every edge carefully to avoid damaging headphone padding or cables.

Digital files may not be resold, shared, uploaded, or redistributed.

• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.

CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.

Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.

Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.

• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
• Support: If you are unsure about a file or license question, contact CADtsy.
