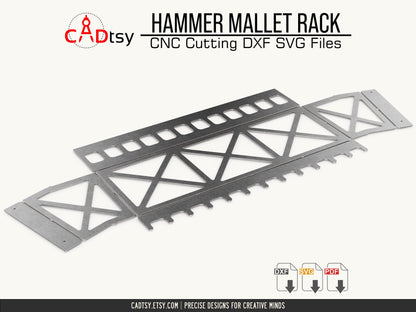

Hammer and Mallet Rack DXF files is a downloadable CNC-ready file package for building a wall-mounted hammer and mallet rack for workshop, garage, or fabrication shop storage. The rack is designed to hold up to 12 hammers or mallets and is approximately 7.6 in high, 19.7 in wide, and 6.2 in deep.
What You Get
- DXF, SVG, and PDF files for the hammer and mallet rack design.
- CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
- PDF drawings for sheet metal bending instructions.
- No physical organizer, steel, hardware, fasteners, tools, brand-name toolbox, or finished shop item is shipped.
Project Features
- Wall-mounted hammer and mallet organizer layout for clearing workbench space.
- Designed for CNC cutting and sheet metal bending from 13-16 gauge steel.
Finished Size
- Approximate assembled height: 7.6 in / 194 mm.
- Approximate assembled width: 19.7 in / 500 mm.
- Approximate assembled depth: 6.2 in / 158 mm.
- Designed capacity: up to 12 hammers or mallets.
Recommended Materials
- 13 gauge / 2.4-2.5 mm steel.
- 14 gauge / 2.0 mm steel.
- 16 gauge / 1.5 mm steel.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
- Verify kerf, hammer handle fit, mounting hole fit, material thickness, bend approach, and machine settings before fabrication.
- Confirm wall fasteners, mounting surface, edge finishing, and safe tool storage before use.
