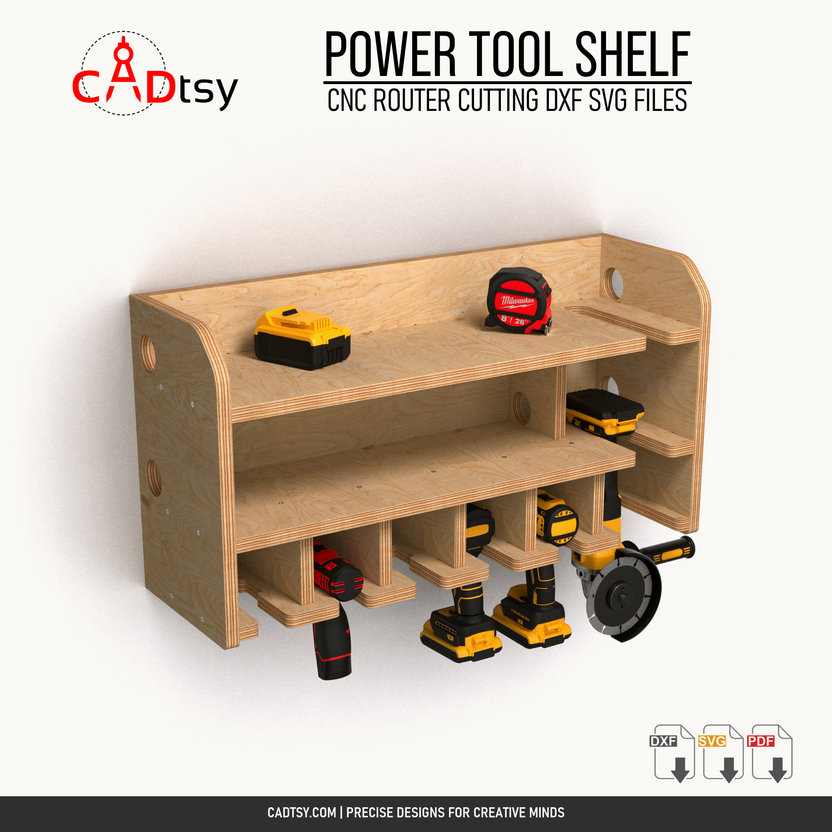

Customizable cordless power tool shelf designed for optimal organization, featuring specialized drill holders and storage compartments, available in DXF and SVG files for CNC router cutting, perfect for workshop or garage organization

Power Tool Shelf DXF / SVG - CNC Router Cutting Files

$8.00 USD
Sale price  $8.00 USD Regular price  $12.31 USD
Skip to product information
Customizable cordless power tool shelf designed for optimal organization, featuring specialized drill holders and storage compartments, available in DXF and SVG files for CNC router cutting, perfect for workshop or garage organization

Power Tool Shelf DXF / SVG - CNC Router Cutting Files

$8.00 USD
Sale price  $8.00 USD Regular price  $12.31 USD
Taxes included.

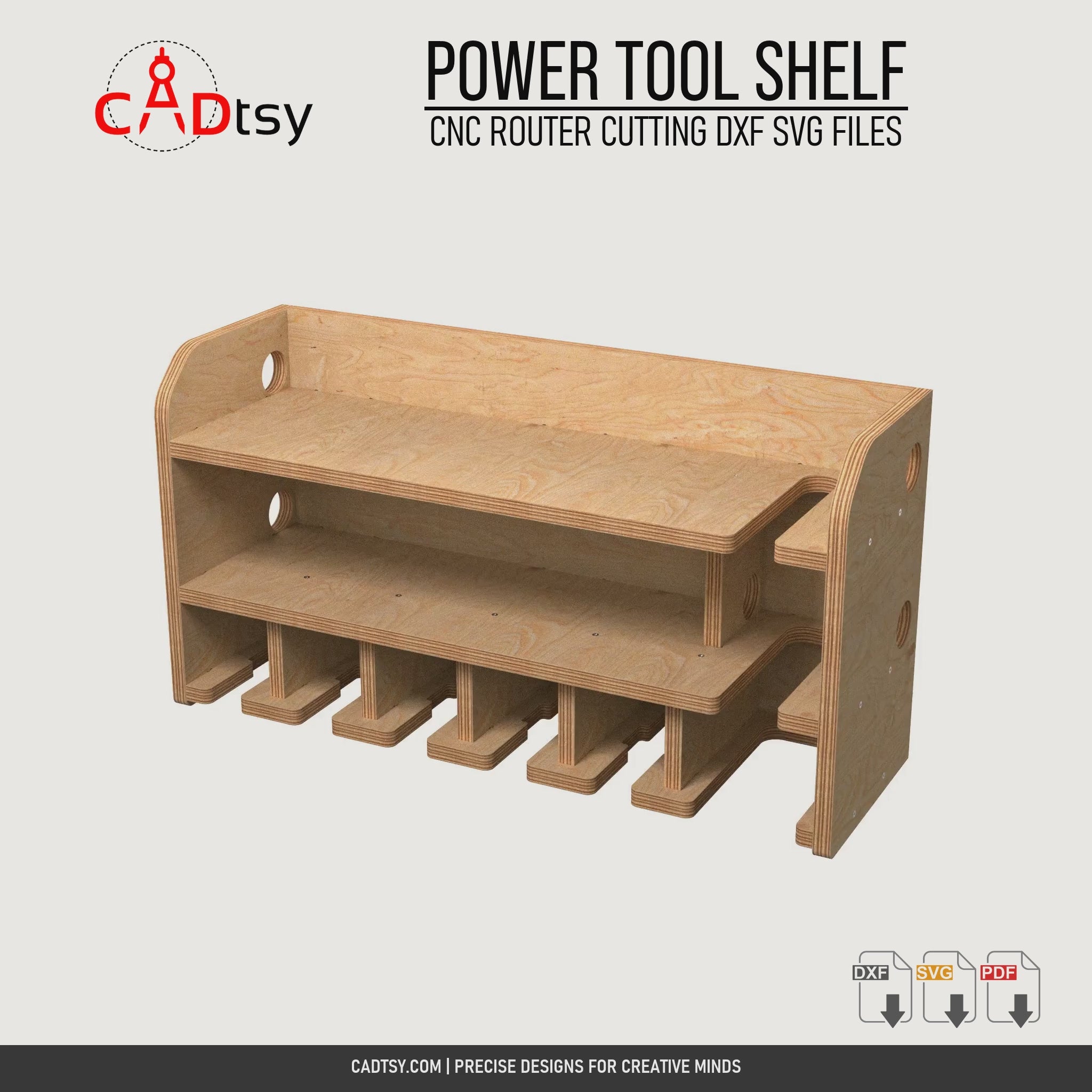

Cordless Power Tool Shelf DXF/SVG Files for CNC Router Cutting

Overview

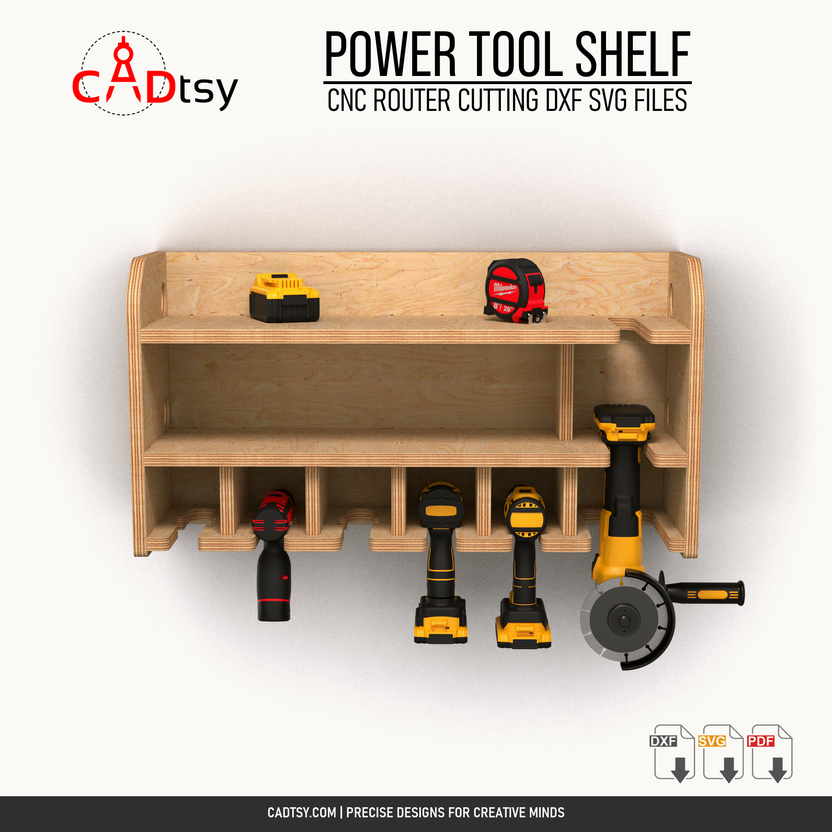

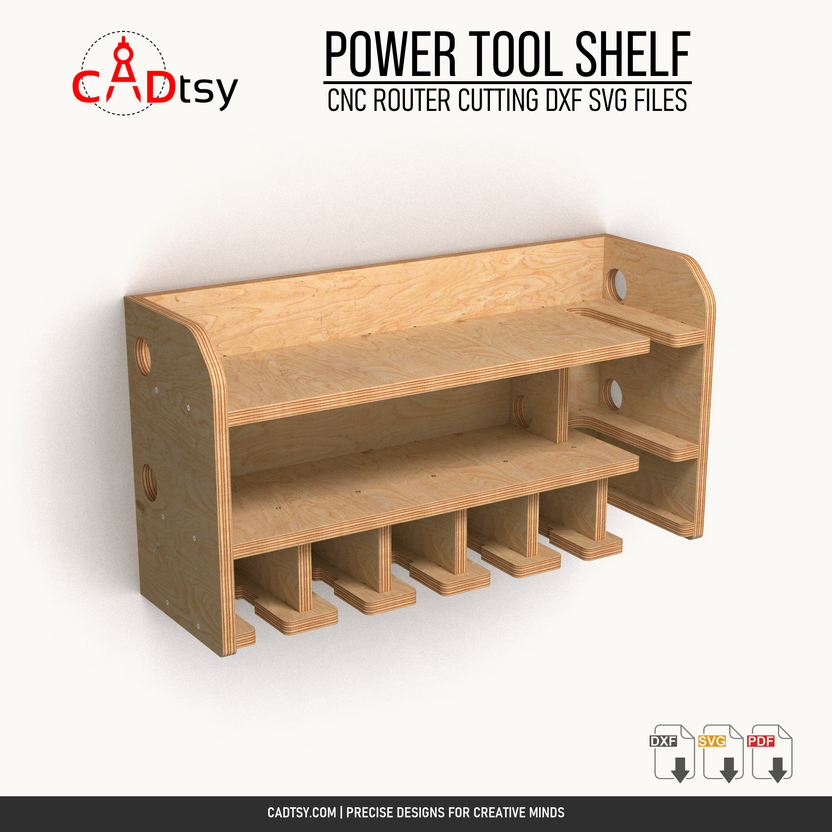

Revolutionize your workshop organization with our Cordless Power Tool Shelf, available in DXF and SVG files for CNC router cutting. Designed to optimize space and streamline tool storage, this shelf is perfect for arranging drills and other power tools in your garage or workshop. With an easy-to-follow pattern, achieve a neat and efficient storage solution that enhances your workspace functionality.

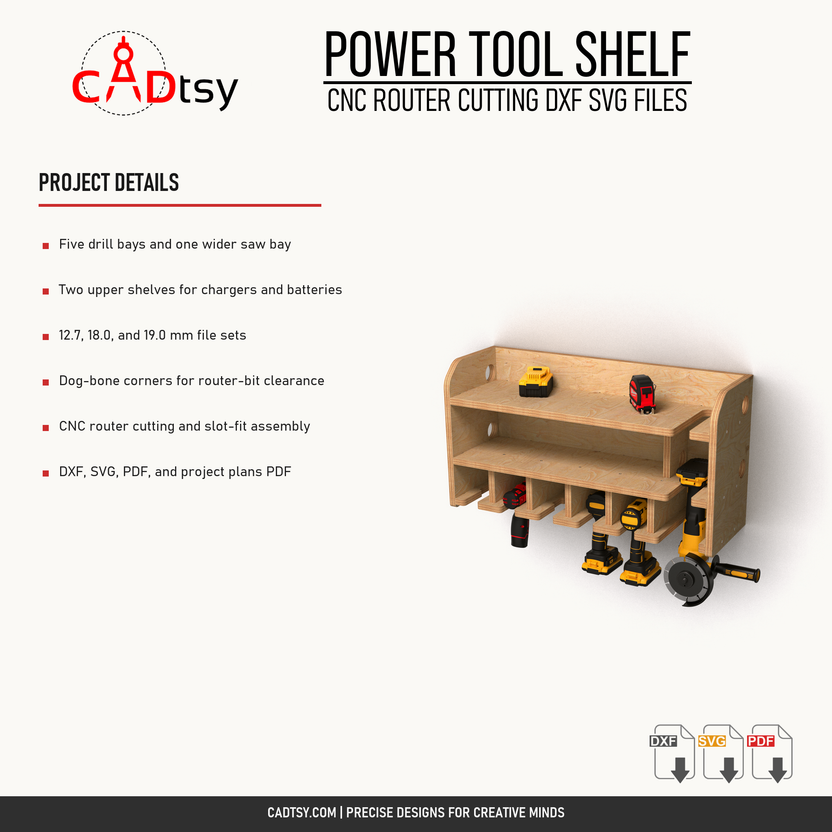

Key Features:

✔️ Material Compatibility

  • 3/4 inches (19 mm) plywood/MDF/particle board/OSB
  • 23/32 inches (18 mm) plywood/MDF/particle board/OSB

✔️ Cutting and Assembly

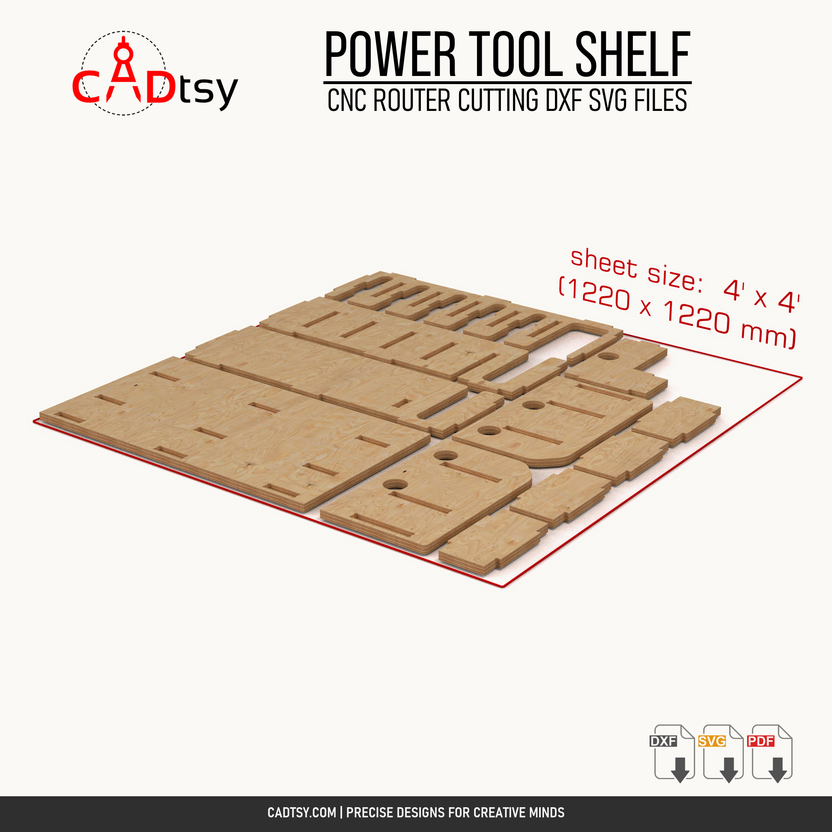

  • CNC Router Cutting (corners are designed for routing tools up to ø 8 mm (5/16")

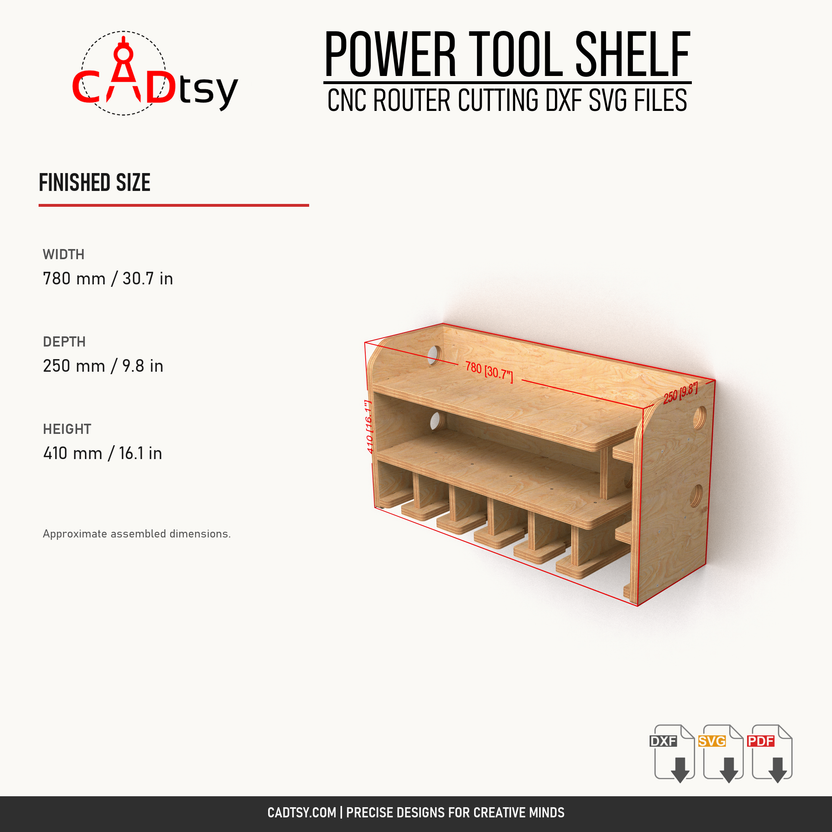

✔️ Product Dimensions:

  • Height: 16.1 inches (410 mm)
  • Depth: 9.8 inches (250 mm)
  • Length: 30.7 inches (780 mm)

✔️ File Formats Included:

  • DXF
  • SVG
  • PDF

Important Information:

⚠️ Please Note: This product is offered as a digital download only. No physical item will be delivered.



⚠️ Important Information

Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
Email Delivery: After checkout, you will receive an automated email containing your download links.
File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.

⚠️ Legal Information

All digital designs, blueprints, templates, and cutting files (including DXF, SVG, and PDF formats) presented on this platform are safeguarded by the Federal Copyright Act and international intellectual property laws. CADtsy maintains full title, copyright, and ownership of these unique creations.

Any unauthorized use, reproduction, or distribution of these files, whether in whole or in part, is expressly prohibited without prior written consent from CADtsy.

Limited License Terms

Purchasing a digital design from this platform grants the buyer a limited, non-exclusive, non-transferable license for personal use under the following terms:

✔️ Permitted Use:
• The construction of a single (1) physical item per file purchase.

✔️ Prohibited Use:
• Reproduction or manufacturing of this design for commercial purposes, mass production, or resale of the physical product is strictly prohibited.
• Sharing, reselling, renting, or distributing the digital files (DXF, SVG, PDF, etc.) in any format is strictly prohibited.

Note: This license does not transfer any copyright or ownership interests to the buyer, except for the specific purpose of a single personal build. For commercial manufacturing rights or production licensing, please contact CADtsy directly to arrange a commercial licensing agreement.

⚠️ Technical Support & Scaling

Unit System: All designs are created in millimeters (mm).
Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
